Type 3 - Regular Key - Directed VW02 Firmware Specific Manual

Type 3 - Regular Key

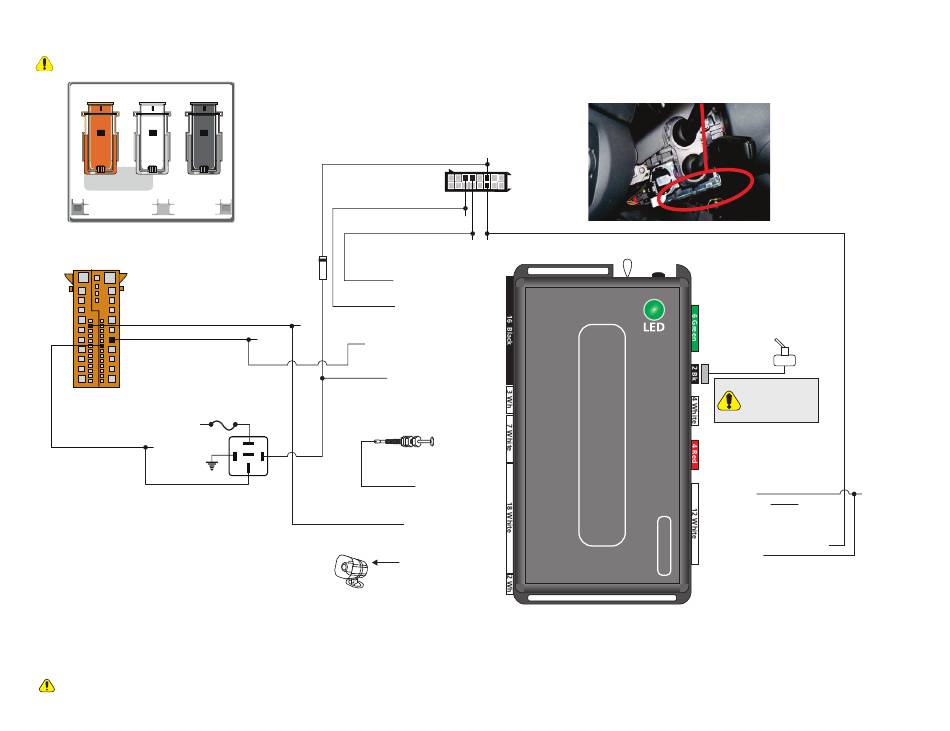

Refer to "Vehicle wiring reference charts" on page 23 for more information on vehicle-specific connections.
C B A
VESCM - Driver side under dashboard
42 25 1
28
29 12
(-) Clutch: pin 30
[4],[5]
(-) Hazards: Brown/Red, pin 7
(connect this wire only if turn
signals don't work on CAN)
52 41 24 11
C plug (Brown)
at VESCM
Fuse 5A
(+) 12V
(+) Brake: Black/Red, pin 17
Note: Connect only on vehicle
where brake needs to be
depressed to start.
The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin.
[1]
The siren is only compatible with Directed Digital Hybrid Systems.
[2]
For Key Wrap instructions refer to pages 7-10.
[3]
For manual transmission vehicles only.
[4]
For wire colors, refer to the Vehicle Wiring Reference Chart on page 23.
[5]
With the exception of the OBDII diagnostic connector, all connectors are displayed from the wire side (unless specified otherwise).
13
FT CAN Low: Orange/Brown, pin 3
FT CAN High: Orange/Green, pin 4
FT CAN High: Orange/Green: 7
FT CAN Low: Orange/Brown: 8
(-) Hazards SW Output: Green/Black: 10
(+) Starter Output: Green/Red: 14
87
86 85
Hood Pin
87a
30
[4]
(+) Siren Output: Brown: 17
[2]
Siren
(+) Starter: pin 6
[5]
1 8
6
9 14 16
(+) Ignition:
Black, pin 14
Manual/Auto. Transmission Type
Manual/Auto. Transmission Type
(-) Hood Input: Gray: 3
[1]
Clutch Output: Dk.Blue: 7
Steering Column Control Unit
Prog.
Prog.
Button
Button
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
10: Red: (+) 12V
9: Black: (-) Ground (-) Ground
5: Orange/Red: Key Wrap
[3]
4: Yellow/Red: Key Wrap
[3]
3: Brown/Red: Key Wrap
[3]
2: White/Brown: (+) Ignition Output
1: White: (+) 12V
© 2016 Directed. All rights reserved.
(+) 12V
Directed Digital System VW02
