Module programming

Refer to "LED diagnostics and troubleshooting" on page 28 for more information and for troubleshooting
purposes.

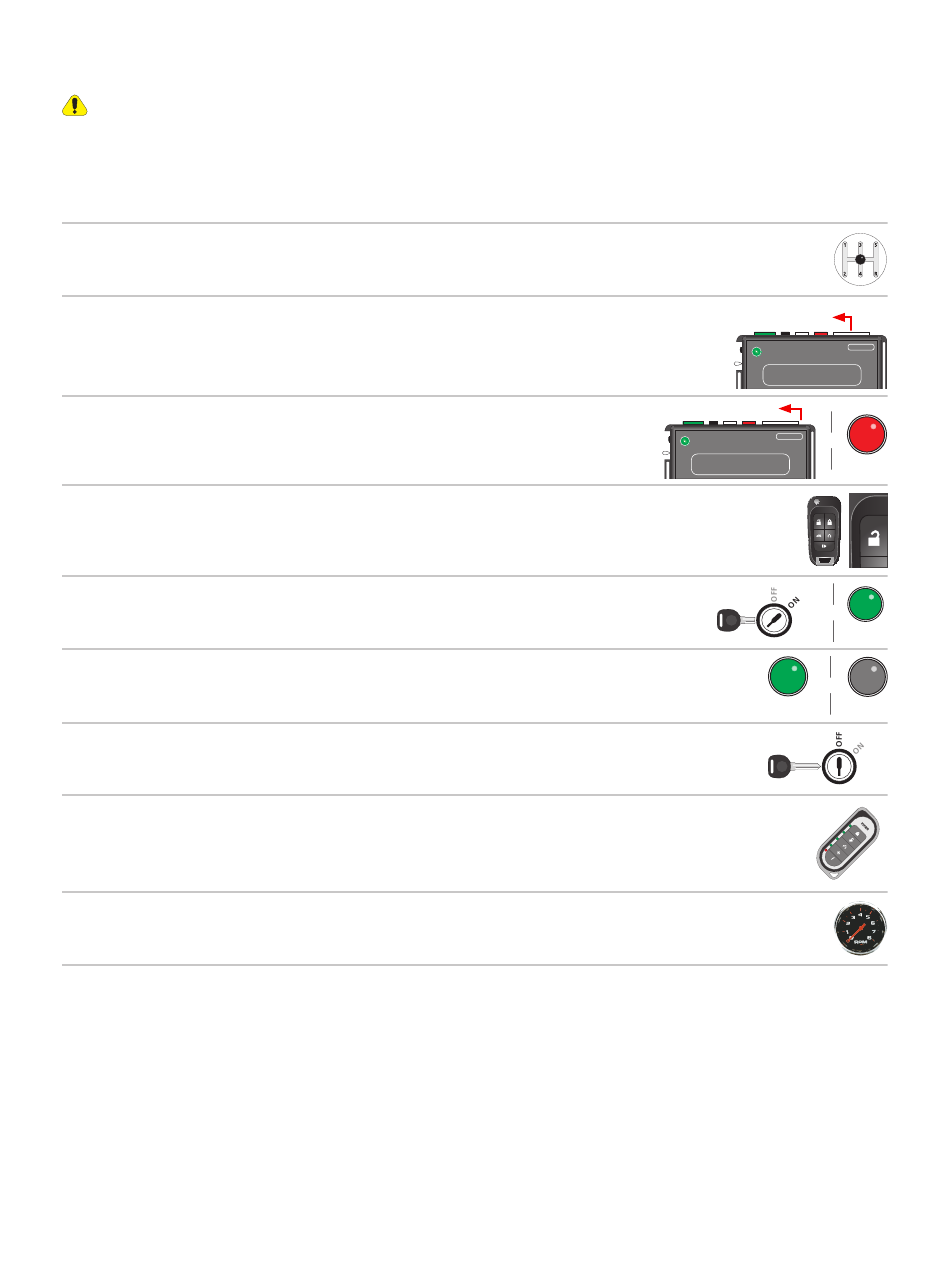

To connect the module:
Key type
Please ensure that the vehicle is in a safe location and cannot move
1
forward during programming. For vehicles equipped with a manual
transmission, make sure the gearshift lever is in the neutral position.
Connect all the harnesses to the Directed Digital System, EXCEPT the
2
white12-pin main power harness.
Connect the white12-pin main power harness, and wait until the LED turns
3
ON solid red.
4
Press the Unlock button on the OEM remote.
5
Turn the ignition ON. The LED flashes green.
6
The green LED turns ON for 3 seconds and shuts OFF.
7
Turn vehicle ignition OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific
remote, please refer to its corresponding owner documentation, which
8
can be found inside the product packaging of the complete system or on
www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For
9
instructions on how to program tach, refer to the Analog Installation
Guide, which can be found on www.directechs.com.
* Your aftermarket remote may differ from the model shown in the illustrations.
26
Key OUT Key IN
START
Connect all but the
white 12-pin harness
Must be connected LAST
&
Key IN Key IN
&
START START
Flashes
&
Solid x3 secs
Key OUT
Pair
remotes*
Initialize
tachometer
Directed Digital System VW02
