Type 4 - Regular Key - Directed VW02 Firmware Specific Manual

Type 4 - Regular Key

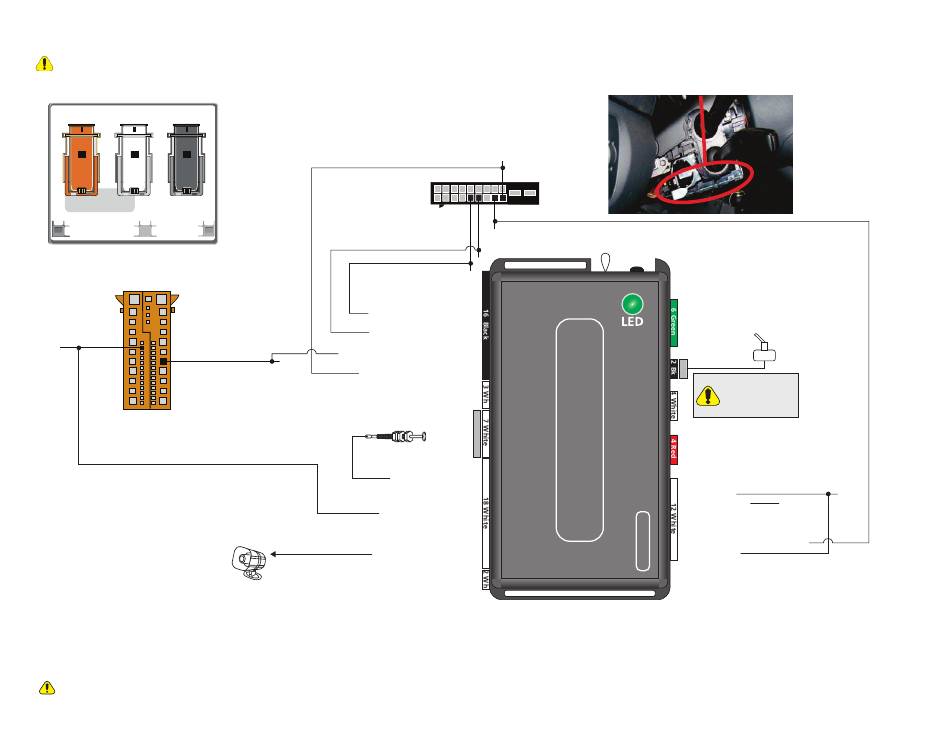

Refer to "Vehicle wiring reference charts" on page 23 for more information on vehicle-specific connections.
C B A
VESCM - Driver side under dashboard
42 25 1
For Audi R8, see
Alternate connection
on the next page
(-) Clutch:
[4]
Violet/Black, 28
29 12
pin 30
(-) Hazards:
Brown/Red or Blue/Red, pin 7
(connect this wire only if turn
signals don't work on CAN)
52 41 24 11
C plug (Brown)
at VESCM
The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin.
[1]
The siren is only compatible with Directed Digital Hybrid Systems..
[2]
For Key Wrap instructions refer to pages 7-10.
[3]
For manual transmission vehicle only.
[4]
For wire colors, refer to the Vehicle Wiring Reference Chart on page 23.
[5]
With the exception of the OBDII diagnostic connector, all connectors are displayed from the wire side (unless specified otherwise).
14
FT CAN High: Orange/Green: 7
FT CAN Low: Orange/Brown: 8
(-) Hazards SW Output: Green/Black: 10
(+) Starter Output: Green/Red: 14
Hood Pin
(-) Hood Input: Gray: 3
[1]
Clutch Output: Dk.Blue: 7
[4]
(+) Siren Output: Brown: 17
[2]
Siren
(+) Starter: Red/Black
or Black/Gray, pin 18
1
20
10 17
(+) Ignition: pin 17
[5]
FT CAN High:
Orange/Green,
pin 14 FT CAN Low: Orange/Brown, pin 15
Manual/Auto. Transmission Type
Manual/Auto. Transmission Type
Steering Column Control Unit
Prog.
Prog.
Button
Button
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
10: Red: (+) 12V
9: Black: (-) Ground (-) Ground
5: Orange/Red: Key Wrap
[3]
4: Yellow/Red: Key Wrap
[3]
3: Brown/Red: Key Wrap
[3]
2: White/Brown: (+) Ignition Output
1: White: (+) 12V
© 2016 Directed. All rights reserved.
(+) 12V
Directed Digital System VW02
