Type 5 - Directed DS4+ Installation Manual

Type 5

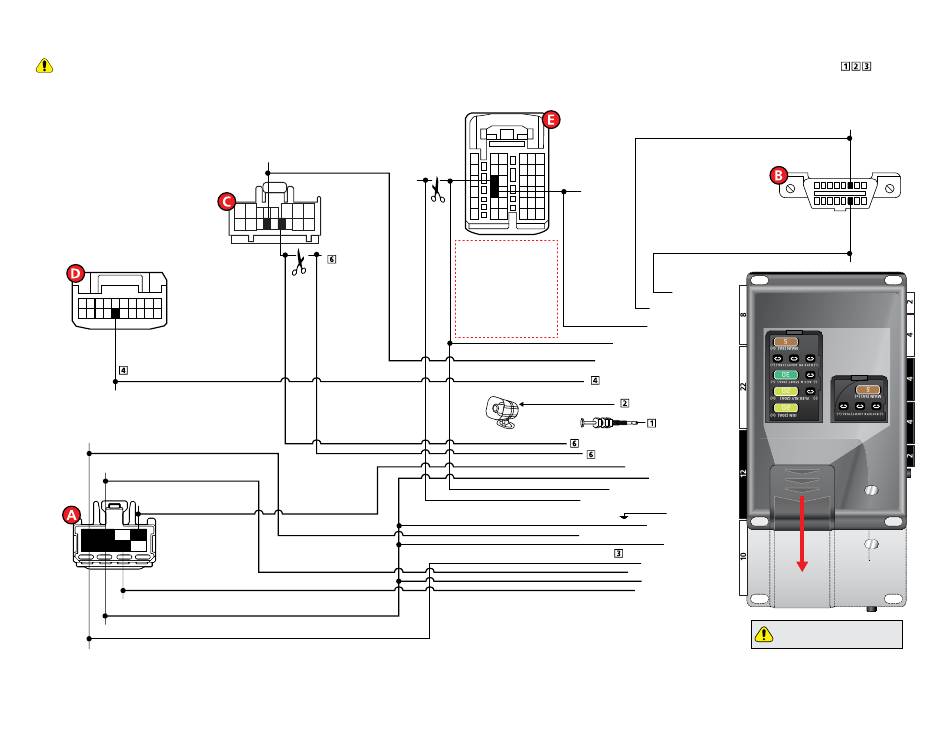

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
Security Light
(White conn. A/C connector assembly)
1 2 3 4 5 6 7 8 9 10
15
11 12 13 14 16 17 18 19 20
Security Light: Violet/White, pin 15
(+) Ignition 2: Blue/Yellow, pin 4
(+) Accessory: White/Green, pin 3
(+) Starter 2: Black/White, pin 1
Ignition Switch
4 3 2 1
(White conn. at
8 7 6 5
ignition switch)
(+) Ignition 1: Black/Red, pin 6
(+)12V: Blue/Black, pin 7
(+) Starter 1: Green/Black, pin 8
19
Headlight Switch
(White conn. at headlight switch)
(-) Parking Light: Green, pin 14
Blue/Yellow, pin 14
8 7 6 3 2 1
5 4
17 16 10 9
1514131211
(-) Autolights:
Blue, pin 12
CUT
Junction Connector
(White conn. behind glove box)
1 2 3 4 5 6
IMI:
7 8 9 10 1112
IMO: Blue/Orange,
13 1415 161718
pin 20
19 20 21 222324
25 2627 28 29 30
CUT
31 3233 34 35 36
If the module programs,
but the vehicle starts
and stops following a
remote start command,
reverse the IMI wires.
The Yellow/Black and
Lt.Green wires need to
be on the ECM side.
(-) Parking Light Output: Lt.Green/Black: 1
(-) Security Light Output: Brown/White: 6
Hood Pin
Siren
Autolights Interrupt (conn. side): Blue/White: 1
Autolights Interrupt (vehicle side): Blue: 3
IMI Interrupt (vehicle side): Lt.Green/White: 9
(+) Ignition 2/ Flex Relay Output: Pink/White: 4
Diagnostic Connector OBDII
(connector side view)
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
IMO Data: Orange/Black: 7
IMI Data (conn. side): Yellow/Black: 8
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
(+) Starter 2 Output: White: 5&11
(+) 12V Input: Red: 6&12
IMI Interrupt (conn. side): Lt.Green: 8
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) 12V Input: Red: 5
Starter Input (Key side) : Green: 6
(+) Starter Output : Violet: 7
(+) Accessory Output: Orange: 8
Slide
(+) 12V Input: Red/White: 9
to open
(+) Ignition 1 Output: Pink: 10
It is important to check that the
fuses are positioned correctly.
