Directed DS4+ Installation Manual page 14

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Toyota Avalon (Smart Key) 2010
12V Black
CAN H Pink
CAN L White
IMO Green
IMI Tan
Parking Lights Blue
Autolights Orange
Ignition 1 Yellow
Ignition 2 Lt. Green
Accessory Red
Starter 1 Black
Starter 2 Lt. Blue
Lock Black
Unlock Gray
Trunk Release Blue
14
Pin Polarity Location
1 (+) Dash Fuse box.
6 Data Diagnostic Connector OBDII.
14 Data Diagnostic Connector OBDII.
10 Data Behind Glove Box.
11 Data Behind Glove Box.
18 (-) Headlight Switch.
19 (-) Headlight Switch.
35 (+) Power Source Control ECU behind glove box.
34 (+) Power Source Control ECU behind glove box.
11 (+) Power Source Control ECU behind glove box.
17 (+) Power Source Control ECU behind glove box.
15 (+) Power Source Control ECU behind glove box.
9 (-) Driver Kick Panel.
19 (-) Driver Kick Panel.
5 (-) Trunk Release Switch.

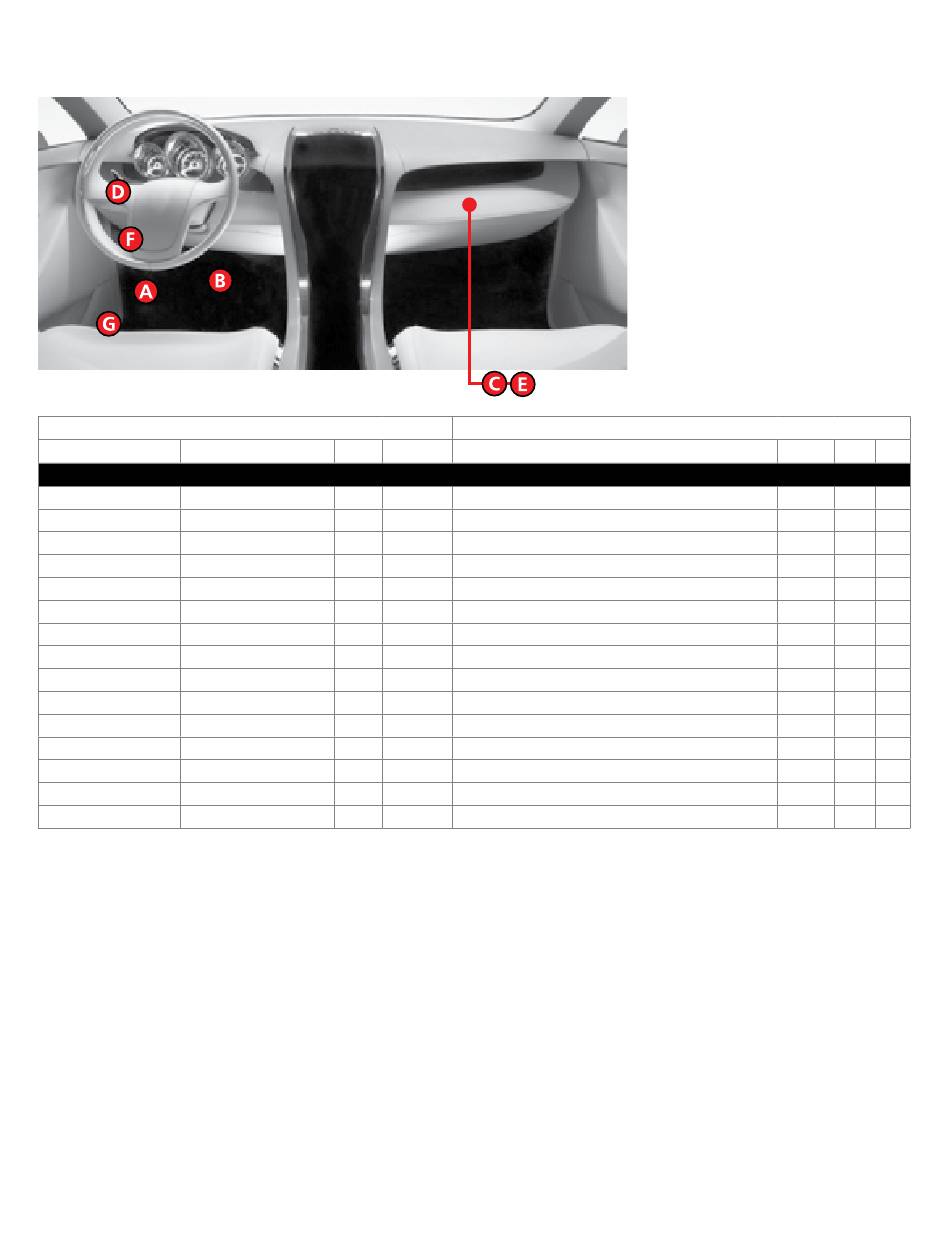

Connector Information
Color
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
© 2017-09-25 Directed. All rights reserved.
Pins Ref.
1 A
16 B
16 B
18 C
18 C
20 D
20 D
40 E
40 E
40 E
40 E
40 E
20 F
20 F
6 G
DS4+ TL4
