D2D port configuration

The system will automatically configure the D2D ports based on your selections in the module programming. The white D2D port is
reserved for SmartStart. To ensure proper functionality with SmartStart, it is important that it is selected in the system programming
of the DirectLink application or via the online web tool.
Note: Both black D2D ports are reserved for the Control Center (antenna) and 8504D Combo Sensor.

Module programming

Refer to "LED diagnostics and troubleshooting" on page 25 for more information and for troubleshooting purposes.

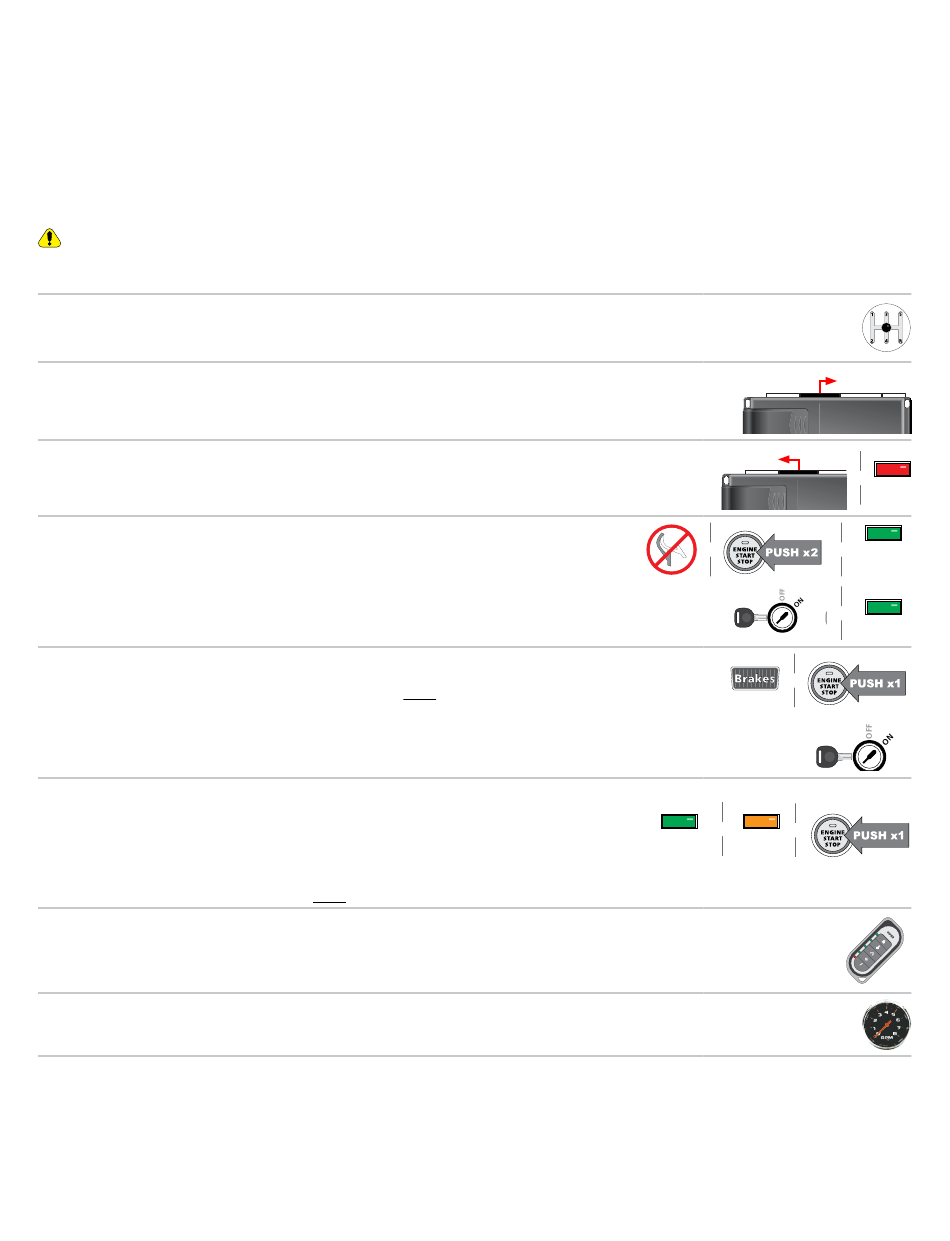

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
For Push-To-Start vehicles:
With the key inside the vehicle, push the Push-To-Start button 2 times without applying
brakes to turn ignition ON.
4
For regular key vehicles:
Enter the vehicle and turn the key into ON position.The LED flashes green.
For Push-To-Start vehicles:
Apply brakes and press the Push-To-Start button once to start the car.
5
For regular key vehicles:
Start vehicle with the key.
The LED will turn ON solid for 3 seconds:
Orange: Bypass successfully programmed WITHOUT statuses.
6
Green: Bypass successfully programmed WITH statuses.
Then press the Push-To-Start button once to shut down the vehicle.
Pair remotes (if applicable). For information on how to pair a specific remote, please
7
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
8
program tach, see page 28.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
24
Must be
connected LAST
&
Key OUT
Key IN
START
START
Key OUT
Key IN
START
OR
Solid x 3 secs
Connect all but the
12-pin harness
&
Solid
&
Flashes Green
Key IN
Key IN
&
START
START
Flashes Green
&
Key IN
START
START
&
Flashes
Slowly x 3
secs
Pair
remotes*
Initialize
tachometer
DS4+ TL4
© 2017-09-25 Directed. All rights reserved.
Key IN
