Directed DS4+ Installation Manual page 12

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Scion tC (Smart Key) 2011-2012
12V White
CAN H Lt. Green
CAN L White
Security Light Gray
Parking Lights Violet
Starter White
Ignition 1 Red
Ignition 2 Gray
Accessory Black
IMO Tan
IMI Green
Lock Blue
Unlock Green
Trunk Release Gray
12
Pin Polarity Location
1 (+) Dash Fuse Box, connector (2G).
6 Data OBDII.
14 Data OBDII.
11 (+) Clock Assembly.
18 (-) Headlight Switch.
3 (+) Power Source Control ECU behind glove box.
5 (+) Dash Fuse Box, connector (2B).
26 (+) Dash Fuse Box, connector (2C).
25 (+) Dash Fuse Box, connector (2C).
10 Data ECM next to underhood fuse box.
11 Data ECM next to underhood fuse box.
11 (-) Driver Kick Panel.
12 (-) Driver Kick Panel.
22 (-) Driver Kick Panel.

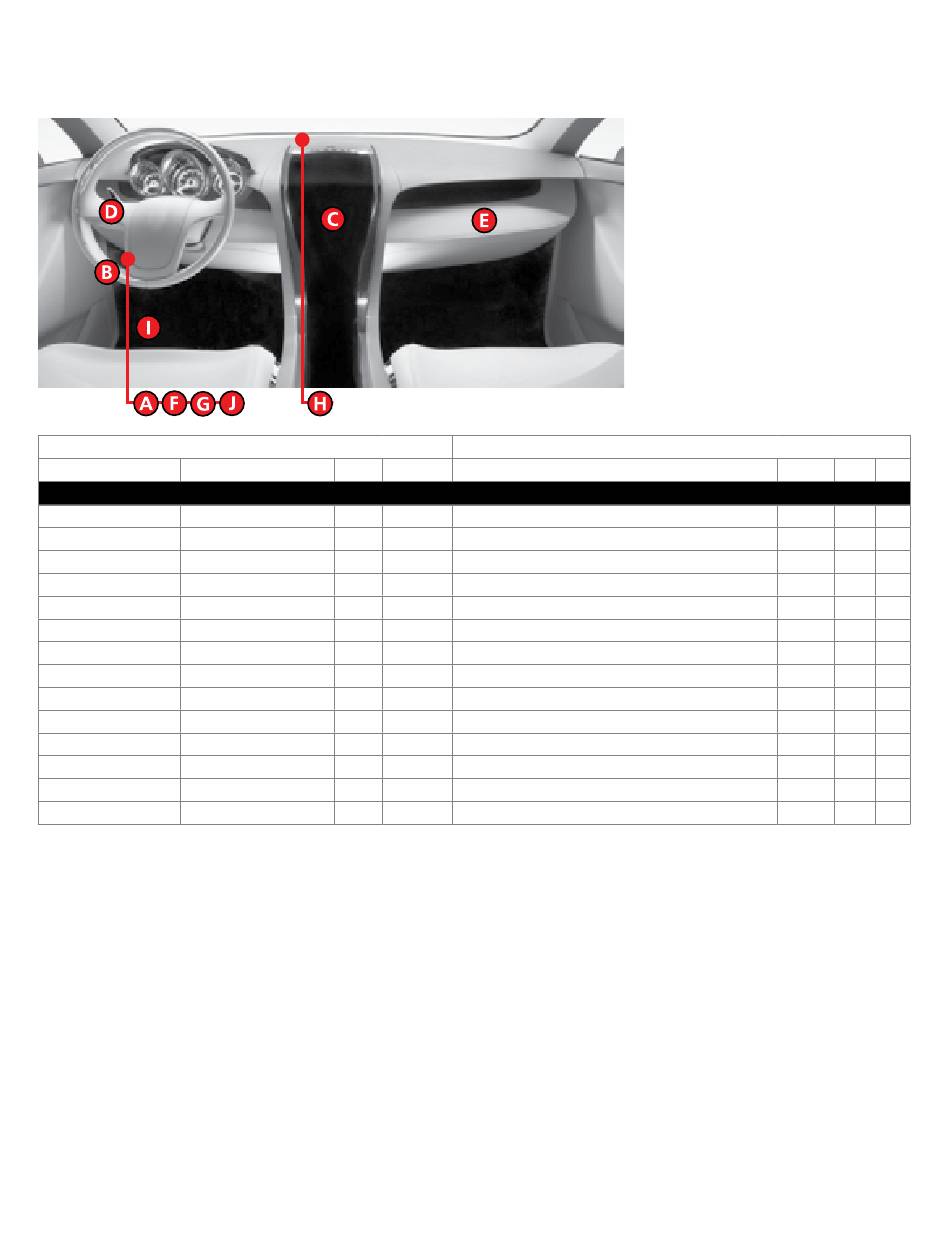

Connector Information
Color
White
White
White
White
White
Gray
White
White
White
Black
Black
Blue
Blue
White
