1.4.2 Mechanical parts

For easier explanation we show mechanical parts for 1, 2 and 3 modules.
In one column are max 3 modules. The big set contents max 3 columns
(9 modules). For even bigger sets you can put 9 modules set over or next each
other.

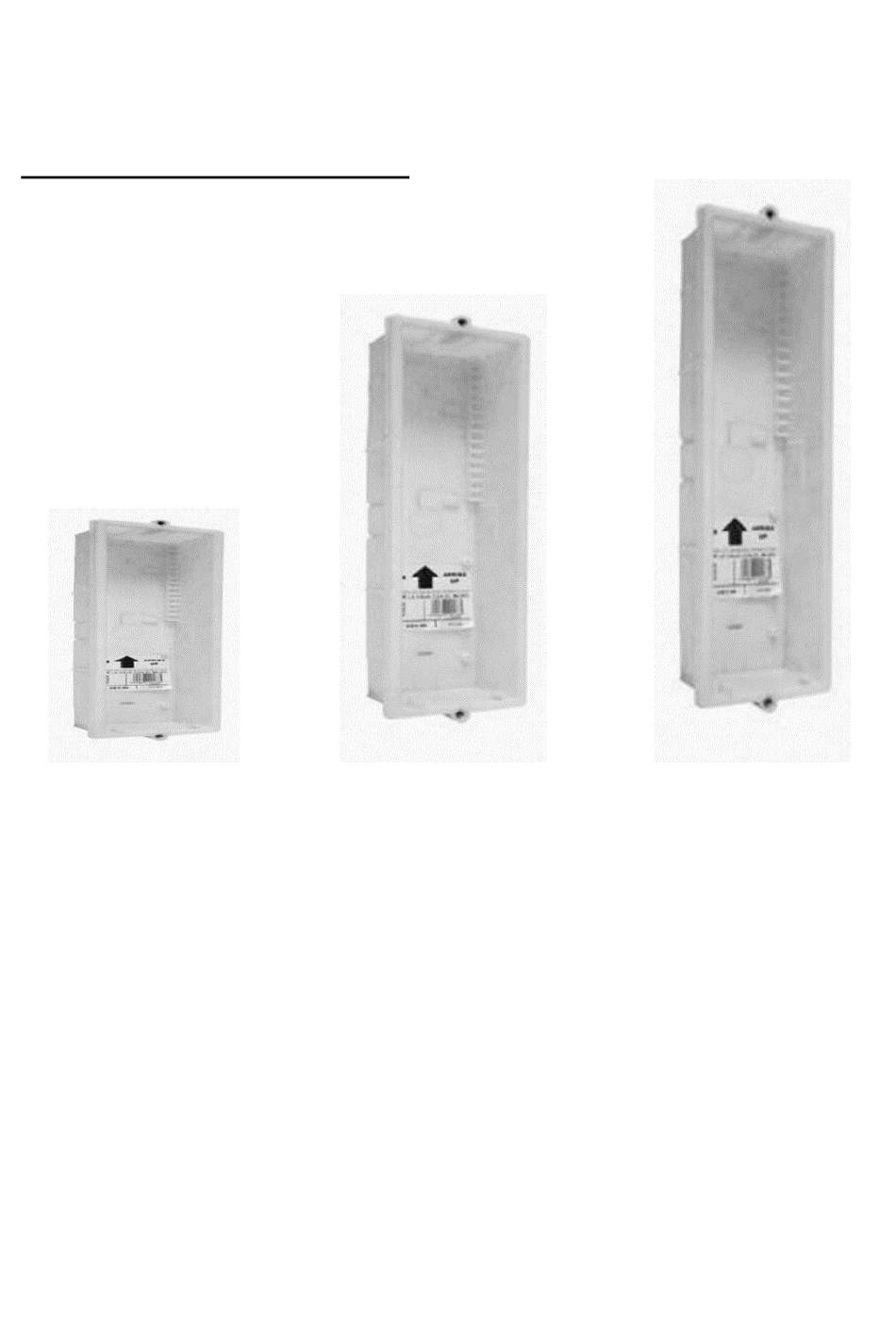

Mounting box for flush mounting:
Mounting box-1 Mounting box-2
A-VarioBell – User and service manual
Mounting box-3
