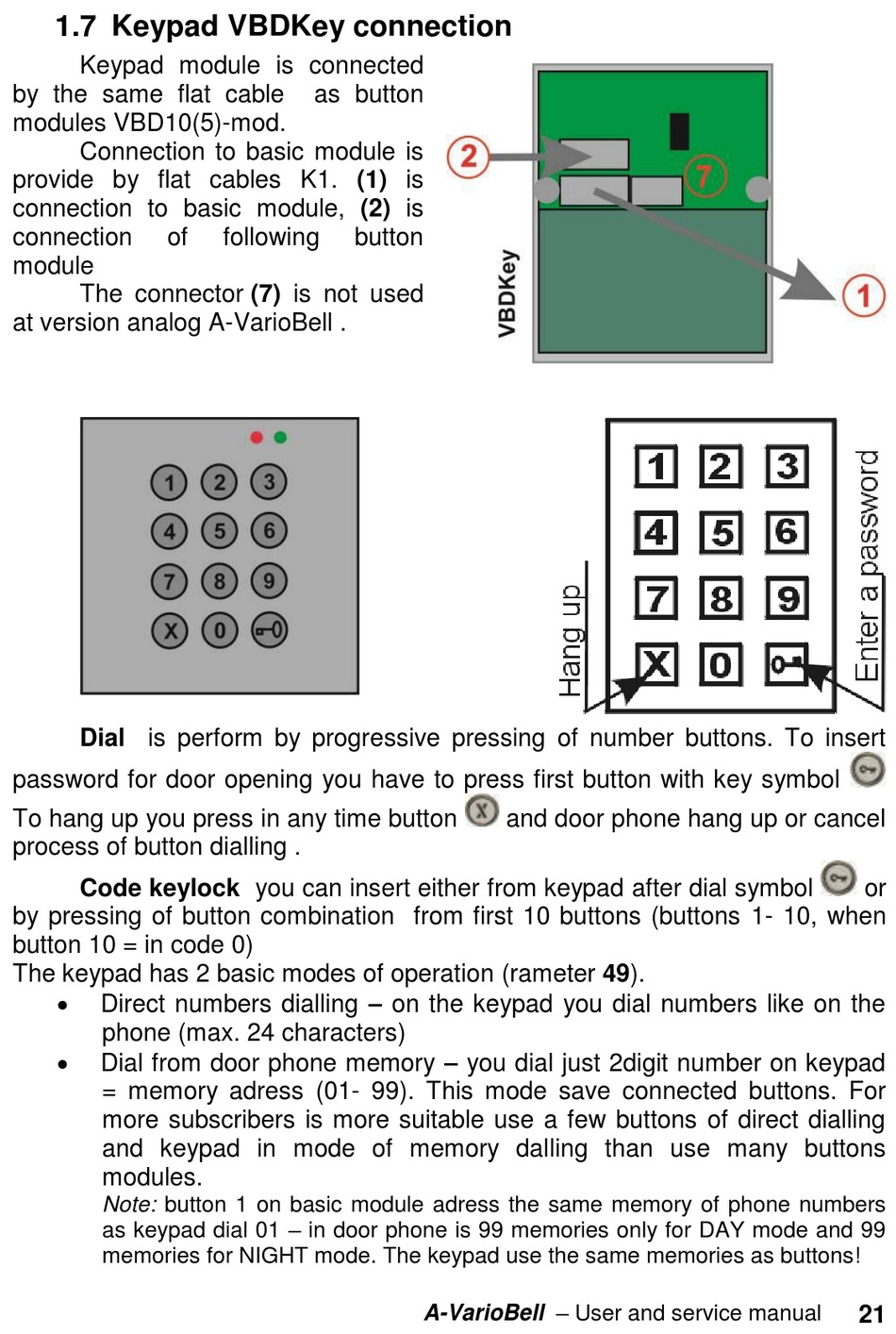

1.7 Keypad VBDKey connection

Keypad module is connected
by the same flat cable
modules VBD10(5)-mod.
Connection to basic module is
provide by flat cables K1. (1) is
connection to basic module, (2) is
connection of
module
The connector (7) is not used
at version analog A-VarioBell .
Dial is perform by progressive pressing of number buttons. To insert
password for door opening you have to press first button with key symbol
To hang up you press in any time button
process of button dialling .
Code keylock you can insert either from keypad after dial symbol
by pressing of button combination from first 10 buttons (buttons 1- 10, when
button 10 = in code 0)
The keypad has 2 basic modes of operation (rameter 49).

Direct numbers dialling – on the keypad you dial numbers like on the
phone (max. 24 characters)

Dial from door phone memory – you dial just 2digit number on keypad
= memory adress (01- 99). This mode save connected buttons. For
more subscribers is more suitable use a few buttons of direct dialling
and keypad in mode of memory dalling than use many buttons
modules.
Note: button 1 on basic module adress the same memory of phone numbers
as keypad dial 01 – in door phone is 99 memories only for DAY mode and 99
memories for NIGHT mode. The keypad use the same memories as buttons!
as button
following button
and door phone hang up or cancel
