Summary of Contents for Alphatech Slim IPDP – 01
-
Page 1: Doorphone Voip

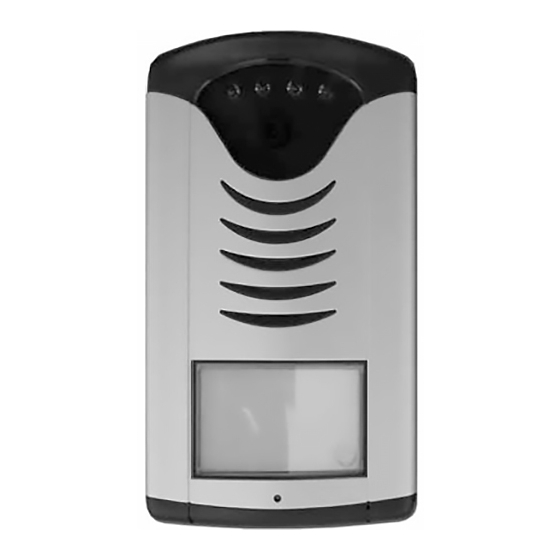

DoorPhone VoIP Slim IPDP – 01 Slim IPDP – 02 Slim IPDP – 01C Slim IPDP – 02C Slim IPDP – 01C antivandal Installation and Operating Instructions... - Page 3 At http://www.alphatech.cz/engl/e_ipdp-slim.htm you will also find the latest version of the user documentation. Manual version V6.1 30-8-2011 Version of firmware V1.64 and V6.1 Alphatech spol. s r.o. Jeremenkova 88 140 00 Praha 4 Tel/fax: 272103334 www.alphatech.cz info@alphatech.cz...
-
Page 4: Table Of Contents
Table of Contents DOORPHONE VOIP ......................1 BASIC DESCRIPTION ....................5 ......................5 EATURES ....................... 6 ERMINOLOGY ....................7 ODULE SSEMBLY ....................7 ODULE EATURES 1.4.1 Slim IPDP Basic Module .................. 7 IP A ............ 12 NSTALLATION OF HONE SSEMBLY 1.5.1 Open and close the cover of Slim IPDP ............ -
Page 5: Basic Description
Basic Description 1.1 Features Voice communication is supplied only from telephone line Two 25digit numbers (IP adress) with each button Commands can be used for a doophone two or a single digit (command 55 is reduced to 5 so that we save * 5 instead of the original 55) ... -
Page 6: Terminology
1.2 Terminology Ethernet is a family of frame-based computer networking technologies for local area networks (LANs). A local area network (LAN) is a computer network covering a small physical area, like a home, office, or small group of buildings, such as a school, or an airport ... -
Page 7: Module Assembly
1.3 Module Assembly The Slim IPDP are the basic modules with color camera Slim IPDP-01/02C or without camera Slim IPDP-01/02. Antivandal panel is very strong metal cover for increased endurance against vandalism. Slim IPDP-01 Slim IPDP-02 Slim IPDP-01C Slim IPDP-02C (Slim IPDP-01C antivandal) 1.4 Module Features 1.4.1 Slim IPDP Basic Module... - Page 8 Picture 1 Basic module - motherboard The connection of relay contact terminals is shown on pict. 2. The “NO” designation means an idle-disconnected contact, “COM” means a pin contact (middle) and “NC” means an idle-connected contact. The contacts of both switches are galvanically isolated each other and from other guard circuits.
- Page 9 Picture 2. Connect Slim IPDP IPDP - installation and operating instructions...
- Page 10 Picture 3 Examples of relays connections Picture 4 Examples of relays connections powered by PoE ATTENTION - lock is must be low power consumption, max 350mA. IPDP - installation and operating instructions...
- Page 11 In newer versions available Slim IPDP function door sensor. Refer. page 34. Setting voice communication – position trimmers are presetting from manufacture and in majority case agree with, therefore changes setting altering only in necessary case. Basic position of trimmers, sense of rotation meaning trimmers illustration on picture 5.
-
Page 12: Installation Of Doorphone Voip Assembly
DIP switch setting basic operation and default setting. See on picture 6. State of DIP switch is reading at start the IPDP, i. e. after reset. After get started system is necessary DIP switch 3 and 4 always return to the position "On", because at next reboot system would be new values overwriting by default value. -
Page 13: Dismounting Lighting Of Nameplate
1.5.2 Dismounting lighting of nameplate 1.5.3 Assembly Slim IPDP on the wall The installation is made by screwing to the wall by means of dowels. IPDP - installation and operating instructions... -
Page 14: Return Lighting Name Plate After Mounting On The Wall
1.5.4 Return lighting name plate after mounting on the wall. 1.5.5 Change of nameplates Each button has its separate nameplate hold by means of plastic flag (see figure). The paper nameplates can be printed from Excel form (to be downloaded on www.alphatech.cz/engl/basic.htm). IPDP - installation and operating instructions... -
Page 15: Doorphone Voip Operation
2 DoorPhone VoIP Operation 2.1 Signaling Overview The IPDP signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under microphone hole). You can listen the signaling samples in Nset setting program. -
Page 16: Person Inside Object
mode two number group = first press – it always dials a number set in table 1. By repeated press of the same button or detection of busy tone after dialing the DoorPhone will select the number from the second group (table 2). The next press of the same button again selects a number of the first group, etc..……... -
Page 17: Programming Of Parameters
3 Programming of Parameters 3.1 Basic VoIP settings 3.1.1 Choosing a mode and login It is important to choose a DoorPhone mode first. The DoorPhone can work in the PeerToPeer mode or SIP server mode. The mode setting can be made by a relevant switch (DIP switch see on picture 7). - Page 18 In your web browser enter IP address of the DoorPhone, default is 192.168.1.250. See picture 8. Picture 8 First site - video from camera Enter user name and password. User name is „admin“, default password is „1234“. See picture 9. Picture 9 Login to setup IPDP - installation and operating instructions...
-
Page 19: Language Option
3.1.2 Language option Language setting can be made in a menu on the left panel. Adding language is description on page 29 IPDP - installation and operating instructions... -
Page 20: Network Settings
3.1.3 Network settings Network settings are located in the Network seting menu item. It is possible to use DHCP service (1) or you can enter IP addresses manually. Manual configuration: After making changes click on a save and restart button. 1. - Page 21 DHCP configuration: After making changes click on a save and restart button. 1. Hostname – name of doorphone for resolution in nets (e.g . while using more doorphones – more entrance) 2. Enable/disable ethernet settings via DHCP 3. DHCP client ID is name, which using for assigning two IP address to only thing the MAC address (in IPDP porter has meaning as far as will be including internal SIP server) 4.
-
Page 22: Peer To Peer Or Sip Server Connection
3.1.4 Peer to peer or SIP server connection The DoorPhone can be set to the peer to peer (P2P) mode or to the SIP server mode by DIP switch (page 17). In P2P mode DoorPhone calling IP adress – in memory buttons (page 38). After making changes use the save changes button. - Page 23 If you setting SIP server mode by DIP switch, so change site of SIP parameters After making changes use the save changes button. 1. SIP proxy server IP address or SIP server name and port (usually 5060/5061) - via the server connection is made 2.
-
Page 24: Audio Codec Setting
3.1.5 Audio codec setting After making changes use the save changes button. 1. There is choosing only priority using audio codecs, used codec is selection automatically at make audio connection in SIP protocol. 2. Default value – presetings to the firm settings. After making changes use the save changes button. -
Page 25: Setting Video
3.1.6 Setting video After making changes use the save changes button. 1. Resolution display video 2. Number picture per second (frequency restoring picture) 3. Setting next parameters of camera 4. choice of priorities for the use of codec H.263 / H.264, if not select any codec, and sends the video call. -
Page 26: Viewing The Video (Programme Popup)
Next interesting way watching videos from IPDP is install PopUp program UDVGUARD for Windows. This programme also with manual is freely download on http://www.alphatech.cz/engl/e_ipdp.htm. Programme except display the video has even this interesting functions: at conversation IPDP is program automatically activate from system tray of... -
Page 27: Day Intervals
3.1.8 Day intervals Display only if you check automatic switch Day/Night mode on Basic parameter - page 33. Function with firmware V5.8 and higher. After making changes use the save changes button. 1. Display actual internal time (you must setting in "Service" time server) 2. -
Page 28: User Interface
3.1.9 User interface After making changes use the save changes button. 1. Possibility switch off displaying videos on start page - safety device 2. Additional security is password protection to secure access to http://ipaddress/video.jpeg (image from the camera). ATTENTION: this option has the effect that stops function the program PopUp and videos on the SNOM phone ! 3. -
Page 29: Service Settings
In some cases also helps to add parameter about frame rate (for example for mplayer it is '-fps 5'). Full command line example for mplayer is: mplayer -fps rtsp://192.168.1.250 4. Push video is the choice for phones SNOM when the script was sent to the phones provide a video display on this phone 5. - Page 30 1. display current version of firmware in module VoIP and in module doorphone. Button "Basic LOG" or "Extended LOG" displays to the what state LOG switch, it means you see "Extended LOG" so they switch to the basic LOG and back to, in short switch you have such LOG, which don't see writing on button.
-
Page 31: Restart
3.1.11 Restart IPDP - installation and operating instructions... -
Page 32: Preparation Style, Language Support
3.1.12 Preparation style, language support File of style consist of three files packaged to the archive ".TAR".To unpacking file "tar" use e.g . programme "PowerArchiver". First file "upload_fw.sh is header file of style and this please didn't have. Second file is HTML style in syntax HTML, it is possible change font size, fonts, colours character and lines, background colour. -
Page 33: Setting Doorphone Parameters
3.2 Setting DoorPhone parameters 3.2.1 Basic Parameters After making changes use the save changes button. 1. Mode of DoorPhone choice selects number per Day/Night DoorPhone mode or selects numbers of the first and second groups. 2. Sign for call extension * or # (10sec before call end the DoorPhone will send a notice, then the call may be extended) 3. -
Page 34: Sensors Of Open The Doors
7. hasn't in this design sense, because isn't possible to connect keyboard 8. Possibility to turn off the camera for night illumination 9. Attention this option is required to detect the presence of inputs for sensors in your IPDP. Door sensors are sensors (eg magnetic contacts or part of electrical lock) to inform the opening / closing doors. -
Page 35: All About Relays
3.2.3 All about relays After making changes use the save changes button. 1. Relay mode: =1 switch mode – it will close on command or password for period t (used for electrical locks, gate opening etc.) =2 camera mode – it will close by guard pick up and open by hanging up. =3 lighting mode –... - Page 36 2. password for relay closing from buttons or keyboard [2 to 6 digits]. Total 6 passwords, they are controlled by Day/Night; the combination is entered either by DoorPhone buttons (first 1/2 buttons) or from attached keyboard (after pressing of key symbol). The relay closing influences the set switch mode and Day/Night switchover.
-
Page 37: Time Parameters
3.2.4 Time Parameters After making changes use the save changes button. 1. max. time, for which the DoorPhone is hanging up, this time can be extended during call by sign choice from telephone (* or #) – see page 33. 2. -
Page 38: Direct Dialing - Memories
3.2.5 Direct Dialing – Memories After making changes use the save changes button. 1. telephone number up to 16 digits, we want to store. The numbers are the numbers of the first group or numbers of Day mode. In default setting is table memoirs empty. -
Page 39: Technical Parameters
4 Technical Parameters 4.1 Electrical Parameters Parameter Value Conditions Communication interface Ethernet 10BaseT, 100BaseTx VoIP protocol supported Audio G.711u, G.711a, G.726-32b, GSM série JPEG, MJPG, stream H.263 (CIF), Video H.264 Band width 300Hz – 3400 Hz Power supply - adapter 12Vss ±... -
Page 40: Parameters Of Video, Access
4.3 Parameters of video, access Video for WEB: InternetExplorer - (batch JPEG pictures - port 80) is used over and over again repeated http request ADRESA/video.jpg Mozilla, opera, Firefox … and programme PopUp (UDVguard) - (MJPEG stream - port 80) is used http request ADRESA/video.mjpg (sometimes it is necessary reload than it start up).This video is continuous and has smaller load nets. - Page 42 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 45 © JR 2008-11 version V6.1 VIII/11...
