Alphatech IP-VarioBell IPVB-01 Installation And Operating Instructions Manual

Sip
Hide thumbs Also See for IP-VarioBell IPVB-01:
Table of Contents

Advertisement

Quick Links

Download this manual

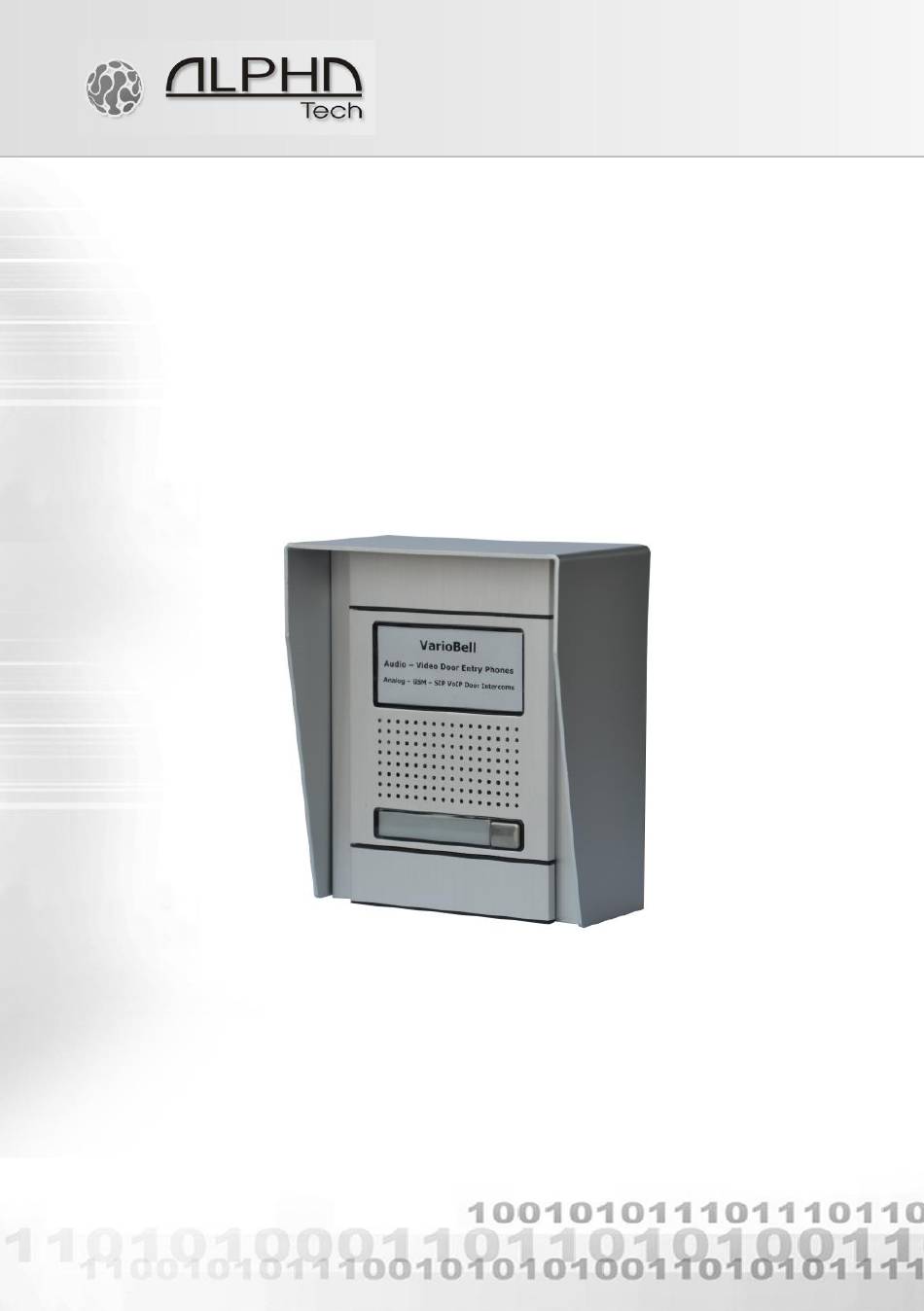

A
T
s.r.o
.
LPHATECH
ECHNOLOGIES
Jeremenkova 88, Praha 4, Czech Republic
www.alphatechtechnologies.cz
IP-VarioBell
SIP DoorPhone
IP-VarioBell
IPVB-00, IPVB-01, IPVB-02
IPVB-00C, IPVB-01C, IPVB-02C
VBD5-mod, VBD10-mod, VBDKey
Installation and operating
instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-VarioBell IPVB-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Alphatech IP-VarioBell IPVB-01

Summary of Contents for Alphatech IP-VarioBell IPVB-01

  • Page 1 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz IP-VarioBell SIP DoorPhone IP-VarioBell IPVB-00, IPVB-01, IPVB-02 IPVB-00C, IPVB-01C, IPVB-02C VBD5-mod, VBD10-mod, VBDKey Installation and operating instructions...
  • Page 2 Installation and operating instructions...
  • Page 3 IP VarioBell – User instructions...
  • Page 4 At www.alphatechtechnologies.cz you can also find latest versions of user documentation. Manual version V3.5 5-9-2016 Valid for firmware – V3.4.xx Alphatech Technologies s.r.o. Jeremenkova 88 140 00 Praha 4 www.alphatechtechnologies.cz info@alphatechtechnologies.cz...

  • Page 5: Table Of Contents

    Contents BASIC DESCRIPTION ..................7 ...................... 7 EATURES ..................8 SED TERMINOLOGY ..................10 ET OF MODULES 1.3.1 Call button modules ................11 1.3.2 Mechanical parts ..................12 IP-V ............15 ONNECTION OF THE ARIO 1.4.1 IP-VarioBell basic board ............... 15 1.4.2 Power supply - terminal (10) ..............
  • Page 6 ..................42 URRENT STATUS 4.2.1 Language settings ................... 43 .................. 43 NETWORK SETTING 4.3.1 IP Network setting .................. 43 4.3.2 SIP setting ....................46 4.3.3 WEB server ..................... 50 ..................... 52 ASIC SETTING 4.4.1 Phone book ..................... 52 4.4.2 Relays ...................... 55 4.4.3 Door sensors ...................

  • Page 7: Basic Description

    1 Basic description Features ▪ audio is full duplex with ECHO cancellation ▪ phone book for up to 999 subscribers with 5 phone numbers for each (max. 87 call buttons + keyboard) ▪ every subscriber can have more phone numbers with progressive or simultaneous calling ▪...

  • Page 8: Used Terminology

    Used terminology • Incoming call - Connection between the doorphone and a phone made by selecting an option on the phone. The doorphone connects the call after set number of rings. The doorphone can be programmed from the phone following a connection by inputting a password.
  • Page 9 • DHCP (Dynamic Host Configuration Protocol) is application protocol from family TCP/IP. It is used for automatic assign of IP adresses to individual computers in PC network. Due this simplify its management • Internet is worldwide system of mutually connected PC networks •...

  • Page 10: Set Of Modules

    1.3 Set of modules The IP-VarioBell doorphone is a modular system using the latest technology, offers timeless design, easy installation and use. The IP-VarioBell has two relay switches and it can be powered via PoE. The basic models differ by number of call buttons. There can be zero, one or two call button on the basic module.

  • Page 11: Call Button Modules

    1.3.1 Call button modules Basic module Basic module Basic module IPVB-02 IPVB-01 IPVB-00 Basic module Basic module Basic module IPVB-02C IPVB-01C IPVB-00C Button module Button module Keypad module VBD5-mod VBD10-mod VBDKey IP VarioBell - installation and operating instructions...

  • Page 12: Mechanical Parts

    1.3.2 Mechanical parts Below you can find images of mechanical parts for 1, 2 and 3 modules. In one column there are max. 3 modules. Flush mounting installation boxes into the wall: Flush Monting Box -1 Flush Monting Box -2 Flush Monting Box -3 IP VarioBell - installation and operating instructions...
  • Page 13 Mounting Frame – for mounting into the wall and on the wall for 1 module for 2 modules for 3 modules IP VarioBell - installation and operating instructions...
  • Page 14 Rain hood – for flush mounting into the wall Rain hood -1 Rain hood -2 Rain hood - 3 Surface Mounting Box with rain hood – for installation on the wall (frames are supplied separetely) SMB -1 SMB -2 SMB -3 IP VarioBell - installation and operating instructions...

  • Page 15: Connection Of The Ip-Variobell

    1.4 Connection of the IP-VarioBell The IP-VarioBell consists of the basic board, processor board and it always has two buttons on the board. Number of used call buttons is defined with the used front panel plate. You can connect up to 85 call buttons to the basic board and also a keypad.
  • Page 16 11. Input for powering of the IP-VarioBell 12V AC / DC (max. power consumption approx. 300mA). A direct current (DC) power supply is recommended 12. Output 12V DC, max. 300mA, for example for powering of a low consumption electrical lock if PoE power supply is used for the IP-VarioBell IP VarioBell - installation and operating instructions...
  • Page 17 IP VarioBell - installation and operating instructions...
  • Page 18 13. Yellow LED shines when the doorphone rings or establishes and finishes the connection (establishing a connection). 14. Blue LED shines when the connection has been established and you can talk (Active Call). 15. Green LED shines when one of the relays has been activated (Door open). 16.

  • Page 19: Power Supply - Terminal (10)

    18. Camera objective (only models with a camera). Diagonal view angle is 120°, max. resolution 640x480. 19. Speaker 20. Microphone 21. White LED for illumination of name card 22. Call button 1 and 2 – available on each board. Depending on the selected front frame module you can use zero, 1 or two call buttons.

  • Page 20: Connection Of Expansion Modules Vbd10(5)-Mod

    1.5 Connection of expansion modules VBD10(5)-mod The VBD10-mod call button expansion modules come with ten call buttons and the VBD5-mod call button expansion modules come with with five call buttons. However, the way of numbering is crucial. The physical connection can be random, you can interconnect the modules as you wish on regardless of the numbering! The numbering of call button modules will be explained later on.

  • Page 21: Example Of Connection Of Vbd10-Mod Modules

    1.5.2 Example of connection of VBD10-mod modules The connection is made using a flat cable K1 / K0. In the example, a basic module with two buttons is used and the VBDKey keypad module is also used in the connection. The module numbering is set using the DIP switches (E6) shown next to the appropriate module.

  • Page 22: Example Of Connection Of Vbd5-Mod Modules

    1.5.3 Example of connection of VBD5-mod modules The connection is made using a flat cable K1 / K0. In the example, a basic module with two buttons is used and the VBDKey keypad module is also used in the connection. The module numbering is set using the DIP switches (E6) shown next to the appropriate module.

  • Page 23: Call Buttons Numbering

    1.5.4 Call buttons numbering Call buttons numbering depends on the DIP switch setting on each call button module. The numbering does not depend on the way (connection order) of each call button module. Setting the DIP switch (E6) on the call button module.
  • Page 24 IP VarioBell - installation and operating instructions...
  • Page 25 The modules are numbered in the figure above, on the left side there are modules with 5 call buttons VBD5-mod and on the right side there are modules with 10 call buttons VBD10-mod. The module with the desired numbering can be found in the figure above and on the left side of it there is a combination of the DIP switch (E6) you have to set on this module.

  • Page 26: Connection Of Vbdkey Keyboard

    1.6 Connection of VBDKey keyboard The keyboard module is connected by a flat cable as well as the VBD10 (5)-mod modules. The connection is made using the flat cable K1 or cable K0. (E1) is a connection to the base module, (E2) is the connection of the next call button module.

  • Page 27: Signalling On The Front Panel Of The Base Module

    doorphone, and each phonebook entry can contain up to 5 phone numbers (i.e. up to 4995 phone numbers) For keyboard module, you need to set up (tick on / enable) a connected keyboard on the Doorphone page If you connect two keyboards to the system, they will both function and perform the same function.

  • Page 28: Installation

    2 Installation 2.1 Assembly IP VarioBell - installation and operating instructions...
  • Page 29 Mounting/assembly process: Modules Height mm Width mm Depth mm Description of the flush mounting into the wall, which is more complicated: A. Prepare mounting holes in the wall. Recommended height is at around 160cm from the ground. Dimension of holes for flush mounting boxes depends on required number of modules.
  • Page 30 Placing the IP-VarioBell doorphone on the wall IP VarioBell - installation and operating instructions...

  • Page 31: Connection Of Switches

    2.2 Connection of switches Examples of switches wiring can be found on the following page, they are not covering all possible options for connecting the switches but give you instructions on how to connect individual circuits (red rings with numbers = numbers of the examples ).
  • Page 32 IP VarioBell - installation and operating instructions...

  • Page 33: Poe Supply

    2.2.1 PoE supply The IP-VarioBell is equipped with a PoE power supply circuit via the UTP cable. If you have a PoE power switch or you have a PoE power supply (a box of the size of the AC adapter plugged into the UTP cable - according to the IEEE802.3af standard), then you do not need a 12V power supply for the doorphone operation.

  • Page 34: Code Relay Switch (Cosw)

    2.2.2 COde relay SWitch (COSW) A code relay function is available for the switch (COSW-COdeSWitch). It serves primarily to ensure the transmission of information on the electric lock switching. When using this function, it is not possible to activate this lock by attaching disconnecting voltage...

  • Page 35: Micro Sd Card

    2.2.4 Micro SD card The microSD card is used to store user audio files, and in the future it will be possible to store photos, videos, and audio on the MicroSD card as to an answering machine. If you select a user tone and the microSD card is not inserted in the doorphone, the default alert tones will be used.

  • Page 36: Service Of The Ip Variobell

    3 Service of the IP VarioBell Signalling overview The IP-VarioBell doorphone signals acoustic states that can occur during operation, additional signaling is by means of two-color LED (located to the right under black plexiglass). The acoustic signaling for each state listed in the table below can be turned off or the default beep tones are used and / or replaced by user sounds.

  • Page 37: Pressing The Call Button - Code Lock

    1. Phone book position for the selected call button must be permitted 2. Must be filled min. 1 from 5 phone numbers (or IP adresses in P2P mode) 3. At the filled phone number there is an active time plan in appropriate time or there is no time plan is selected.

  • Page 38: Call

    3.2.3 Call Door entry IP VarioBell has adaptive ECHO canceller. The Echo dissapear usually within first 5 seconds of call. The call is then full duplex. The end of call happen: Called party hang up Call duration time is over (when is setup) By button press(when is setup) Visitor inside building By person inside building is person who is in communication with door...

  • Page 39: Video

    Video At models with camera is possible received video as follow: - IP phone with LCD display - PC – WEB browser - PC with programm UDVguard (www.alphatechtechnologies.cz) - PC with general programm for video watching (for example VLC) - Android device (smart phone, tablet) UDVguard (Google Play) - Apple device (smart phone, tablet) UDVguard (iTunes) Video formats: JPG, MJPG, H.263, H.264 Video for WEB:...

  • Page 40: Parametres Programming

    4 Parametres programming Parametres programming is performed by ordinary WEB browser. (Caution! version of IE V7 and lower are not supported). WEB interface access For successful display of WEB interface of IP VarioBell door entry we go through some details. Field length - names, titles, codes, passwords have fix length 40 characters.

  • Page 41: Login

    2. Generally in PC setup you program temporarily own IP address.In PC door entry segment for example 192.168.1.10. After change of door entry IP address you have return setting in PC back. Then you can setup parameters of door entry including IP address and after restart of IP VarioBell door entry you can login to door entry WEB page on new IP adress.

  • Page 42: Current Status

    You enter now to first petting page of door entry IP VarioBell. On this page is display „Current status“. All necessary data about door entry status are here. Current status Current status display basic data about IP VarioBell door entry status. It displays Firmware version,door entry model, options connection (camera), SD card, MAC adresses, current time, network setting, door entry mode (P2P or SIP server), registration status and small calls statistic.

  • Page 43: Language Settings

    4.2.1 Language settings After language selection please don’t forget click on „Save changes“. On the right top corner is display flag of current used language in whole WEB interface. After click on flag accessible language will be displayed. After language selection please don’t forget click on „Save changes“ otherwise language selection wont be performed.
  • Page 44 After performing of required changes please don’t forget click on „Save and restart“. Setup via DHCP - ON / OFF using DHCP assignment of IP adresses IP adress, Network mask – IP adress setting, mask. In case of emergency please contact your network administrator Network gateway –...
  • Page 45 DHCP configuration: After performing of required changes please don’t forget click on „Save and restart“. DHCP – by mark of this checkbox as same as saving and restart will be assigned to door entry IP VarioBell - IP adress by DHCP. NAT policy - there is the choice of what kind of translate IP addresses used NAT address - used for network traffic through the router (modifies transcription of the original or destination IP address)

  • Page 46: Sip Setting

    4.3.2 SIP setting The door entry IP VarioBell might operates in 2 basic SIP modes. It is either SIP server – door entry registration is performed to SIP server and then you call to phone numbers assigned by SIP server or Peer to Peer (P2P) – door entry call exact IP adress and SIP server services can´t be used.
  • Page 47 Account - unit name in SIP protocol (usually line number or name without diacritics) Auth.ID - name for SIP server registration Password - password for SIP server registration Send register – when registration is necessary (mostly yes) then this parametr must be used Registration server - IP adress or server name of registration server (in most systems and installations is enough to insert IP adress).
  • Page 48 Peer to Peer mode (P2P) After performing of changes please don’t forget click on „Save changes“. Display name – name by which is device presented in network (for example will display as door entry name in programms UDV panel, UDVguard) SIP User Agent –...
  • Page 49 INVITE regest sends to outbound proxy adress. Outbound proxy is used due NAT. When is not used dont fill up. Port - SIP port is usually 5060 or 5061 SIP Transport - TCP or UDP, or automatic selection Provisional code - determine if during ringing will be sends SIP code „180 Ringing“...

  • Page 50: Web Server

    4.3.3 WEB server After performing of changes please don’t forget click on „Save and restart“. WEB interface TCP port - posibility of chase usuall TCP port 80 to other (security reasons) Service password / Retype password – inserting of new access password (instead default password 1234) –...
  • Page 51 Video password – inserting of new video access password (instead default password 1234) – length max.40 characters (name for video access is video) Enable telnet – available only for special customization. posibility ON / OFF access from telnet (name: root, pass: 8765). telnet is not recommended, in practice, this possibility has caused a lot of problems.

  • Page 52: Basic Setting

    Basic setting In this part are setup user and most often changed parametres. 4.4.1 Phone book After performing of changes please don’t forget click on „Save“. The phone book contents 999 subscribers. For first 99 subscribers agree subscriber number with button number. In this version of door entry – IP VarioBell is max = 87 button.
  • Page 53 Every position of phone book allows insert up to 5 phone numbers with possibility to join some of them (or all) into group and call group of phone numbers simultaneously. Title – This text has informative character only. In case of display using will be name shown in list selection.
  • Page 54 according buttons 1 – 2 in this model). Each subscriber has one cod efor every relay. Calling – description The group means that 2 or more phone numbers creates group and those Numbers are dialled simultaneously (all are ringing together). Who from dialled Subscribers pick up first can talk and ringing to other subscribers in group Will be ended.

  • Page 55: Relays

    4.4.2 Relays After performing of changes please don’t forget click on „Save“. In relays setting are accessible 4 relays. The relays 1 and 2 is output of relays contacts directly in IP VarioBell door entry. Next 2 relays (3 and 4) is possible use for remote relays (IP relays via follow) or as virtual relay usefull for synchronization to allows creation of more difficult functions of relays.
  • Page 56 original function. When such status repeats regularly (for example school) you can use time plan. Time table – defines time period when relay is working and hen not. For example is shop operation time , school, etc.. Relay mode - monostable –...
  • Page 57 By synchronization you can create different closing combination. Synchronize delay – time between synchronization start and its evaluation. Usage for example in more relays closing combination for one code Active on call – options are none (calling has no influence for relay status) incoming call –...
  • Page 58 Direct ON button – when you fill up button number then this number will work as departure button only. Eventually might be used relay output for control of mechanical bell. During button press is relay activated in monostable mode for closing time. If in the phonebook filled for this button telephone number then be combined with relay closing with calling telephone number.

  • Page 59: Door Sensors

    4.4.3 Door sensors Door sensors are special functions of door entry IP VarioBell which is optional. It is HW option which is different according button number of each model – inputs for door sensors. There is created information in the system about close/open the door.

  • Page 60: Setting Snmp

    Input door sensor 1 / 2 Exit button – relay 1-4 – because the use of door sensors not found so wide usage, so these can be used as two inputs to the function Exit button. When the input connections (short) so activates the corresponding relay (switch monostabil) .

  • Page 61: Time Profiles

    Variables in MIB tree – is designed for identification of none sense numeral chain OID OID is numeral identificator which definitely identify every value in SNMP communication. OID is created by number sequence separand by dot. Every dot represent exact level of tree structure into which are OID maped.

  • Page 62: Date And Time Setting

    possible deactivate whole day (first item on the row select „Active“ – Yes /No) . In example on the picture it is Saturday or whole day setup on active – in example i tis sunday. To use correctly this feature is necessary to setup correct time in the unit (via Date and time setting) Code for activation / deactivation–...
  • Page 63 Network time server – IP adress or domain name of NTP server. When you dont know then by inserted * will IP VarioBell find NTP server automatically according own selection. Condition is setup in network setting start gate and DNS. Daylight saving time –...

  • Page 64: E-Mail

    4.4.7 E-mail When you want inform subscriber about missed calls from door entry you can setup IP VarioBell to sent out email after every missed call. You can setup own subject and text of email. When you have door entry with camera you can automatically add to email one or more pictures from camera.
  • Page 65 SMTP port – adjust in case of none standard SMTP server setting only. SMTP port is setup usually on value 25, but better is use port 587. SMTP, there are three systems: Port 25 not allow encrypted - it is marked as obsolete, insufficient safety Port 465, not a domain hosting - is labeled as not recommended at Port 587, has no maladies previous two, is currently the only...

  • Page 66: Extended Setting

    Extended setting This part is designed for system setting which are done once during installation or when are problems with device kompatibility. 4.5.1 DoorPhone After performing of changes please don’t forget click on „Save“. Ringing timeout – time for which is ringing. When is setup more numbers as same as progressive ringing then after this time ringing is ended on first phone number (IP adress in P2P) and starts ringing on second.
  • Page 67 usually 2-5min (according SIP device setting). You can record message to SD card during this time and simultaneously send email. Maximum call duration – when call is picked up timer for call duration limit is activated. When you insert empty, then there is no limit. The 10sec before call end you hear tone after which you can dial character for call prolongation and by this prolong the call about same time period.
  • Page 68 When you have in numbers dial space longer than maximal number inserting time then door entry calls. When you want in mode P2P call to IP adress then „.” in IP adress is substitute by Camera light – wideangle camera has posibility of extra lighting when light conditions are not acceptable.

  • Page 69: Audio Setting

    4.5.2 Audio setting After performing of changes please don’t forget click on „Save“. Speaker volume + Microphone gain – amplification setting ECHO limiter – it is designed for Echo cancellation which is created by distortion of loud signal.During standard door entry call is working automatic adaptive echo canceller which cancel the echo after cca 3 seconds of talk and call is full duplex.

  • Page 70: Audio Codecs

    - default, simple signalling in default setting - user, this is recorded signalling by user ( SD card) -via. Service Volume – loudness signalling adjustment 4.5.3 Audio codecs After performing of changes please don’t forget click on „Save“. Priority – setting of codecs priority for usage. Some audio codecs requires payable license (for example G729) –...

  • Page 71: Video Setting

    4.5.4 Video setting After performing of changes please don’t forget click on „Save“. Image size– image size selection. Stream H.263 knows just CIF resolution (352x288) so bigger image is cut and smaller image is framed Images per second – this setting concern mainly image transmission to WEB browser.

  • Page 72: Video Watching (Popup Programm)

    2. Aperture priority mode – automatic exposure is adjusted by the camera module 3. Software mode – exposure calculates and sets the software in IP VarioBell Before adjusting image parameters, it is recommended to use the first Default values.. 4.5.5 Video watching (PopUp programm) The door entry video records by USB WEB camera.

  • Page 73: Video Codecs

    4.5.6 Video codecs After changes performing please don’t forget click on „Save“. Priority – setting of codecs priority for usage . Compatibility – Due some of VOIP phones producers specialities you have to use in certain cases extra setting: Yealink – phonesYealink SNOM –...

  • Page 74: Streaming

    4.5.7 Streaming After changes performing please don’t forget click on „Save“. Enable streaming – permitted / prohibited to provide video (H.263 and H264) by door entry IP VarioBell (server) protocol RTSP on port 554. To receive such video you need some standard stream video players (IP TV or for example Grandstream, MPlayer, VLC etc…).
  • Page 75 Multicast adress – by inserting IP adress you permit sending RTP packets to selected multicasting adress. JPEG image quality – you insert percentage of video coding quality IP VarioBell - installation and operating instructions...

  • Page 76: Service

    Service This part contents service functions. 4.6.1 Restart By click on „Restart“ button you make door entry reset. IP VarioBell - installation and operating instructions...

  • Page 77: Configuration

    4.6.2 Configuration The door entry IP VarioBell allows saving of current setting to PC or other repositury. From this saved file you can later restore this setting in a few levels – for example phone book only. It helps for example during installation of door entry in more entries to the building.

  • Page 78: Language And Style

    Default network and SIP – make default setting of network (IP adress 192.168.1.250) and erase SIP setting Default Others – all remains parametres put to factory setting By click to „Make” will be done required setting/erasing door entry parametres. 4.6.3 Language and style Load Style file –...

  • Page 79: Style And Language Preparation

    2. Prepare HTML style file – reference style file is on WEB page www.alphatechtechnologies.cz This is part of style file with logo include – red is required, green is optional … </style> <div class='container-div'> <div class='header-div'> <div class='header-sub'> <h2>ALPHATECH TECHNOLOGIES s.r.o. &nbsp; <img src="/logo.gif" align="center" width="190" height="55" alt="Alphatechtechnologies s.r.o."></h2> IP-BOLD <div class='header-right'>...
  • Page 80 To create new language we recommend following steps. Firstly make export of language file (language version of exported file is simultaneously selected language ( flag in right top corner). Rename this file to new language and open in text editor (PSPad is recommended because file has rows ended by LF only and no CR+LF as usual).

  • Page 81: Firmware Upgrade

    4.6.5 Firmware upgrade Firmware version – display present firmware version in door entry IP VarioBell Choose firmware file – by click to empty field select file with firmware (for example apt.firmware it is not file *.zip, but already unzip file – on website are firmware files packed to archive *.zip) In Windows is display proces so firmware upgrade.

  • Page 82: Logfile

    After firmware upgrade you must make restart of doorphone IP VarioBell. 4.6.6 Logfile Start enhanced log – it is OFF in default to save processor efficiency. When you switch it ON then are save into internal memory detail information about door entry operation. It is very helpfull to solve different problems ( compatibility etc..).
  • Page 83 Show call log - in new WEB interface window are online display information about making calls. Syslog server – IP adress or server name of syslog server where will be sent records about IP VarioBell door entry operation (do not forget setup NTP server for setting of internal door entry clocks otherwise records will be saved with incorrect date and time) The procedure to download Enhanced LOG file.

  • Page 84: License

    4.6.7 License This page allows extend door entry features about payable functions via licenses.For example audio codec G729. After payment you receive license number by email License validity shows if license is working correctly. The license code is connected to MAC number of door entry. IP VarioBell - installation and operating instructions...

  • Page 85: Sound Files

    4.6.8 Sound files This page is designed for recording own (user) sounds signalling. By click on „Play“ will be played currently active sound file (selection is permormed on page „Audio setting“ eventually sound of relay closing on page „Relays“). Attention files are recorded on a microSD card! Audio files: WAV –...

  • Page 86: Technical Parametres

    5 Technical parametres Electrical parametres Parametr Value conditions Interface Ethernet 10BaseT, 100BaseTx VoIP protocol SIP 2.0 defined RFC3261 Default IP address 192.168.1.250 G.711u, G.711a, G.726-32b, GSM, G722, Audio G729 (optional) 300Hz – 3400 Hz Band range Echo supression Automatical Output power Class D, 1W/8ohm, 94dB/1kHz/1m/1% série JPEG, MJPG, stream H.263, H.264 Video...

  • Page 87: Video Parametres

    Video parametres Video formats: JPG, MJPG, H.263, H.264 Video for WEB: Internet Explorer, Mozilla, Opera, Firefox… - (set of JPG pictures - Port 80) it is used repeated http request „IPaddress/video.jpg“ programm PopUp (UDVguard) - (MJPEG stream - Port 80) is used http request „IPaddress/video.mjpg“...

  • Page 88: Requests

    5.3.1 Requests VIDEO: http:// IPaddress /video.jpg MJPG - http:// IPaddress /video.mjpg H.263 - rtsp:// IPaddress /video.263 H.264 - rtsp:// IPaddress /video.264 RELAYs: http:// IPaddress /relay_control?1=on http:// IPaddress /relay_control?1=off http:// IPaddress /relay_control?2=on http:// IPaddress /relay_control?2=off http:// IPaddress /relay_control?3=on http:// IPaddress /relay_control?3=off http:// IPaddress /relay_control?4=on http:// IPaddress /relay_control?4=off BUTTONs:...
  • Page 90 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. Particularly the warranty does not cover damage from improper intervention via Telnet.
  • Page 91 © Alphatech Technologies s. r.o. 2014-2016 version V3.5...
