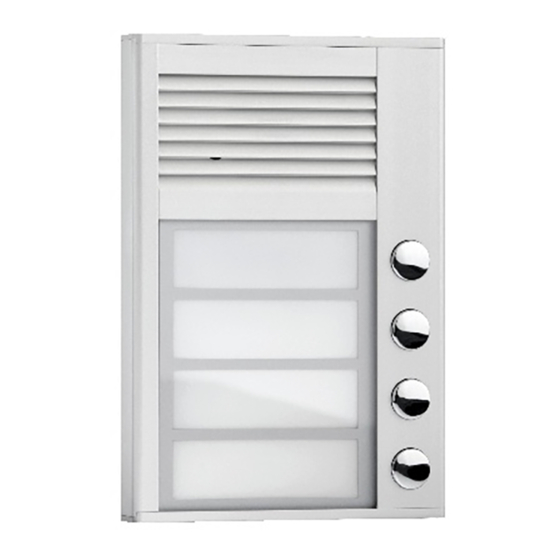

- Page 1 SlimDoorPhone SlimDoorPhone – 01 SlimDoorPhone – 02 SlimDoorPhone – 04 User´s manual ver.20/2011...
-
Page 2: Table Of Contents
Contents BASIC DESCRIPTION ................... 3 ....................3 EATURES ................. 4 HONE MODELS INSTALLATION ..................... 4 ........4 PENING WIRING WALL MOUNTING AND SETTINGS 2.1.1 Name card panel..................4 2.1.2 Uncover control elements............... 5 2.1.3 Wiring and wall mounting ..............5 2.1.4 Switches .................... -
Page 3: Basic Description
Basic description 1.1 Features Ø Very slim module for surface mounting only. Supplied in 1, 2 or 4 button variants. Ø Possibility connection keyboard with second relay. Ø Voice communication powered from analogue telephone line only. Ø Pulse and tone (DTMF) dial Ø... -
Page 4: Slimdoorphone Models
1.2 SlimDoorPhone models Three versions are available plus keyboard : SDP01 -1 button SDP02 -2 buttons SDP04 -4 buttons Keyboard 2 Installation This compact unit is fixed by 2 screws to the wall. 2.1 Opening, wiring, wall mounting and settings 2.1.1 Name card panel 1. -
Page 5: Uncover Control Elements
2.1.2 Uncover control elements 4. Push the aluminium speaker grille down (see figure – 4). 2.1.3 Wiring and wall mounting 5. Use the wall mounting template at the end of the manual mark position for the screw holes cable connection mounting surface. -
Page 6: Switches
The wiring of relay contacts is explained in the next picture. The symbol "NO" means contact normally open, "COM" means sharing output (central) and "NC" means contact normally closed. The relay contact is isolated from the other circuits on the board. For the variants of lock connection see the picture below. -
Page 7: Voice Level
The PCB heating has two major benefits. Firstly, it warms the board during winter time (temperatures under -20 C, most circuits have warranty operation down to -20 C) and secondly it helps to protect the PCB against humidity when installed outside. 2.1.5 Voice level 10. -
Page 8: Location Of Doorphone Components
2.2 Location of Doorphone components All mounting, control and setting elements are located under the speaker front aluminium grille. SPK- setting of Loudspeaker MIC-setting speaker volume microphone volume Heating activation TRH – setting of microphone activation Service switch level PC connector SlimDoorPhone fixing screw hole... -
Page 9: Changing Name Cards
2.3 Changing name cards pocket Name card panel (2.1.1on page 4) has spaces to insert printed name cards. Insert name cards from top (see picture). Cards can easily be printed with pictures as well as text using the included software. The card outline is marked for easy cutting . Panel with cards 2.4 Final closing of Doorphone... -
Page 10: Connect The Keyboard
2.5 Connect the Keyboard Keyboard work as separate code lock, he has connection power supply 12V, input for departure button and one relay with change-over contact. In case connection by special cable keyboard with SlimDoorPhone characteristics those code lock expand and keyboard can be use not only to control relay in keyboard, but relay in doorphone SlimDoorPhone contol too and use so 10 codes for one and 10 codes for second relay. -
Page 11: Slimdoorphone Services
3 SlimDoorPhone Services 3.1 Signalling Overview The unit signals acoustic conditions that may occur during operation. You can listen to the signalling samples in the SlimDPset program. Condition Tones Tone frequency Pick up line –▄–■–▀– 425-850-1275 Hang up line –▀–■–▄ 1275-850-425 Confirm command ––█––... -
Page 12: Slimdoorphone With Keyboard
from the second group (parameter 2). The next press of the same button again selects the number from the first group, etc..…… If the button is pressed after the line has been opened (but before the call is answered), the unit will hang up for the period given by parameter 54, lift up the line and dial the other group number. -
Page 13: Parameter Programming
• If, within the first 10 seconds, the service password is entered, the unit will switch to programming mode and voice communication will cease. • During an incoming call it is possible to restrict relay control (parameter 37). This can be useful in some special applications. 4 Parameter programming 4.1 Programming from a telephone by DTMF 4.1.1 Entering programming mode... -
Page 14: Programming From A Pc - Slimdpset Program
The unit stays inactive in programming mode for 34 seconds and will then automatically hang up. Every time a DTMF tone is dialled, this period is reset. Alternatively, parameter 9 may also be selected to end programming mode. To program a parameter, enter the parameter number followed by the value you wish to set. -
Page 15: Parameter Description
Parameter description 5.1 Direct Dialling – Memories Parameter Value Description Default t nn… No. nn under button t t – Button number (memory) [1-4] nn – telephone number up to 16 digits to be stored. parameter dial Refer to the table for other choices. 0 - 9 0 - 9 The number stored in parameter 1 is the number for the... - Page 16 Parameter Value Description Default External access code in DAY + NIGHT hhhhhh mode hhhhhh External access code in DAY mode hhhhhh External access code in NIGHT mode hhhhhh – password for relay closing from buttons [2 to 6 digits] The 3 passwords are controlled by Day/Night; the combination is entered using the unit buttons.
-
Page 17: Basic Parameters
Parameter Value Description Default Internal access code 2 impulses cc – command from phone to relay closing [2 digits] – 2 impulses Parameter Value Description Default External access code in hhhhhh DAY + NIGHT mode for 2 impulses hhhhhh – password for relay closing from buttons [2 to 6 digits] for activation 2 impulses in DAY and NIGHT mode. -
Page 18: Time Parameters
Parameter Value Description Default End call bb – command for unit hanging up from phone [2 digits] It is recommended to set the same command for both Internal Access Code (parameter 35) and End Call aa=bb. Parameter Value Description Default xxxx 0000 Password... - Page 19 Parameter Value Description Default Maximum call duration d – maximum time in minutes for which a call may last. time This time can be extended during a call by dialling choice [min] Prolong Call digit from telephone (* or #). Time setting is per table.
- Page 20 Parameter Value Description Default DTMF tone duration (ms) 5 (100ms) Space duration between DTMF tones 5 (100ms) (ms) 1 (100ms) Recall duration (ms) 8 (800ms) Pause duration (ms) – DTMF tone duration is determined by the formula: (entered number + 5) x 10 = tone duration [ms] [range 1-0 i.e.
-
Page 21: Presetting And Deleting
Parameter Value Description Default Frequency of tone detection y – setting range frequency of tone detection from telephone line, value is in next table: frequency range frequency range 200-350Hz 500-650Hz 250-400Hz 550-700Hz 300-450Hz 600-750Hz 350-500Hz 650-800Hz 400-550Hz 700-850Hz 450-600Hz 750-900Hz Parameter Value Description Default... -
Page 22: Exit Programming
Parameter Value Description Default Deletes all numbers in group 1 (Day mode) Deletes all numbers in group 2 (Night mode) only 3.. Default setting only for parameters 3x Default setting only for parameters 4x only 4.. only 5.. Default setting only for parameters 5x The parameters 81 and 82 will delete all numbers stored in memories for buttons. -
Page 23: Overview Of Parameters
Parametr Value Description Default 3 and 9 Acoustic signalling In default the unit produces acoustic signals. It can occasionally cause a problem of incorrect detection of tones by PBX. By changing parameter „z“ you can switch off this acoustic signalization. The values are: z=0 –... - Page 24 Time between 2 impulses Internal access code 2 impulses External access code in hhhhhh DAY + NIGHT mode for 2 impulses Internal access code for relay in keyboard Dialling type Proling call End call xxxx 0000 Password DAY MODE switching NIGHT MODE switching Dialling mode Number of rings before pick-up...
-
Page 25: Technical Parameters
Deletes all numbers in group 1 (Day mode) Deletes all numbers in group 2 (Night mode) Default setting only only 3.. for parameters 3x Default setting only only 4.. for parameters 4x Default setting only only 5.. for parameters 5x E N D 6 Technical parameters 6.1 Electrical parameters... -
Page 26: Mechanical Dimensions
6.2 Mechanical dimensions Dimensions WxHxD 104mm x 153mm x 16mm Weight 360g Unit material elox aluminium profile Name card panel material acrylglas (plexiglass) 7 Table for easy programming Complete the values you want to program in the empty part of table on the next page. - Page 27 Internal access code for relay in keyboard Dialling type 1 / 0 Prolong call * / # End call Password DAY MODE switching NIGHT MODE switching Dialling mode 1 / 0 No. of rings before pick-up Maximum call duration [min] Time between button press [sec] Off hook time before new...
-
Page 28: Drilling Master Board
8 Drilling master board...
