Person Inside Building; Outgoing Call - Alphatech A-VarioBell User And Service Manual

mode m = 4
Action
Press buttons
mode m = 6
Action
Press of the button
Note

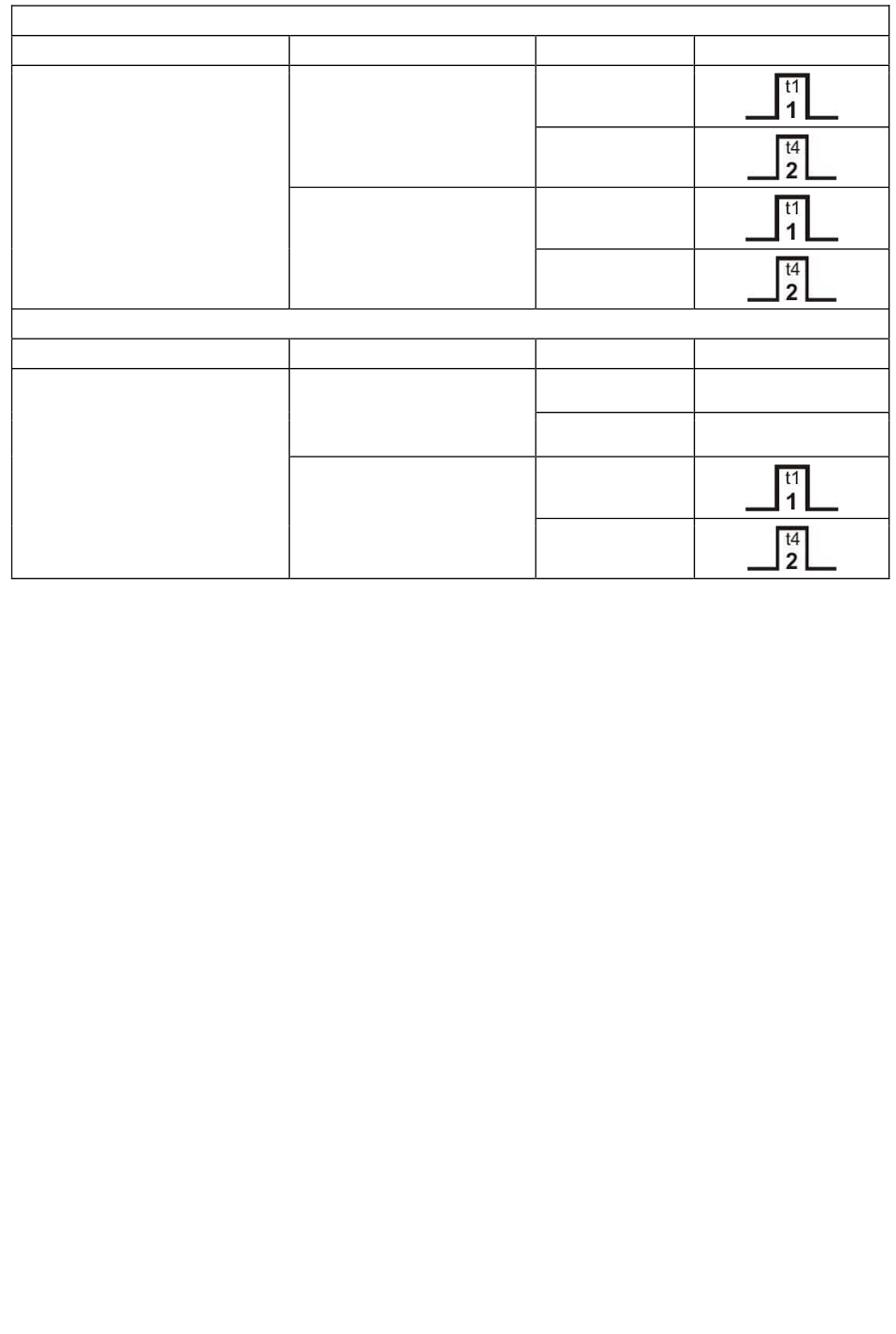

Tab. 1 Relays control table

3.3 Person inside building

The person in the building means the person who is in telephone contact
with the A-VarioBell door phone (Mr.Horacek).

3.3.1 Outgoing call

An outgoing call is a call from the A-VarioBell door phone (i.e. started by
a visitor). Once the system has been dialled, a phone inside of the building
rings and on pick up it is possible to talk to the visitor at the door. By choosing
a code it is possible to switch on a relay (parameter 35) if it is set in mode m=1
or m=5, switch over the Day/Night mode (parameter 45, 46) and disconnect the
connection (parameter 43). 10sec before the end of the call (parameter 52) the
system sends a notice about the end of the call but choosing a code
(parameter 42) it is possible to pro-long the call. By replacing the handset the
call is terminated (the switchboard phone will send a system busy tone and the
system will disconnect). There is one more option, disconnection of line after
repeat pressing of the same button (parameter 4*).
A-VarioBell – User and service manual
34
Note
Any number other than
in 311* or 312*
Button set in 311* or
Note
Any number other than
in 311* or 312*
Button set in 311* or
t1 – time of connection of relay 1 (parameter 371)
t2 – time between impulses of relay 1 (parameter 301)
t3 – time between connections of relay 1 and 2 (parameter 39)
t4 - time of connection of relay 2 (parameter 372)
t5 - time between impulses of relay 2 (parameter 302)
Parameter
312*
Parameter
312*
Relay
3114
3124
3114
3124
Relay
3116
3126
3116
3126
-
-
