Quick Setup Guide for the IP Bell door entry phone station
SIP based door entry intercom
Access control
 access codes via buttons
 optional integrated RFID reader module (EM Marin / HID)
External IP camera connection
 optional connection of an external IP camera (integrated RFID
reader module required)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Bell and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alphatech IP Bell

Summary of Contents for Alphatech IP Bell

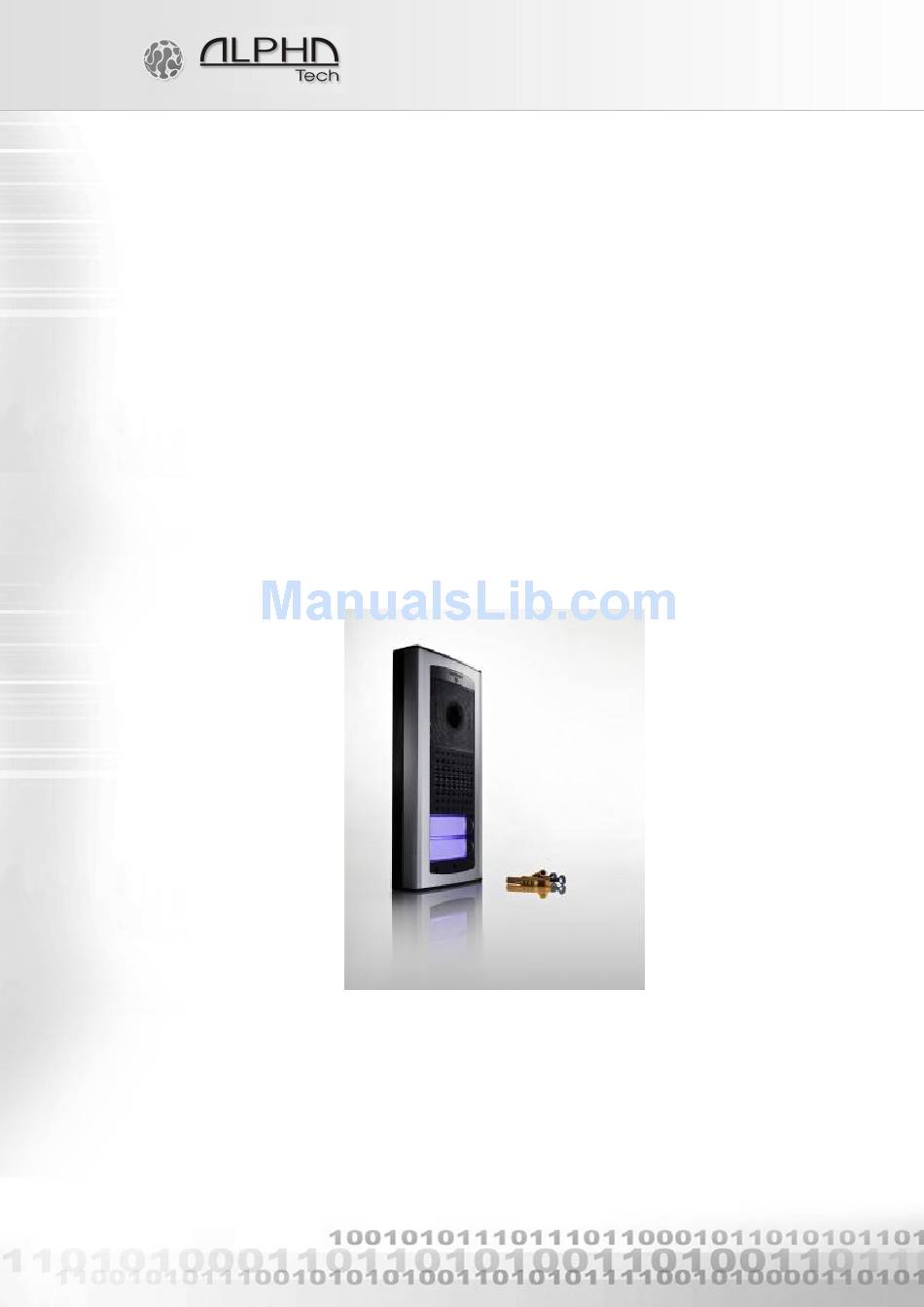

  • Page 1 LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Quick Setup Guide for the IP Bell door entry phone station SIP based door entry intercom Access control  access codes via buttons  optional integrated RFID reader module (EM Marin / HID) External IP camera connection ...
  • Page 2 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Opening the cover  Use a standard screwdriver or you can replace the standard supplied screw by an Allen key screw. Open the cover.  To change the button labels, look at figures below.
  • Page 3 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Wiring and mouting on the wall  Remove the Cover as per above figure.  Feed the Ethernet cable through the cable hole.  Fix the door phone to the wall using a template, screws and rawlplugs. ...
  • Page 4 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz  In order for backlight, heating of the circuit board (to avoid condensation) and to power a lock, a 12VDC 1A power supply is required. Refer to manual.  There are two options to control external devices e.g. Lock, Light, Bell. Either NO (Normally Open) or NC (Normally Closed).
  • Page 5 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Closing the cover  Close the front cover as shown on the figure. Quick Setup  Set the jumper to either peer to peer (without an IP PBX or IP Telco) or SIP server for the door phone to register against an IP PBX or IP Telco.
  • Page 6 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Customer at front door (Door Phone) When a customer comes to the front door, he presses one of the buttons, the unit then dials the destination number or IP address that is preprogrammed. The staff member answering the call, can talk to the customer at the front door and to let the staff member in the front door, the staff member presses 55 on his handset to open the door.
