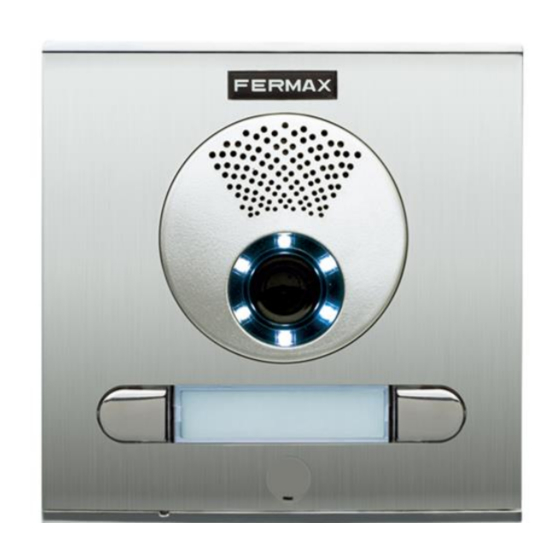

Sip doorphone station
Hide thumbs

Advertisement

Table of Contents

A
T
s.r.o
.
LPHATECH
ECHNOLOGIES
Jeremenkova 88, Praha 4, Czech Republic
www.alphatechtechnologies.cz

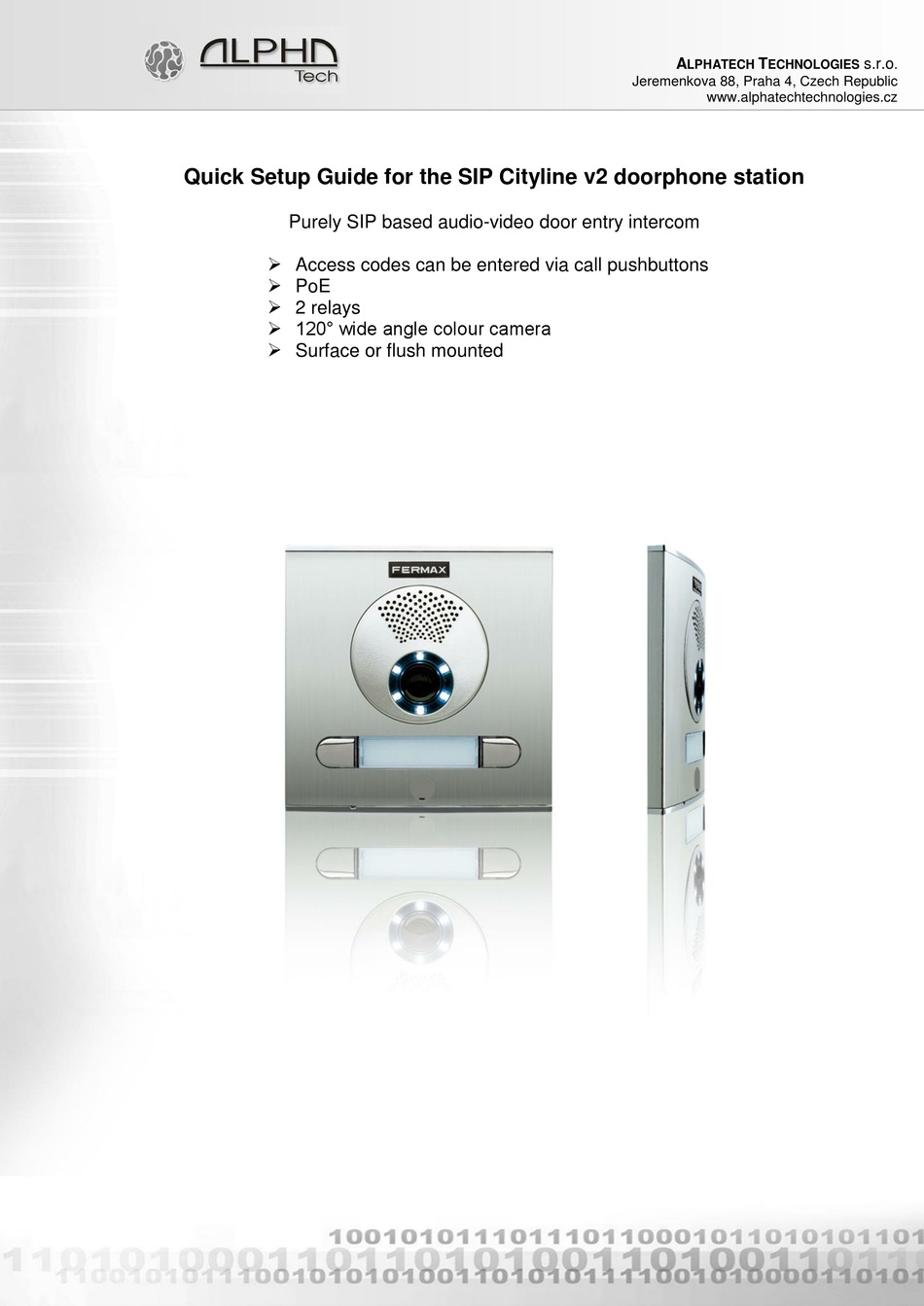

Quick Setup Guide for the SIP Cityline v2 doorphone station
Purely SIP based audio-video door entry intercom
 Access codes can be entered via call pushbuttons
 PoE
 2 relays
 120° wide angle colour camera
 Surface or flush mounted

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fermax Cityline v2 and is the answer not in the manual?

Questions and answers

Related Manuals for Alphatech Fermax Cityline v2

Summary of Contents for Alphatech Fermax Cityline v2

  • Page 1 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Quick Setup Guide for the SIP Cityline v2 doorphone station Purely SIP based audio-video door entry intercom  Access codes can be entered via call pushbuttons  PoE  2 relays ...
  • Page 2 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Installation and changing the label  Use a supplied Allen key to access the doorphone, see figure below.  To change the button label, look at figure below.  The waterproof tapes are an indispensable component for the SIP Cityline v2 doorphone. Stick it to the doorphone as shown on the figure below before fitting the doorphone into its installation box making sure that no holes are left for water and dust filtrations.
  • Page 3 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Wiring and mouting on the wall  Fix the surface box or the flush box of the doorphone to the wall using a template, screws and rawlplugs.  Feed the Ethernet cable through the cable hole. ...
  • Page 4 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz  In order for backlight and to power an electrical lock, a 12VDC/1A power supply is required. Refer to the figure below, point 11. The doorphone can be also PoE powered according to IEEE802.3af norm.
  • Page 5 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Relays wiring connection examples  We can supply many examples of correct wiring connections of the doorphone´s relays. Some examples are shown below. If you need any other examples, please write to support@alphatechtechnologies.cz...
  • Page 6 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Programming the Door Phone  Change your PC IP address within the range of 192.168.1.x  Open your browser and point to 192.168.1.250  Enter username: admin password: 1234  The configuration menu has been developed as easy to understand and follow.
  • Page 7 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Firmware The latest FW can be found here: http://www.alphatechtechnologies.cz/en/firmware-update-ip-bold/ FW of IP BOLD is compatible with SIP Cityline v2 doorphones MJPEG video stream of the camera The doorphone is setup in default to 192.168.1.250. If you have not changed its default IP address, then you can find the video stream at this address: http://192.168.1.250/video.mjpg...
