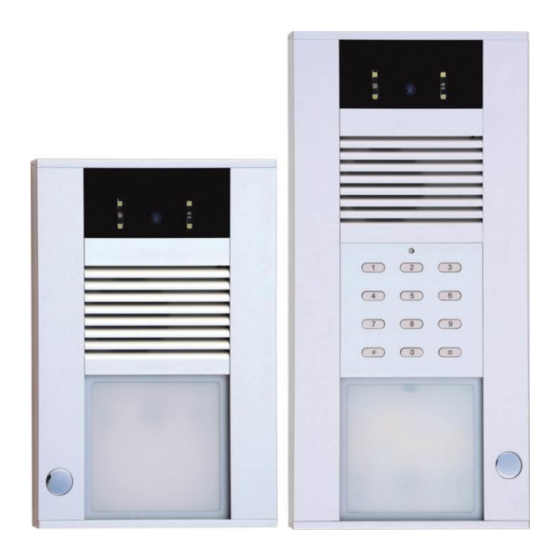

IP BOLD - Door Phone
IP BOLD – Tx
IP BOLD – TxC
IP BOLD – TKx
IP BOLD - TKxC
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Bold series and is the answer not in the manual?

Questions and answers

Related Manuals for Alphatech IP Bold series

Summary of Contents for Alphatech IP Bold series

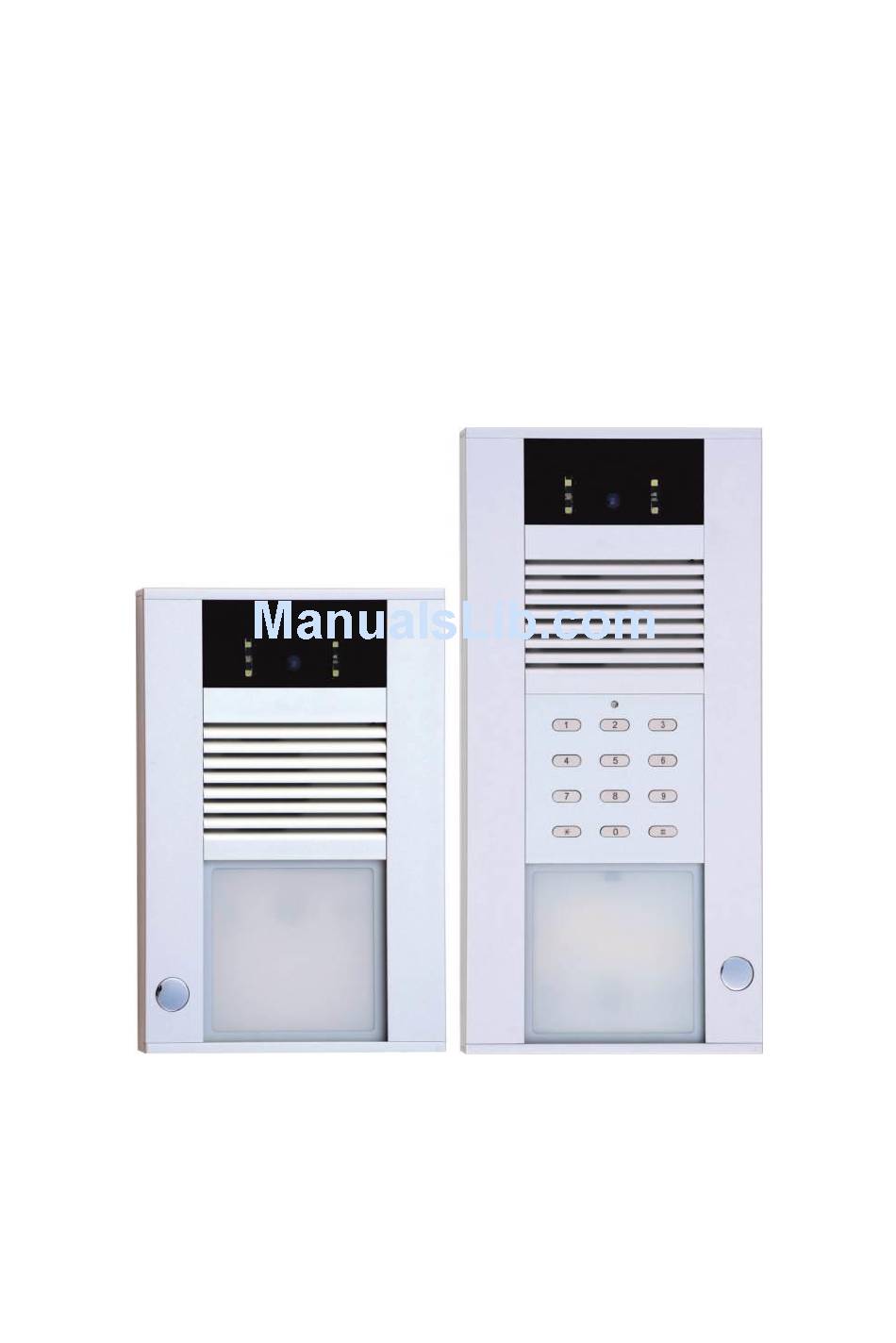

  • Page 1 IP BOLD - Door Phone IP BOLD – Tx IP BOLD – TxC IP BOLD – TKx IP BOLD - TKxC Installation and operating instructions...
  • Page 3 At www.alphatech.cz you can also find latest versions of user documentation. Manual version V1.5 22-12-2016 Valid for firmware – V3.4.xx Alphatech spol. s r.o. Jeremenkova 88 140 00 Praha 4 Tel/fax: 272103334 www.alphatech.cz info@alphatech.cz...

  • Page 4: Table Of Contents

    Contents BASIC DESCRIPTION ..................6 ...................... 6 EATURES ..................7 SED TERMINOLOGY ................9 ODULES COMPOSITION IP BOLD ................12 CONNECTION 1.4.1 IP BOLD basic board ................12 1.4.2 Relays connection ................... 15 1.4.3 PoE ......................19 1.4.4 Usage of door contacts ................19 IP BOLD ................
  • Page 5 3.4.3 Door sensors ................... 51 3.4.4 Setting SNMP ..................53 3.4.5 Time profiles ................... 54 3.4.6 Date and time setting ................56 3.4.7 E-mail ..................... 57 ..................59 XTENDED SETTING 3.5.1 DoorPhone ....................59 3.5.2 Audio setting ................... 62 3.5.3 Audio codecs ...................

  • Page 6: Basic Description

    1 Basic description 1.1 Features  audio is full duplex with ECHO cancellation  phone book for 999 subscribers (when keypad is used)  every subscriber has more phone numbers with progressive simultaneous calling  Email sending when is unreachable including attachment with pictures ...

  • Page 7: Used Terminology

    1.2 Used terminology  Incoming call - Connection between a Brave and a phone made by selecting an option on the phone. The Brave connects the call after set number of rings. The Brave can be programmed from the phone following a connection by inputting a password.
  • Page 8  DHCP (Dynamic Host Configuration Protocol) is application protocol from family TCP/IP. It is used for automatic assign of IP adresses to individual computers in PC network. Due this simplify its management  Internet is worldwide system of mutually connected PC networks ...

  • Page 9: Modules Composition

    1.3 Modules composition Door entry IP BOLD includes modern technology, timeless design and user friendly installation and service. Door entry IP BOLD is equiped by 2 relays and PoE feeding. Basic models are different by using of keypad or full colour wideangle camera. Version with camera has integrated fully colour wideangle camera on basic board.
  • Page 10 IP BOLD-TK1C IP BOLD-TK4C IP BOLD - installation and operating instructions...
  • Page 11 Next is possible IP BOLD equipt by roof For short model without keyboard Roof small (BOLD Shield S) Roof big B - Tx (BOLD Shield B) For long model with keyboard Roof small (BOLD Shield S) Roof big K - TKx (BOLD Shield K) IP BOLD - installation and operating instructions...

  • Page 12: Ip Bold Connection

    1.4 IP BOLD connection The IP BOLD includes basic board differently equipped. To the basic board is possible connect 1 or 2 button boards. Further is possible connect keypad in version TK. 1.4.1 IP BOLD basic board The basic board is the same for all models of IP BOLD door entry. The difference is just camera module ( with or without).
  • Page 13 9. The LED to control network activity, green = connection 100M LAN, yellow = data transmission on the LAN 10. Connector to Conner keypad module 11. DIP switch – allways ON (servis purpose only) – OFF, when is ON during start then default IP adress 192.168.1.250 is setup and use default style.
  • Page 14 IP BOLD - installation and operating instructions...

  • Page 15: Relays Connection

    1.4.2 Relays connection Relay contacts connection (3) and (4) is on the picture. Marking "NO" menas in stand by open contact, "COM" means shared output (middle) and "NC" means in stand by closed contact. Contacts of both relays are mutually galvanically isolated as same as isolated from othe IP BOLD components.
  • Page 16 Possibilities of relays connection are at following pictures: IP BOLD - installation and operating instructions...
  • Page 17 IP BOLD - installation and operating instructions...
  • Page 18 1. Standard electrical lock connection. This connection is used most often. One shared power supply feeding door entry IP BOLD and both electrical loch. Current loading of PSU depends mainly on used el. Locks. Standard el. Lock has current consumption 0,6A – 1,0A. As next you have to consider posibility of both relays activation simultaneously.

  • Page 19: Poe

    1.4.3 PoE The IP BOLD is equiped by circuit for powering via UTP cable – PoE. When you have IP switch with PoE, or you have PoE PSU (box of adapter size inserted into UTP cable input – according directive IEEE802.3af) then you dont need extra 12V PSU for door entry powering.
  • Page 20 IP BOLD - installation and operating instructions...

  • Page 21: Installation Of Ip Bold

    1.5 Installation of IP BOLD 1.5.1 Wall mounting installation Installation place To reach good video quality the camera must not point directly to • sun lighting • strong light sources • light orstrongly reflective walls Installation height Installation height of outdoor video station should be selected according camera scan range (via picture).

  • Page 22: Montage Dimension

    1.5.2 Montage dimension (model without keyboard) IP BOLD - installation and operating instructions...
  • Page 23 1.5.3 Montage dimension (model with keyboard) IP BOLD - installation and operating instructions...

  • Page 24: Open And Close Of Cover

    1.5.4 Open and close of cover Cover opening Bottom lath is connected to profile internal sixedge screws (1) Screw up to middle way by enclosed key those screws (2) turn bottom lath to left without its complete taking (3) slide out name card plexi Cover closing Slide name plexi under lath Turn bottom lath to right to...

  • Page 25: Name Cards Changing

    1.5.5 Name cards changing Name cards writing Templates you will find on our website www.alphatech.cz 1. Write desired names into template. 2. Print out name cards to special foil* and cut them of. 3. Release pockets on external edge of name plexi by delivered plastic board.

  • Page 26: Micro Sd Card

    1.5.6 Micro SD card Micro SD card is used to save users sound files and in near future also to save pictures, video, as record machine. When you select users tone and microSD will not be inserted then tones of basic signalling will be used.

  • Page 27: Service Of Ip Bold

    2 Service of IP BOLD 2.1 Signalling overview The door entry IP BOLD signalling acustically stages which occurs during operation. Further signalling is by 2 colour LED (placed right under black plexi). Acustical signalling for each status mentioned in bellow table might be switched off or might be used default tones “beeping”...

  • Page 28: Button Press - Code Lock

    1. Phone book position for selected button must be permitted 2. Must be fill min. 1 from 5 phone numbers (or IP adresses in P2P mode) 3. At filled phone number is active time plan in appropriate time or no plan is selected.

  • Page 29: Call

    fiction as button press). End of call you can make allways by button press When keypad is connected the fiction of code lock is extended I tis possible use whole range of codes (numerals 0-9). The code for relay activation is differentiate from phone number dial by pressing in the begining.

  • Page 30: Video

    At models with camera is possible received video as follow: - IP phone with LCD display - PC – WEB browser - PC with programm UDVguard (www.alphatech.cz) - PC with general programm for video watching (for example VLC) - Android device (smart phone, tablet) UDVguard (Google Play) - Apple device (smart phone, tablet) UDVguard (iTunes) Video formats: JPG, MJPG, H.263, H.264...

  • Page 31: Parametres Programming

    3 Parametres programming Parametres programming is performed by ordinary WEB browser. (Caution! version of IE V7 and lower are not supported). 3.1 WEB interface access For successful display of WEB interface of IP BOLD door entry we go through some details. Field length - names, titles, codes, passwords have fix length 40 characters.

  • Page 32: Login

    2. Generally in PC setup you program temporarily own IP address.In PC door entry segment for example 192.168.1.10. After change of door entry IP address you have return setting in PC back. Then you can setup parameters of door entry including IP address and after restart of IP BOLD door entry you can login to door entry WEB page on new IP adress.

  • Page 33: Current Status

    3.2 Current status Current status display basic data about IP BOLD door entry status. It displays Firmware version,door entry model, options connection (camera, keypad), SD card, MAC adresses, current time, network setting, door entry mode (P2P or SIP server), registration status and small calls statistic. IP BOLD - installation and operating instructions...

  • Page 34: Language Settings

    3.2.1 Language settings After language selection please don’t forget click on „Save“. On the right top corner is display flag of current used language in whole WEB interface. After click on flag accessible language will be displayed. After language selection please don’t forget click on „Save changes“ otherwise language selection wont be performed.

  • Page 35: Ip Network Setting

    3.3 IP network setting 3.3.1 IP Network setting Network settings you find in menu „Network setting“. You can select using of fix IP adress or dynamically assigned by using DHCP. Configuration of fix IP adress: After performing of required changes please don’t forget click on „Save and restart“.
  • Page 36 NAT policy - there is the choice of what kind of translate IP addresses used NAT address - used for network traffic through the router (modifies transcription of the original or destination IP address) STUN address - the IP address of the STUN server (see. page. 7) DHCP configuration: After performing of required changes please don’t forget click on „Save and restart“.
  • Page 37 Important: if you use DHCP setting then DHCP assign IP address to door entry automatically and network administrator will assure your current IP address to be able watch video in WEB browser. Therefore this dynamically assigned IP address might be changed due for example power failure we recommend use dooe entry IP BOLD with fix IP adress.

  • Page 38: Sip Setting

    3.3.2 SIP setting The door entry IP BOLD might operates in 2 basic SIP modes. It is either SIP server – door entry registration is performed to SIP server and then you call to phone numbers assigned by SIP server or Peer to Peer (P2P) – door entry call exact IP adress and SIP server services can´t be used.
  • Page 39 Account - unit name in SIP protocol (usually line number or name without diacritics) Auth.ID - name for SIP server registration Password - password for SIP server registration Send register – when registration is necessary (mostly yes) then this parametr must be used Registration server - IP adress or server name of registration server (in most systems and installations is enough to insert IP adress).
  • Page 40 Peer to Peer mode (P2P) After performing of changes please don’t forget click on „Save“. Display name – name by which is device presented in network (for example will display as door entry name in programms UDV panel, UDVguard) SIP User Agent – for easy inastallation is possible use the SIP user agent.
  • Page 41 SIP Transport - TCP or UDP, or automatic selection (TCP + UDP) Provisional code - determine if during ringing will be sends SIP code „180 Ringing“ or „183 Session progress“ Enable symetric RTP - by mark is ON. It means that door entry will not sends by itself audio to RTP called party, but wait for called party to send RTP.

  • Page 42: Web Server

    3.3.3 WEB server After performing of changes please don’t forget click on „Save and restart“. WEB interface TCP port – posibility of chase usuall TCP port 80 to other (security reasons) Service password / Retype password – inserting of new access password (instead default password 1234) –...
  • Page 43 Video password – inserting of new video access password (instead default password 1234) – length max.40 characters (name for video access is video) Enable telnet – available only for special customization. posibility ON / OFF access from telnet (name: root, pass: 8765). telnet is not recommended, in practice, this possibility has caused a lot of problems.

  • Page 44: Basic Setting

    3.4 Basic setting In this part are setup user and most often changed parametres. 3.4.1 Phone book After performing of changes please don’t forget click on „Save“. The phone book contents 999 subscribers. For first 99 subscribers agree subscriber number with button number. In this version of door entry – IP BOLD is max = 4 button.
  • Page 45 Position number in phone book is selected at top bar by click on appropriate numeral. It is possible also listed by 10 (</>) or go to exact position (all by selection in first – highlighted – row). The 999 subscribers has a sense when keypad is used (models TK) and eventually using touch display for selective subscriber selection from phone book.
  • Page 46 Time table – when is not selected then 5th number is allways active. Usage of 5th phone number might be limited by time plan Calling - allows create groups – via follow. External code for relay 1,2,3,4 – here insert priváte codes for code lock. The code lock might be completed from door entry buttons (mean according buttons 1 –...

  • Page 47: Relays

    3.4.2 Relays After performing of changes please don’t forget click on „Save“. In relays setting are accessible 4 relays. The relays 1 and 2 is output of relays contacts directly in IP BOLD door entry. Next 2 relays (3 and 4) is possible use for remote relays (IP relays via follow) or as virtual relay usefull for synchronization to allows creation of more difficult functions of relays.
  • Page 48 Time table – defines time period when relay is working and hen not. For example is shop operation time , school, etc.. Relay mode - monostable – by code is closed and after preprogrammed timeout is open. Using for electrical lock switching, sliding gates control, button press signalling etc...
  • Page 49 Synchronize delay – time between synchronization start and its evaluation. Usage for example in more relays closing combination for one code Active on call – options are none (calling has no influence for relay status) incoming call – relay closed during incoming call. The monostable for preprogrammed time.
  • Page 50 control of mechanical bell. During button press is relay activated in monostable mode for closing time. If in the phonebook filled for this button telephone number then be combined with relay closing with calling telephone number. RC command at relay ON – Enable setup command sends to external device (for example WEB relay) during relay closing.

  • Page 51: Door Sensors

    3.4.3 Door sensors Door sensors are special functions of door entry IP BOLD which is optional. It is HW option which is different according button number of each model – inputs for door sensors. There is created information in the system about close/open the door.
  • Page 52 Input door sensor 1 / 2 Exit button – relay 1-4 – because the use of door sensors not found so wide usage, so these can be used as two inputs to the function Exit button. When the input connections (short) so activates the corresponding relay (switch monostabil) .

  • Page 53: Setting Snmp

    3.4.4 Setting SNMP Remote management – SNMP is internet protokol designed for network management. It allows progressive data collection for network management purposes and its following evaluation. After performing of changes please don’t forget click on „Save“. Enable SNMP – by mark you activate remote management (SNMP) Community –...

  • Page 54: Time Profiles

    which are OID maped. The numeral identification in range of each undertree is not Unixe that is why OID is sent allways as whole unit. 3.4.5 Time profiles After performing of changes please don’t forget click on „Save“. In time profiles setting is available 10 profiles. Profile selection is perform by click in top highlighted row –...
  • Page 55 Code for activation / deactivation– immediate switching status profile by using DTMF. If you switch the time profile, then change it takes to meet the closest in time profile changes (according to the times in the table) or switch to another state using DTMF. Active –...

  • Page 56: Date And Time Setting

    3.4.6 Date and time setting After performing of changes please don’t forget click on „Save“. Time zone – selection of installation time zone Network time server – IP adress or domain name of NTP server. When you dont know then by inserted * will IP BOLD find NTP server automatically according own selection.

  • Page 57: E-Mail

    3.4.7 E-mail When you want inform subscriber about missed calls from door entry you can setup IP BOLD to sent out email after every missed call. You can setup own subject and text of email. When you have door entry with camera you can automatically add to email one or more pictures from camera.
  • Page 58 SMTP port – adjust in case of none standard SMTP server setting only. SMTP port is setup usually on value 25, but better is use port 587. SMTP, there are three systems: Port 25 not allow encrypted - it is marked as obsolete, insufficient safety Port 465, not a domain hosting - is labeled as not recommended at Port 587, has no maladies previous two, is currently the only...

  • Page 59: Extended Setting

    3.5 Extended setting This part is designed for system setting which are done once during installation or when are problems with device kompatibility. 3.5.1 DoorPhone After performing of changes please don’t forget click on „Save“. Ringing timeout – time for which is ringing. When is setup more numbers as same as progressive ringing then after this time ringing is ended on first phone number (IP adress in P2P) and starts ringing on second.
  • Page 60 Maximum call duration – when call is picked up timer for call duration limit is activated. When you insert empty, then there is no limit. The 10sec before call end you hear tone after which you can dial character for call prolongation and by this prolong the call about same time period.
  • Page 61 Camera light – wideangle camera has posibility of extra lighting when light conditions are not acceptable. The lighting provils by white LEDs (unfortunately infra LED cant be used but advantage is fully colour picture). The door entry has dark sensor and you have following options of lighting: - OFF, LEDs will never light - during conversation, LEDs are allways lighting during call...

  • Page 62: Audio Setting

    3.5.2 Audio setting After performing of changes please don’t forget click on „Save“. Speaker volume + Microphone gain – amplification setting ECHO limiter – it is designed for Echo cancellation which is created by distortion of loud signal.During standard door entry call is working automatic adaptive echo canceller which cancel the echo after cca 3 seconds of talk and call is full duplex.

  • Page 63: Audio Codecs

    - default, simple signalling in default setting - user, this is recorded signalling by user ( SD card) -via. Service Volume – loudness signalling adjustment 3.5.3 Audio codecs After performing of changes please don’t forget click on „Save“. Priority – setting of codecs priority for usage. Some audio codecs requires payable license (for example G729) –...

  • Page 64: Video Setting

    3.5.4 Video setting After performing of changes please don’t forget click on „Save“. Image size– image size selection. Stream H.263 knows just CIF resolution (352x288) so bigger image is cut and smaller image is framed Images per second – this setting concern mainly image transmission to WEB browser.

  • Page 65: Video Watching (Popup Programm)

    Further very popular video watching is using PopUp programm UDVpanel for Windows. This programm including user guide you can download for free on http://www.alphatech.cz/program-udv-guard.html. Except showing video has programm following features: - During call is automatically activated from Windows bar to front and show image from door entry IP BOLD.

  • Page 66: Video Codecs

    3.5.6 Video codecs After changes performing please don’t forget click on „Save“. Priority – setting of codecs priority for usage . Compatibility – Due some of VOIP phones producers specialities you have to use in certain cases extra setting: Yealink – phonesYealink SNOM –...

  • Page 67: Streaming

    3.5.7 Streaming After changes performing please don’t forget click on „Save“. Enable streaming – permitted / prohibited to provide video (H.263 and H264) by door entry IP BOLD (server) protocol RTSP on port 554. To receive such video you need some standard stream video players (IP TV or for example Grandstream, MPlayer, VLC etc…).
  • Page 68 Multicast adress – by inserting IP adress you permit sending RTP packets to selected multicasting adress. JPEG image quality – you insert percentage of video coding quality IP BOLD - installation and operating instructions...

  • Page 69: Service

    3.6 Service This part contents service functions. 3.6.1 Restart By click on „Restart“ button you make door entry reset. IP BOLD - installation and operating instructions...

  • Page 70: Configuration

    3.6.2 Configuration The door entry IP BOLD allows saving of current setting to PC or other repositury. From this saved file you can later restore this setting in a few levels – for example phone book only. It helps for example during installation of door entry in more entries to the building.

  • Page 71: Language And Style

    Default network and SIP – make default setting of network (IP adress 192.168.1.250) and erase SIP setting Default Others – all remains parametres put to factory setting By click to „Make” will be done required setting/erasing door entry parametres. 3.6.3 Language and style Load style file –...

  • Page 72: Style And Language Preparation

    This is part of style file with logo include – red is required, green is optional … </style> <div class='container-div'> <div class='header-div'> <div class='header-sub'> <h2>ALPHATECH &nbsp; <img src="/logo.gif" align="center" width="190" height="55" alt="Alphatech spol. s r.o."></h2> VoIP doorphone IP BOLD <div class='header-right'> INCLUDE_FLAG </div> … IP BOLD - installation and operating instructions...
  • Page 73 To create new language we recommend following steps. Firstly make export of language file (language version of exported file is simultaneously selected language ( flag in right top corner). Rename this file to new language and open in text editor (PSPad is recommended because file has rows ended by LF only and no CR+LF as usual).

  • Page 74: Firmware Upgrade

    3.6.5 Firmware upgrade Firmware version – display present firmware version in door entry IP BOLD Choose firmware file – by click to empty field select file with firmware (for example apt.firmware it is not file *.zip, but already unzip file – on website are firmware files packed to archive *.zip) In Windows is display proces so firmware upgrade.

  • Page 75: Logfile

    Download log file – after activation of enhanced log perform action which doesnt work correctly and immediatelly after performing click on button „Make”. You save like this record of extended log file into file which you send to info@alphatech.cz for further analyses (see procedure. below). IP BOLD...
  • Page 76 2. Perform the action that you are interested in, where you have the problem 3. Immediately download the LOG file uploaded to your PC 4. This file be attached to e-mail a brief description of the problem and send (email contacts on www.alphatech.cz) IP BOLD - installation and operating instructions...

  • Page 77: License

    3.6.7 License This page allows extend door entry features about payable functions via licenses.For example audio codec G729. After payment you receive license number by email License validity shows if license is working correctly. The license code is connected to MAC number of door entry. IP BOLD - installation and operating instructions...

  • Page 78: Sound Files

    3.6.8 Sound files This page is designed for recording own (user) sounds signalling. By click on „Play“ will be played currently active sound file (selection is permormed on page „Audio setting“ eventually sound of relay closing on page „Relays“). Attention files are recorded on a microSD card! Audio files: WAV –...

  • Page 79: Technical Parametres

    4 Technical parametres 4.1 Electrical parametres Parametr Value conditions Interface Ethernet 10BaseT, 100BaseTx VoIP protocol SIP 2.0 defined RFC3261 Default IP address 192.168.1.250 G.711u, G.711a, G.726-32b, GSM, G722, Audio G729 (optional) 300Hz – 3400 Hz Band range Echo supression automatical Output power Class D, 1W/8ohm, 94dB/1kHz/1m/1% série JPEG, MJPG, stream H.263, H.264...

  • Page 80: Video Parametres

    4.3 Video parametres Video formats: JPG, MJPG, H.263, H.264 Video for WEB: Internet Explorer, Mozilla, Opera, Firefox… - (set of JPG pictures - Port 80) it is used repeated http request „IPaddress/video.jpg“ programm PopUp (UDVguard) - (MJPEG stream - Port 80) is used http request „IPaddress/video.mjpg“...

  • Page 81: Requests

    4.3.1 Requests VIDEO: http:// IPaddress /video.jpg MJPG - http:// IPaddress /video.mjpg H.263 - rtsp:// IPaddress /video.263 H.264 - rtsp:// IPaddress /video.264 RELAYs: http:// IPaddress /relay_control?1=on http:// IPaddress /relay_control?1=off http:// IPaddress /relay_control?2=on http:// IPaddress /relay_control?2=off http:// IPaddress /relay_control?3=on http:// IPaddress /relay_control?3=off http:// IPaddress /relay_control?4=on http:// IPaddress /relay_control?4=off BUTTONs:...
  • Page 82 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. Particularly the warranty does not cover damage from improper intervention via Telnet.
  • Page 83 © Alphatech spol. s r.o. 2014-2016 version V1.5...
