1.6.2 Example of modules connection VBD5-mod

Mutual connection is provide by flat cable K1. In example is used basic
module with 1 button (rameter 6# = 1
definována.) and in connection is also used keypad module VBDKey. Modules
numbering is setup by DIP switches (6) showing allways next to appropriate
module. Buttons number response to description in left column next to
modules. Keypad module is identify automatically and there is no neccessity of
any setting. Connection place is various. When cables K1 will be connected
alternately nothing will happen and numbering will be kept. (defined by DIP
switches on each module).

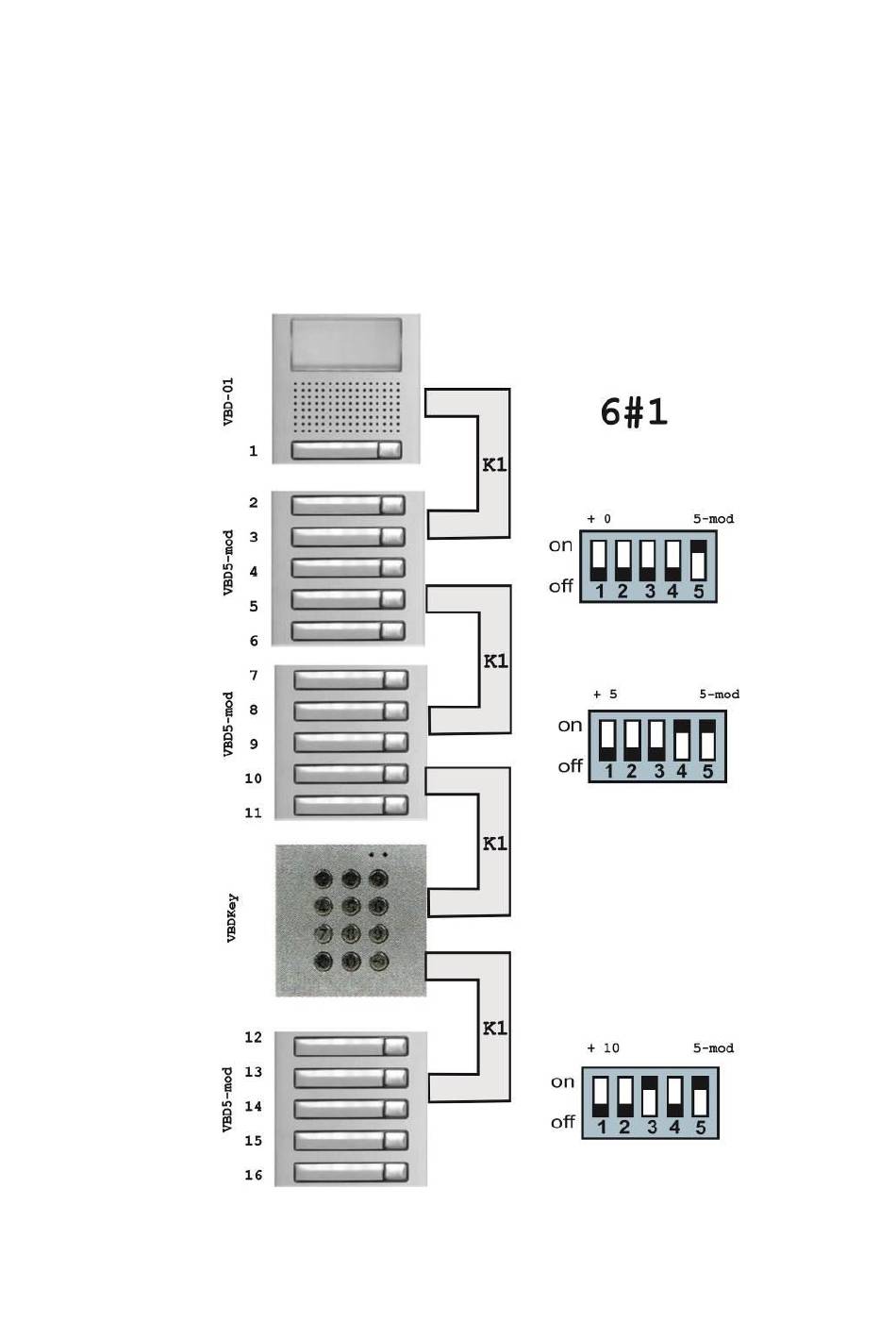

Picture 4: Mutual connection of modules A-VarioBell VBD5-mod
via page Chyba! Záložka není
