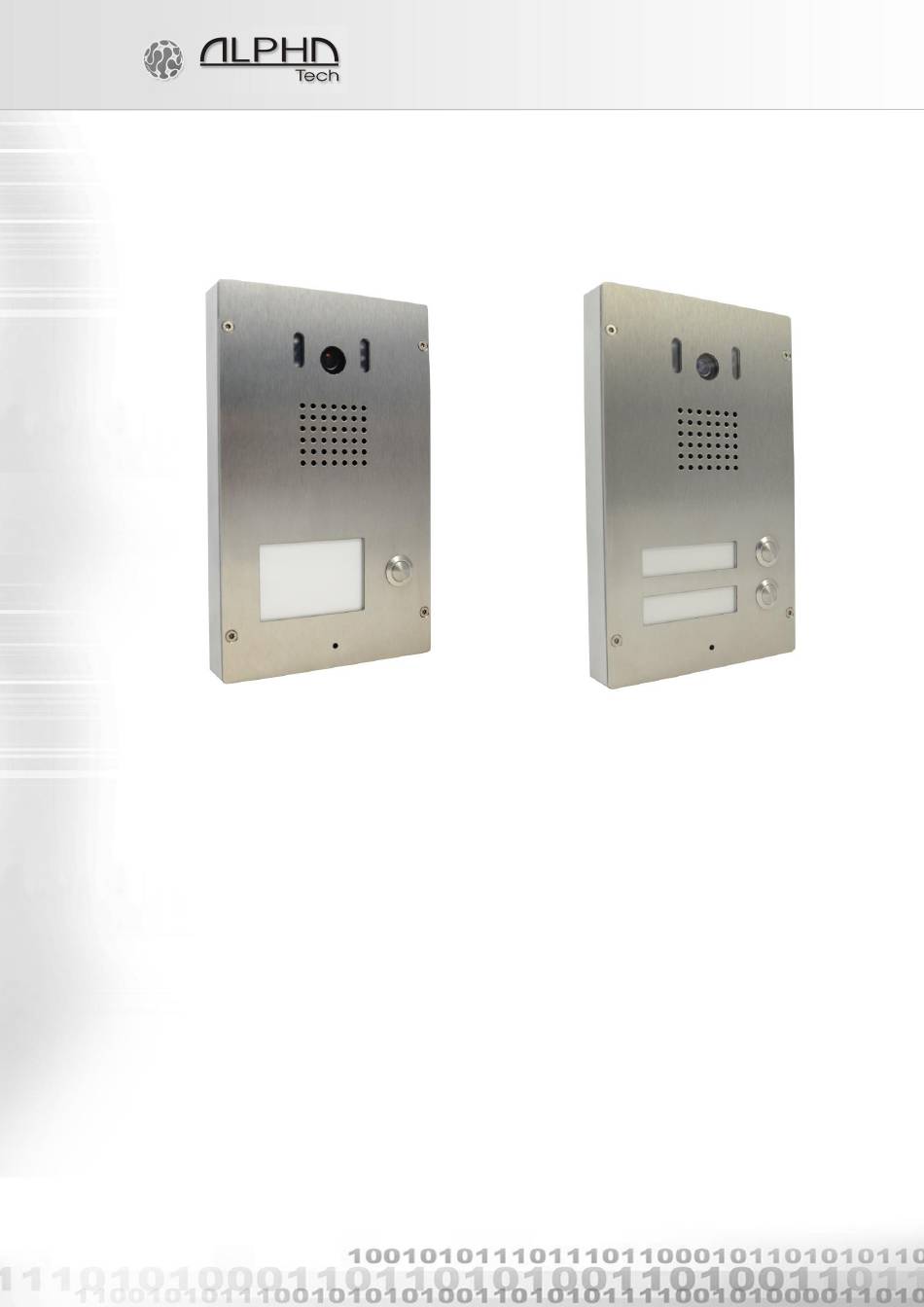

IP BOLD65 quick setup guide

Firts steps before you start programming the unit

Warning: before you start working with the unit, please read instructions below to avoid losing the

warranty.

Item No. 230501 IP BOLD65 T1C

Item No. 230502 IP BOLD65 T2C

141 00 Praha 4

Need help?

Do you have a question about the IP BOLD65 series and is the answer not in the manual?

Questions and answers

Summary of Contents for Alphatech IP BOLD65 series

Page 1 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz IP BOLD65 quick setup guide Firts steps before you start programming the unit Warning: before you start working with the unit, please read instructions below to avoid losing the warranty. Item No.

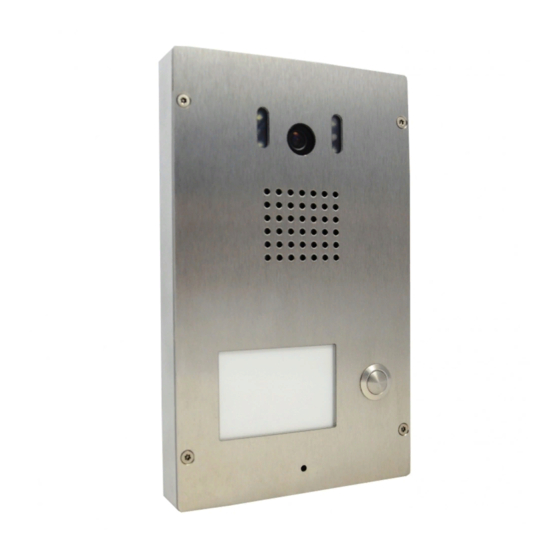

Page 2 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Thank you for purchasing the IP BOLD65 video doorphone. Initially select your correct place of installation to achieve the best results. IP BOLD65 is designed to be surface mounted. Before mounting the IP BOLD65, please check that the place of installation meets the following requirements as shown at the Fig 1 below.
Page 3 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Fig 2. IP BOLD65 mounting plate 141 00 Praha 4...
Page 4 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Before you connect the IP BOLD65 to your network, let´s make a few initial steps. On Fig 3 below you can see the contents of the packing box. Fig. 3 Contents of IP BOLD65 T2C packing. 4x wall plug, 4x twist screw with rubber rings, 1x rubber bushing for leading in the cables and wires, 1x allen key.
Page 5 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Open the IP BOLD65 using the supplied allen key, see Fig 4 below. Open the top front cover slowly and carefully. As you can see on the Fig 4 below, the call buttons are connected to the main board via the yellow/white/green cable, so make sure you do not damage it.
Page 6 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Slowly and carefully, unscrew the illuminated name/house number module using a cross head screwdriver, see black arrows at Fig 6 below on the left side. Be careful, the illuminated module is connected to the main board via a black cable, so unscrew and detach it slowly and carefully to avoid damaging the connection cable, the cable connector or the illumimated info module.
Page 7 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Ethernet UTP cable, the power supply adapter cable and relay wires need to be lead through the IP67 rubber bushing, see Fig 8 below. Fig 8. Use the rubber busing with IP67 impregnation rating to avoid any leakages inside the unit 141 00 Praha 4...
Page 8 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Use the IP67 rubber busing for leading the cables and wires inside the IP BOLD65 unit. Fig 9. Use the IP67 rubber busing to avoid any leakages inside the unit Use the IP67 rubber busing for leading the cables and wires inside the IP BOLD65 unit.
Page 9 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Use the rubber busing to avoid any leakages inside the unit Fig 11. Use the rubber busing to avoid any leakages inside the unit 141 00 Praha 4...
Page 10 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Before closing the top front cover of the IP BOLD 65 unit, always use screws with rubber rings to avoid any leakages inside the unit. There are 4 screws holes for 4 screws with rubber rings, two at the top and two at the bottom of the unit.
Page 11 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Power supply: via PoE (according to IEEE802.3af) – see the Fig. 13 and Fig. 14 below or via an optional, external power supply adapter 12VDC/1A (recommended) or 12VAC/1A Fig. 13 – ETH UTP cable connection, PoE enabled Ethernet UTP cable connection (also see the figure 13 above): Fig.
Page 12 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz IP BOLD65 has two physical relay contacts on the main board. See Fig 15 below Fig 15 Relay contacts of the IP BOLD65 doorphone It is recommended to use for IP BOLD65 PoE powering (according to the directive IEEE802.3af) or AC voltage min.11VAC input - max.15VAC input or DC voltage min.12VDC - max.18VDC.
Page 13 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz At Fig 17 and Fig 18 below you can see several examples of relays use Fig 17 Examples of relays use 141 00 Praha 4...
Page 14 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Fig 18 Examples of relays use 141 00 Praha 4...
Page 15 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Changing the name plate (paper label), Fig. 19 below. Name plate size is 78x54mm. Print your text on the white paper label and fix the paper label (name plate) with a fixing, transparent adhesive tape to the upper and lower part of the illuminated info module to avoid moving the paper label.
Page 16 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Click on icon Setup, see Fig 21 below to enter the web interface setup menu of IP BOLD65 Fig 21. Click on Setup to enter the web interface setup menu The initial status page of the web interface, see Fig 22 below Fig 22.
Page 17 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Then follow the standard setup user´s guide of IP BOLD65 doorphone: http://www.alphatechtechnologies.cz/en/products/voip-door-phones/ip-door-entry-phone-station-ip-bold/ The latest available firmware: http://www.alphatechtechnologies.cz/en/firmware-update-ip-bold/ The latest news including user´s guide of IP BOLD65: http://www.alphatechtechnologies.cz/en/products/voip-door-phones/ip-door-entry-phone-station-ip-bold/ 141 00 Praha 4...
