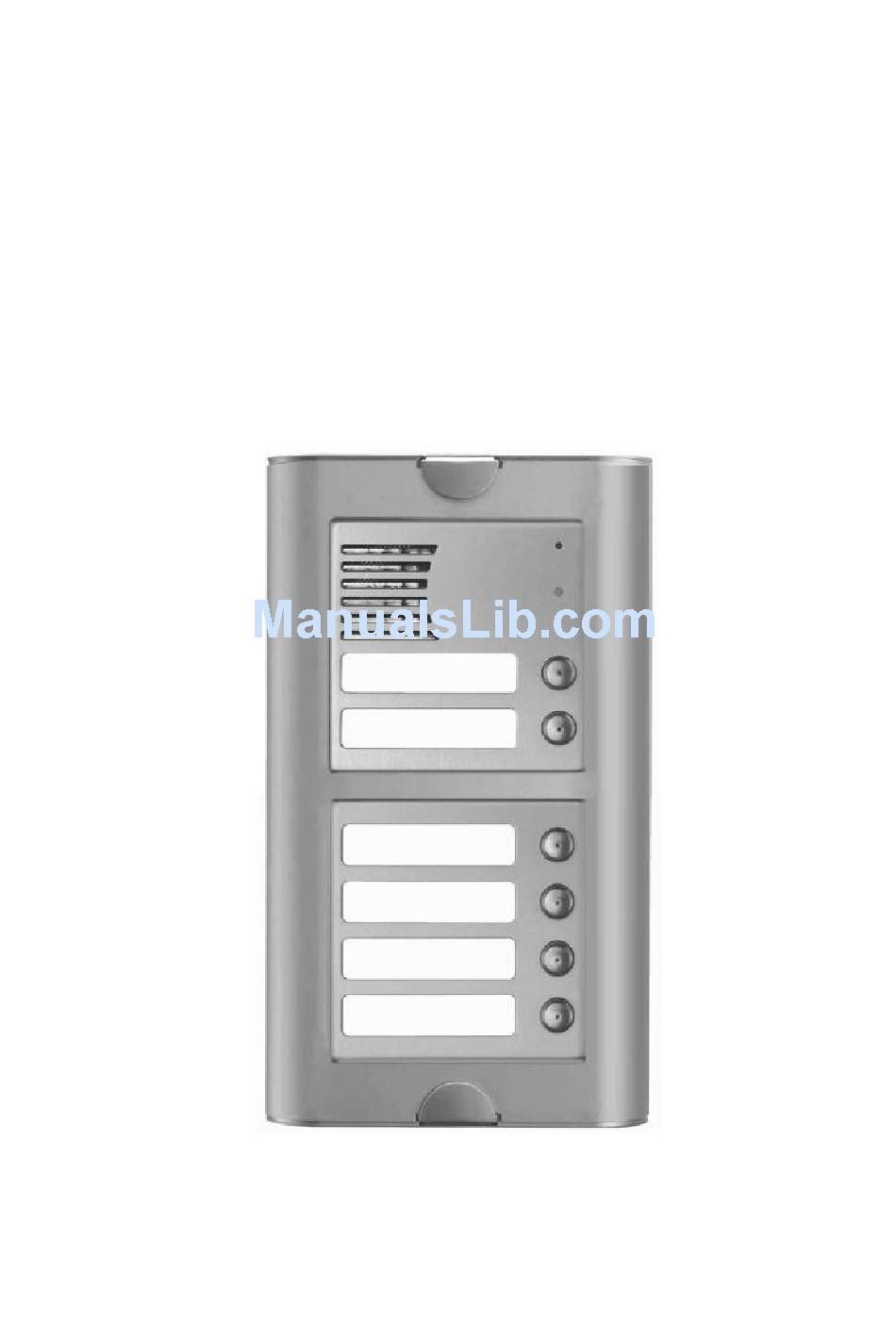

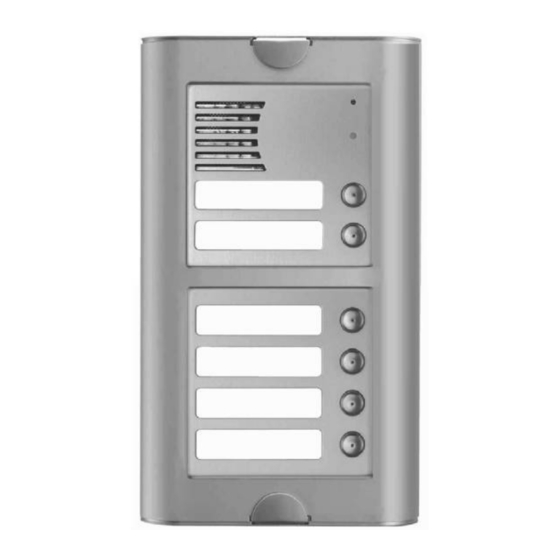

- Page 1 New All-Purpose Door Guard NUDV - 00 NUDV - 01 NUDV - 02 NC - mod4 NM - mod4 NKLA Installation and Operating Instructions...
- Page 3 4-digit service password, or connecting the programming stretcher on guard basic board. Having been forgot the service password it is possible to use the second way. Manual version V8,1 27-1-2009 Alphatech spol. s r.o. Jeremenkova 88 140 00 Praha 4 Tel/fax: 272103334 www.alphatech.cz...
-
Page 4: Table Of Contents
Table of Contents BASIC DESCRIPTION ...................6 ....................6 EATURES ...................7 ODULE SSEMBLY ..................8 ODULE EATURES 1.3.1 NUDV Basic Module ................8 1.3.2 Extending Module with NC-mod4, NM-mod4 Buttons......11 1.3.3 NKLA Keyboard Module..............12 1.3.4 Other modules ..................12 ............12 NSTALLATION OF UARD SSEMBLY 1.4.1 Installation on Plaster................12 1.4.2 Flush-Mounted Installation..............12... - Page 5 TECHNICAL PARAMETERS..............31 ................31 LECTRICAL ARAMETERS ................31 ECHANICAL DIMENSIONS TABLE FOR EASY PROGRAMMING............32 DECT – DISTYBOX..................35 ................35 ISTY ESCRIPTION ................35 ISTY IGNALING ...............36 ISTY ROGRAMMING ................36 OG ON TO TATION NUDV – Installation and Operating Instructions...
-
Page 6: Basic Description
1 Basic Description 1.1 Features Ø Modular system allows to connect 1 to 64 buttons Ø Voice communication is supplied only from telephone line Ø Impulse and tone dialing (DTMF) Ø Two 16digit numbers with each button (including *, #, Flash and Pause) Ø... -
Page 7: Module Assembly
1.2 Module Assembly The NUDV structural elements are the basic modules with two, one or no buttons and extending button modules NC-mod4 and NM-mod4 with four buttons. Further it is possible to provide the assembly with numerical keyboard and camera module. The complete assembly consists similarly to UDV system of max. -
Page 8: Module Features
1.3 Module Features 1.3.1 NUDV Basic Module The NUDV basic module is supplied in three variants – with two NUDV2 buttons, one NUDV1 button and without buttons, type NUDV0. V1.x Fig. 1 Rear view of basic module Fig. 2 Rear view of setting parts in version V6.x NUDV –... - Page 9 To ensure the basic function the telephone line can be connected – the terminal marked as "a b LINE". It is connected in the same way as any telephone to any branch exchange. The guard’s circuits are supplied from telephone line, so that nothing should be connected for voice communication. If one or two switches are necessary to be used, the A.C.
- Page 10 The "G" Faston 2.8mm terminal protects against static electricity – to be connected to earthing. The "HEAT" jumper serves the switching of board heating. This function requires the connection of 12V supply on "12V" marked terminal. The "EXPANSION" marked connector serves the connection of extending modules by means of flat cable.
-
Page 11: Extending Module With Nc-Mod4, Nm-Mod4 Buttons
1.3.2 Extending Module with NC-mod4, NM-mod4 Buttons This module is supplied in two designs. The NC-mod4 module has four buttons and includes the electronics to be connected to the basic module or to previous NC-mod4 module. This module is only connected by flat cable – buttons and lighting through is already interconnected. -
Page 12: Nkla Keyboard Module
Rem: From version of firmware 7.8 makes it possible dial DTMF dialing during talk from keyboard. 1.3.4 Other modules Other modules extending the guard assembly are actually offered on www.alphatech.cz ordered phone number: +420272103334. 1.4 Installation of Guard Assembly 1.4.1 Installation on Plaster... -
Page 13: Change Of Nameplates
Each button has its separate nameplate hold by means of plastic flag (see figure). The paper nameplates can be printed from Excel form (to be downloaded on www.alphatech.cz) or from Nset setting program. NUDV – Installation and Operating Instructions... -
Page 14: All-Purpose Guard Operation
2 All-Purpose Guard Operation 2.1 Signaling Overview The all-purpose guard signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under microphone hole). You can listen the signaling samples in Nset setting program. -
Page 15: Guard With Keyboard
from code lock), or with delay (parameter 53) and after period given by parameter 55 will dial the programmed phone number. The dialing number differs by choice mode, which is set in the guard (parameter 47): - Day/night mode = being the guard in Day mode, so it is always dialing a number set in parameter 1, in Night mode, it is always dialing a number set in parameter 2. -
Page 16: Person Inside Object
managed by Day/Night setting or mode for two groups of numbers (as described in Chapter 2.2.1). Version of firmware 7.8 makes it possible dial DTMF dialing during talk from keyboard. This feature it is possible switch on only by programming from phone, from PC program this feature isn't accessible and after programming door phone possibility dial from keyboard during talk is OFF. -
Page 17: Programming Of Parameters
3 Programming of Parameters 3.1 Programming through Phone 3.1.1 Entry to Programming The all-purpose door guard will be set to programming mode in two ways: 1. by password – only incoming call! – answer the telephone and dial a number, where the guard is lined (either branch number, if connected to branch exchange or number of state line to object, where the guard is placed . -
Page 18: Programming From Pc - Program Nset
– the guar will answer and if Nset program runs he will report his conversion to programming mode. For details of setup refer to program help and on producer’s pages www.alphatech.cz. NUDV – Installation and Operating Instructions... -
Page 19: Description Of Parameters
4 Description of Parameters 4.1 Direct Dialing – Memories Parameter Value Meaning Basic tt nn… No. nn under button tt tt – Button number (memory), always set in two-digit manner [01-64] nn – telephone number up to 16 digits, we want to store. To mean. - Page 20 m=3 lighting mode – it will close by guard lifting up and stay closed even for ss period after guard hanging up (the line is engaged for this period). m=4 switch mode – it will close after button pressing and open after ss period (used for e.g.
-
Page 21: Basic Parameters
The same command can be set for both switches, then they are activated at the same time. The advantage is to set the same command both for switch closing and command to guard hanging up (parameter 43) aa=bb. List of related parameters: 31 36 37 38 43 8# 83 Parameter Value Meaning Basic... - Page 22 Parameter Value Meaning Basic sign for call extension z – sign for call extension * or # (10sec before call end the guard will send a notice, then the call may be extended) List of related parameters: 52 8# 84 Parameter Value Meaning Basic...
-
Page 23: Time Parameters
Parameter Value Meaning Basic keyboard connection c – c=0 only NC-mode connected to the basic module c=1 the keyboard connected on the first position c=2 the keyboard connected on the second position c=3 the keyboard connected on the third position ATTENTION !! This parameter setting will sharply influence whole guard function. - Page 24 Parameter Value Meaning Basic max. call time d – max. time, for which the guard is hanging up, this time time can be extended during call by sign choice from choice [min] telephone (* or #). Time setting is per table. List of related parameters: 42 8# 85 1 - 9 1 - 9...
- Page 25 Parameter Value Meaning Basic time before dialing z – time [sec] after guard lifting up before dialing [range 1-5]. This time is different for each exchange, but most central exchanges usually manage to process dialing up to 2 seconds after line lifting up. List of related parameters: 8# 85 Parameter Value Meaning...
-
Page 26: Presetting And Deleting
4.5 Presetting and Deleting Parameter Value Meaning Basic executes basic setting This setting does not influence 1 and 2 (numbers stored in memory) Parameter Value Meaning Basic deletes all numbers in group 1 (Day mode) deletes all numbers in group 2 (Night mode) basic setting only only 3.. -
Page 27: System Setting
4.7 System Setting Parameter Value Meaning Basic number of non-fitted buttons of basic module The basic module is fitted with 2 buttons as standard, i.e. s = 0, s = 1 is set up for basic module with one button and s = 2 for module without buttons. This setting is a factory one, no service can change it and so it is recommended not to change this parameter. -
Page 28: Overview Of Parameters
4.8 Overview of Parameters Parameter Value Meaning Basic tt nn… No. nn under button tt tt nn… No. nn under button tt 11 21 switch r works in m mode pasw. hhhhhh for r switch in DAY + NIGHT r hhhhhh mode r hhhhhh pasw. - Page 29 5 (100ms) DTMF tone duration (tone) choice 5 (100ms) gap duration among DTMF tones 1 (100ms) Flash duration 8 (800ms) pause duration / interdigit gap executes basic setting deletes all numbers in group 1 (Day mode) deletes all numbers in group 2 (Night mode) basic setting only only 3..
-
Page 30: List Of Presetting Parameters
4.9 List of Presetting Parameters parameter basic presettings switch 1 mode lock m=1 switch 2 mode lock m=1 passw.Day+Night switch 1 passw. Day+Night switch 2 passw.Day switch 1 passw.Day switch 2 passw. Night switch 1 passw. Night switch 2 switch 1 activ. from phone switch 2 activ. -
Page 31: Technical Parameters
5 Technical Parameters 5.1 Electrical Parameters Parameter Value Conditions Minimum line current 18mA line answered Minimum line voltage line hang up Voltage on line while guard < 8V I = 20mA answers (VA characteristics) < 12V I = 60 mA Leakage in hang up status <... -
Page 32: Table For Easy Programming
6 Table for Easy Programming Complete the values in empty part of table you want to program. In double-frame part there are whole programming commands, so the programming is very simple and without errors. Furthermore such programmed values will be available for next changes in manual Meaning Programming sequence... - Page 33 Day+Night Password for switch 1 Day+Night Password for switch 2 Password for switch 1 Password for switch 2 Night Password for switch 1 Night Password for switch 2 Clos. of switch 1 fr. phone Clos. of switch 2 fr. phone [sec] Closing time of switch 1 [sec]...
- Page 34 NUDV – Installation and Operating Instructions...
-
Page 35: Dect - Distybox
7 DECT – DistyBox 7.1 DistyBox Description This module is a separate box allowing the connection of analogue telecommunication device to wireless system DECT – GAP (e.g. Siemens line GigaSet, TopCom line Butler etc.). DistyBox is suitable for guard connection, because it is not necessary place conductors from house to the... -
Page 36: Distybox Programming
7.3 DistyBox Programming You can enter the programming mode 20 sec – 10min after power supply ON by **9 choice (to dial/busy tones) namely after DistyBox power supply ON. If you had entered a new PIN in previous programming (par.2) so now you must enter a correct PIN for entry to programming (following main reset (par. - Page 37 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 38 © JR 2004-9 version V8.1 I/09...
