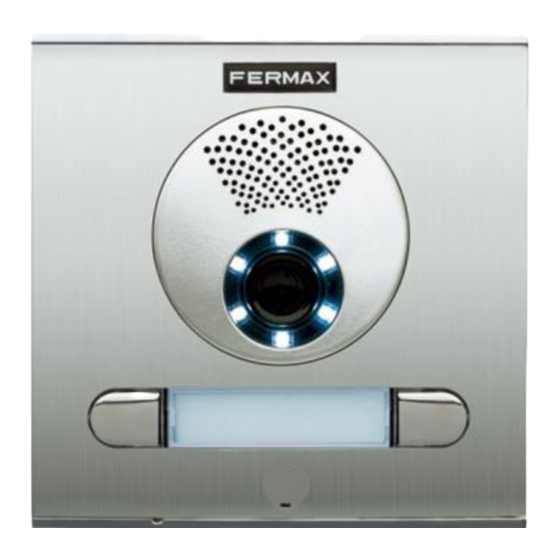

Sip based voip video door phone panel

Advertisement

Quick Links

A
T
s.r.o
.
LPHATECH
ECHNOLOGIES
Jeremenkova 88, Praha 4, Czech Republic
www.alphatechtechnologies.cz
Fermax IP DP
SIP based VoIP video door phone panel
Fermax PBX EXP
Fermax PBX KEY
Fermax PBX EA
User and installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fermax PBX EXP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alphatech Fermax PBX EXP

  • Page 1 LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Fermax IP DP SIP based VoIP video door phone panel Fermax PBX EXP Fermax PBX KEY Fermax PBX EA User and installation guide...
  • Page 2 Fermax IP DP. You can also expand the whole system by the 8 pushbutton expansion module Fermax PBX EXP up to the limit of 64 pushbuttons. The basic module can contain a colour camera, optionally there can be an add-on speaker module with an amplifier Fermax PBX EA, which is used for very noisy areas.
  • Page 3: Table Of Contents

    Front panel ......................... 13 1.4.4 Exchange of visit cards ....................... 14 1.4.5 Camera ..........................14 1.4.6 Expansion module Fermax PBX EXP ................. 14 1.4.7 Keypad module Fermax PBX KEY ..................16 1.4.8 Other modules (panels) ....................... 16 ..................17 SSEMBLY OF THE DOOR PHONE PANEL 1.5.1...
  • Page 4: Basic Description

    1 Basic description 1.1 Features  IP (SIP) modular system with built-in colour camera  P2P or SIP proxy mode (PBX network system)  1-64 pushbuttons  Two 25-digit numbers on each pushbutton  Waterproof pushbuttons with impregnation IP66, gold plated contacts ...
  • Page 5: Used Terminology

    Used terminology  Ethernet is a family of frame-based computer networking technologies for local area networks (LANs)  LAN - a local area network (LAN) is a computer network covering a small physical area, like a home, office, or small groups of buildings, such as a school, or an airport ...
  • Page 6: Assembly Of Panels

    1.3 Assembly of panels The building blocks of Fermax IP DP are the basic panels which differ by its size, number of pushbuttons, if the visit card has got two or one pushbuttons. 1.3.1 Terminology and orientation in panels 4 CP 204 (item number) as a representative of terminology. It is a panel with height of 199mm.
  • Page 7: Examples Of Panels

    1.3.2 Examples of panels Fermax IP DP Fermax IP DP Fermax IP DP Fermax IP DP 1 AP 201 1 AP 101 1 CP 201 1 CP 101 Fermax PBX EA Fermax PBX KEY Fermax IP DP Fermax IP DP Fermax IP DP Fermax IP DP 2 AP 202...
  • Page 8 Fermax IP DP panels can be equipped with an additional time switch called "TimeRelay". It is used for an expansion of the number of switches. It is programmable. Based on switching of one of the two switches in the Fermax IP DP panel, the TimeRelay can simulate e.g.
  • Page 9: Characteristics Of The Modules

    1.4 Characteristics of the modules 1.4.1 The basic module of electronics Fermax PBX DP The basic module of Fermax IP DP panel is supplied in two versions – with two pushbuttons - Fermax IP DP-2 (a version for 1 or 2 pushbuttons) and two pushbuttons with a possibility of expansion by additional 8 pushbuttons, i.e.
  • Page 10 Picture 2 The real image of connection and set-up elements PoE module – the Fermax IP DP panel is equipped by a circuit supplying the power over UTP cable – PoE. If your network switch is equipped by PoE, or if you have got a PoE power supply (a box in the size of a power supply adapter inserted into the input of the UTP cable), then for the correct function of the door phone panel you do not need an external power supply of 12V.
  • Page 11 power output of the loudspeaker, you can use an add-on module with an amplifier Fermax PBX EA. Loudspeaker connection SPK 7. Microphone connection MIC - attention on the right polarity!!! 8. MIC loudness setting – by the trimmer you set the desired level of loudness of the microphone.
  • Page 12 16. Switching contact 2 (NO= normally open, NC= normally closed and COM= common output of the switch). – 17. Connector connecting pushbuttons (integrated expansion). For connection please interconnection cable Fermax CC8. Each colour of the cable is assigned exactly specific pushbutton –...
  • Page 13: Example Of Switches Connection

    1.4.2 Example of switches connection The switching contact of relay is separated galvanically from other circuits of the door phone panel. When using PoE, the output of 12V is connected galvanically with the PC network. Therefore when using PoE power supply, please pay attention during manipulation and installation.
  • Page 14: Exchange Of Visit Cards

    3. Mounting column for the main board 4. Sensor of surrounding illumination 5. Mounting of the main board 1.4.6 Expansion module Fermax PBX EXP The expansion module has got two connectors 5, one is used for connection towards the basic module (Fermax PBX DP) and the second one is used for connection of the following module.
  • Page 15 Connection of pushbuttons: Position number on Fermax PBX EXP Colour of wire Blue Brown Yellow White Green Orange Black The numbering of positions is shown on the picture 5. All numbers of pushbuttons refer to the settings of the door phone panel (see more in the programming section).
  • Page 16: Keypad Module Fermax Pbx Key

    (i.e. directly to the basic module) or to the third position (to the output of the first Fermax PBX EXP module). Attention – 1st position can´t be used because the first position is occupied by the fixed expansion on the basic module (pushbuttons 3- 10).
  • Page 17: Assembly Of The Door Phone Panel

    1.5 Assembly of the door phone panel 1.5.1 Surface mounting For surface mounting we offer a compact installation box. The installation box is mounted with screws with plugs to the wall. On the picture you can find an installation box, size 1.
  • Page 18: Doorphone Voip Operation

    2 DoorPhone VoIP Operation 2.1 Signaling Overview The all-purpose guard signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under first label). Condition Tones Tone frequency –▄–■–▀– Line lifting up 425-850-1275 glows goes...
  • Page 19: Doorphone With Keyboard

    set point, then the DoorPhone will pick up and close the corresponding switch (if set in m=1 or m=5 modes) to the period given by seting in parameters. Then it will hang up. 2.2.2 DoorPhone with Keyboard The DoorPhone with keyboard can also include besides the keyboard up to 16 buttons of direct dialing always behaving as to be mentioned in 1.4.7(page 16) except the code lock.
  • Page 20: Person Inside Object

    Person Inside Object The person inside object is considered a person that is in phone contact with DoorPhone. 2.3.1 Outgoing Call The outgoing call is the call from DoorPhone (caused by visitor). After guard choice the telephone is ringing inside object and the pickuping up will allow speaking to the visitor at door.
  • Page 21: Programming Of Parameters

    3 Programming of Parameters 3.1 Basic VoIP settings 3.1.1 Choosing a mode and login It is important to choose a DoorPhone mode first. The DoorPhone can work in the PeerToPeer mode or SIP server mode. The mode setting can be made by a relevant switch (DIP switch see on Pict.
  • Page 22 In your web browser enter IP address of the DoorPhone, default is 192.168.1.250. See Pict. 2. Pict. 2 First site - video from camera Enter user name and password. User name is „admin“, default password is „1234“. See Pict. 3. Pict.
  • Page 23: Language Option

    3.1.2 Language option Language setting can be made in a menu on the left panel. 3.1.3 Network settings Network settings are located in the Network seting menu item. It is possible to use DHCP service (1) or you can enter IP addresses manually. Manual configuration: After making changes click on a save and restart button.
  • Page 24 3. Setting IP address, mask, eventually next network parameters, in case obscurity contact his IT manager 4. Display actual mode of IPDP – day / night 5. Return on introductory WEB site with display videos from cameras IPDP 6. short help for quick assistance in setting the parameters1 – 7.
  • Page 25: Peer To Peer Or Sip Server Connection

    3.1.4 Peer to peer or SIP server connection The DoorPhone can be set to the peer to peer (P2P) mode or to the SIP server mode by DIP switch (page 21). In P2P mode DoorPhone calling IP adress – in memory buttons (page 35).
  • Page 26: Setting Video

    After making changes use the save changes button. 1. There is choosing only priority using audio codecs, used codec is selection automatically at make audio connection in SIP protocol. 2. Default value – presetings to the firm settings. After making changes use the save changes button.
  • Page 27: Viewing The Video (Programme Popup)

    Next interesting way watching videos from IPDP is install PopUp program UDVGUARD for Windows. This programme also with manual is freely download on http://www.alphatech.cz/engl/e_ipdp.htm. Programme except display the video has even this interesting functions: at conversation IPDP is program automatically activate from system tray of...
  • Page 28: Day Intervals

    3.1.8 Day intervals After making changes use the save changes button. 1. Display actual internal time (you must setting in "Service" time server) 2. Table of time interval - interval is meaning where is day, the rest is night. For example: interval 1 = 08:00-12:00, interval 2 = 14:00-17:00 - from 00:00 to 7:59 is night, from 8:00 to 12:00 is day, from 12:01 to 13:59 is night, from 14:00 to 17:00 is day and from 17:01 to 23:59 is night.
  • Page 29: Service Settings

    1. Possibility switch off displaying videos on start page - safety device 2. Possibility switch off video in VoIP call (video in call makes at some systems problem) 3. Possibility change port from conventional 80 to other 4. Possibility disable / enable access over telnet 5.
  • Page 30 basic LOG and back to, in short switch you have such LOG, which don't see writing on button. 2. Click on "Download log file" file save to you choice place. File has extension ".BIN", this is necessary rename on ".TAR". To unpacking archive "tar" use e.g .
  • Page 31: Setting Doorphone Parameters

    3.2 Setting DoorPhone parameters 3.2.1 Basic Parameters After making changes use the save changes button. 1. Mode of DoorPhone choice selects number per Day/Night DoorPhone mode or selects numbers of the first and second groups. 2. Sign for call extension * or # (10sec before call end the DoorPhone will send a notice, then the call may be extended) 3.
  • Page 32: All About Relays

    =3 the keyboard connected on the second position (explanation of position keyboard is on chapter 1.4.7(page 16). 8. Default value – presetings to the firm settings. After making changes use the save changes button. ATTENTION! This parameters setting will sharply influence whole DoorPhone function.
  • Page 33 =4 bell mode – it will close after button pressing and open after period t (used for e.g. external bell or horn connections). =5 gradual opening mode – in this mode the only relay 2 will be set together with relay 1 set to mode 1. The relay 1 is activated for period t then the time t is proceeding before relay 2 closing.
  • Page 34: Time Parameters

    3.2.3 Time Parameters After making changes use the save changes button. 1. max. time, for which the DoorPhone is hanging up, this time can be extended during call by sign choice from telephone (* or #) – see page 31. 2.
  • Page 35: Direct Dialing - Memories

    3.2.4 Direct Dialing – Memories After making changes use the save changes button. 1. telephone number up to 16 digits, we want to store. The numbers are the numbers of the first group or numbers of Day mode. In default setting is table memoirs empty.
  • Page 36: Technical Parameters

    4 Technical Parameters 4.1 Electrical Parameters Parameter Value Conditions Communication interface Ethernet 10BaseT, 100BaseTx VoIP protocol supported série JPEG, stream H.263 (H.264) Video 300Hz – 3400 Hz Band width 12Vss ± 2V , 12Vst ± 1V Power supply - adapter - or PoE IEEE802,3af Altern.
  • Page 37 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
  • Page 38 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
