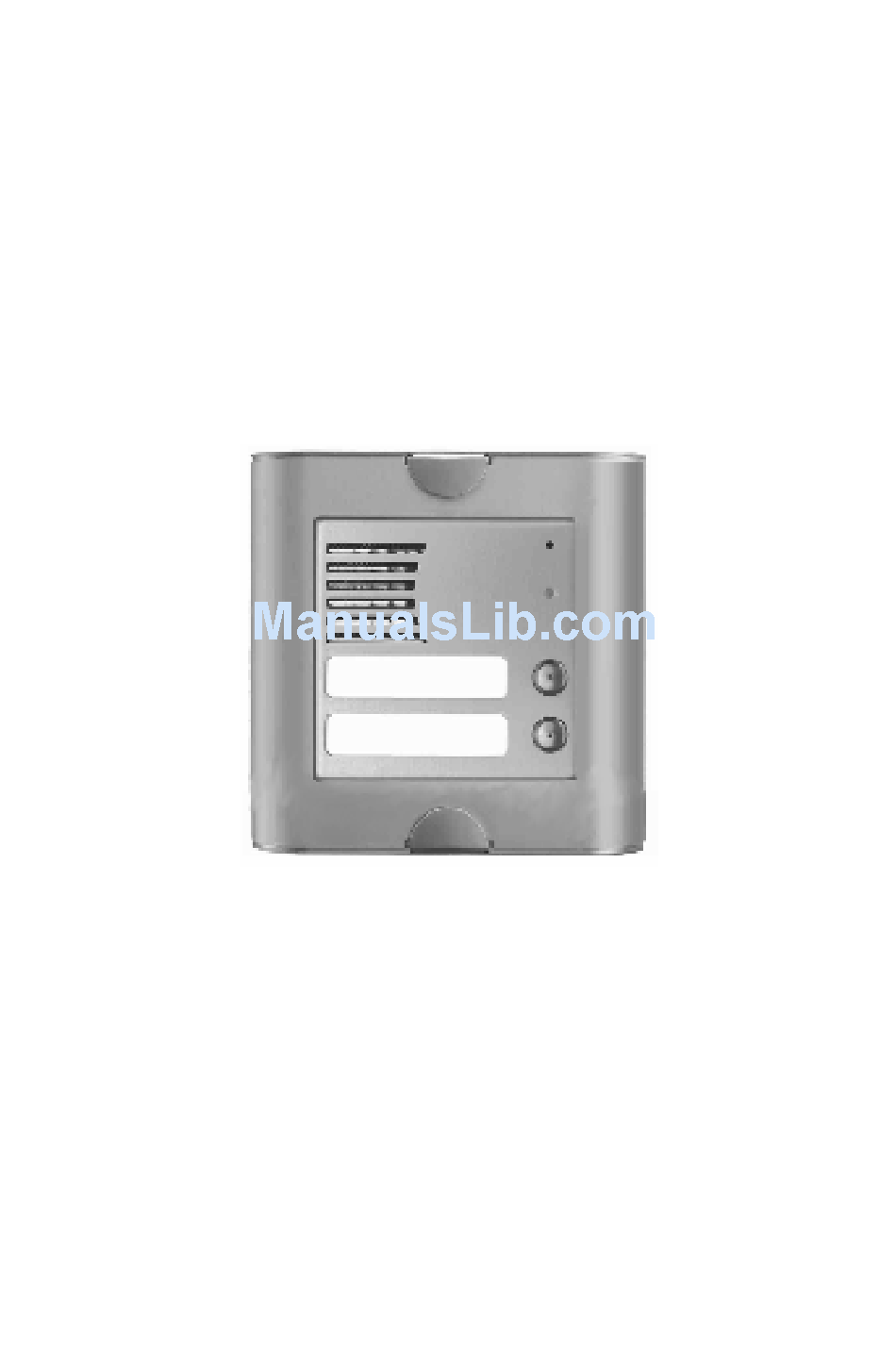

- Page 1 New FTZ Door Guard NFTZ - 01 NFTZ - 02 Installation and Operating Instructions...
-
Page 3: Table Of Contents
Table of Contents BASIC DESCRIPTION..................4 ...................... 4 EATURES ..................4 ODULE SSEMBLY 1.2.1 NFTZ Module................... 5 1.2.2 Setting voice communication..............6 1.2.3 Connection electric lock................6 ............6 NSTALLATION OF UARD SSEMBLY 1.3.1 Installation on Plaster................6 1.3.2 Flush-Mounted Installation............... 7 ................ -
Page 4: Basic Description
1 Basic Description 1.1 Features Ø Interface compatible system FTZ 123, 6-8 wires Ø Maximum 2 push-button Ø A part of is relay for open electric lock (No-Com-Nc) Ø Permanent lighting through visiting cards without external power supply Ø Activate communication indicated LED on front panel 1.2 Module Assembly The NFTZ structural elements are the basic modules with two or one buttons. -
Page 5: Nftz Module
1.2.1 NFTZ Module The NFTZ module is supplied in two variants – with two NFTZ2 buttons and one NFTZ1. Fig. 1 Rear view of basic module NFTZ – Installation and Operating Instructions... -
Page 6: Setting Voice Communication
1.2.2 Setting voice communication Trimmer "MIC" be instrumental to setting loudness of microphone, trimmer "SPK" be instrumental to setting loudness loudspeaker. In this version is big reserve in gain, therefore isn't recommended adjust more than on half, typical is in 1/3 from minimum gain. Trimmer "TRH" be instrumental to setting levels activation of microphone, it means, so as doorphone "non whoop"... -
Page 7: Flush-Mounted Installation
Each button has its separate nameplate hold by means of plastic flag (see figure). The paper nameplates can be printed from Excel form (to be downloaded on www.alphatech.cz). NFTZ – Installation and Operating Instructions... -
Page 8: Mechanical Dimensions
2 Mechanical dimensions dimensions HxWxD [mm] Type of item 1 module 2 modules 3 modules 4 modules MKxx mount. box 114x118x45 204x118x45 294x118x45 384x118x45 KPDxx (on plast.)1col. 151x157x79 241x157x79 331x157x79 421x157x79 KPDxx (on plast.)2col. 241x286x79 421x286x79 Canopy xx 149x151x49 241x151x49 331x151x49 421x151x49 Fixing frame 147x151x3 239x151x3... -
Page 9: Wiring Of Connector
3 Wiring of connector +24V power from PABX ground – common wire acoustic signal of speech Tl.1 push button 1 Tl.2 push button 2 control of lock switch control of speech ground – common wire NFTZ – Installation and Operating Instructions... - Page 10 NFTZ – Installation and Operating Instructions...
- Page 11 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 12 © JR 2005 version V1.0 XI/05...
