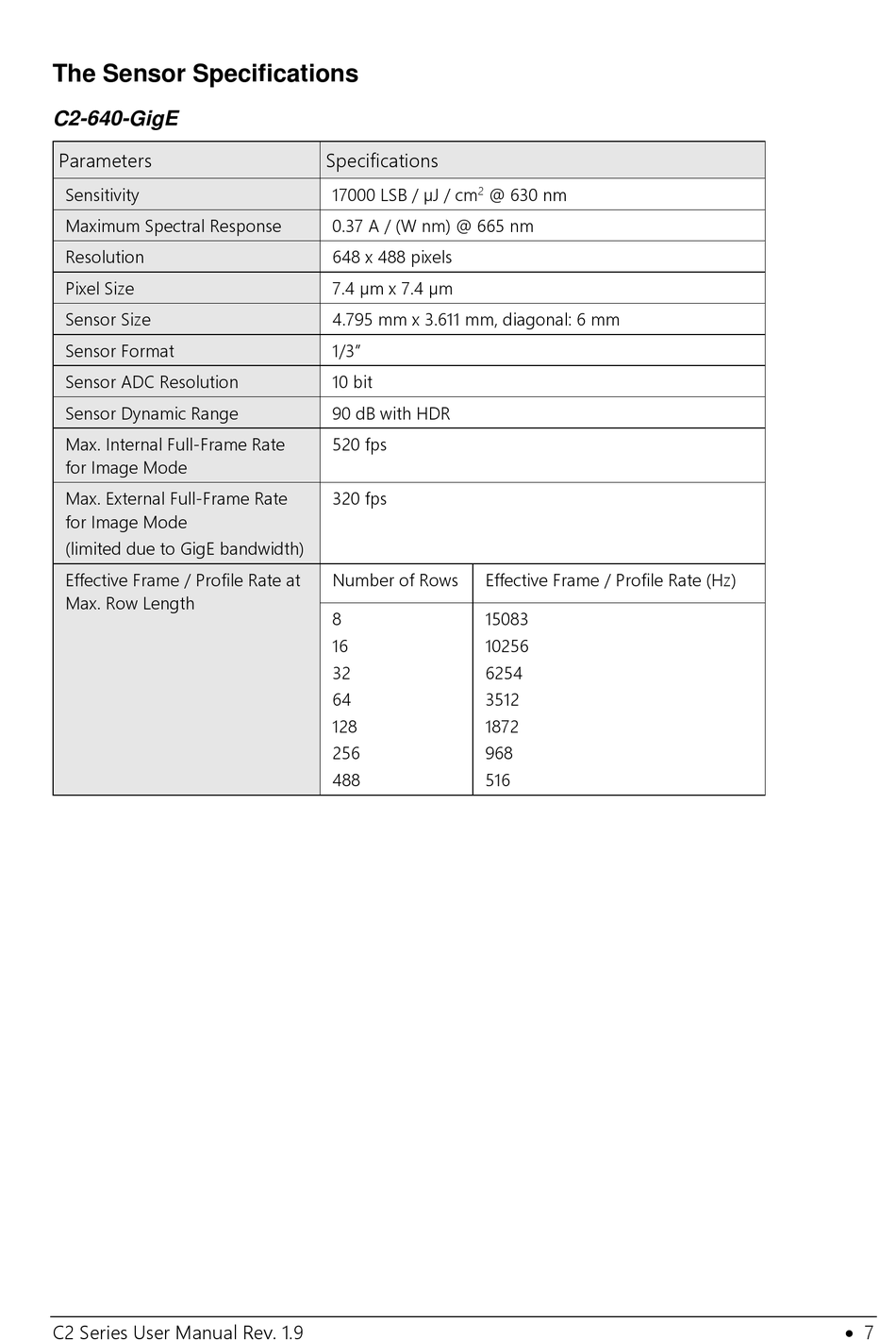

The Sensor Specifications

C2-640-GigE

Parameters
Sensitivity
Maximum Spectral Response
Resolution
Pixel Size
Sensor Size
Sensor Format
Sensor ADC Resolution
Sensor Dynamic Range
Max. Internal Full-Frame Rate
for Image Mode
Max. External Full-Frame Rate
for Image Mode
(limited due to GigE bandwidth)
Effective Frame / Profile Rate at
Max. Row Length
C2 Series User Manual Rev. 1.9
Specifications
17000 LSB / µJ / cm @ 630 nm
2
0.37 A / (W nm) @ 665 nm
648 x 488 pixels
7.4 µm x 7.4 µm
4.795 mm x 3.611 mm, diagonal: 6 mm
1/3"
10 bit
90 dB with HDR
520 fps
320 fps
Number of Rows Effective Frame / Profile Rate (Hz)
8 15083
16 10256
32 6254
64 3512
128 1872
256 968
488 516
