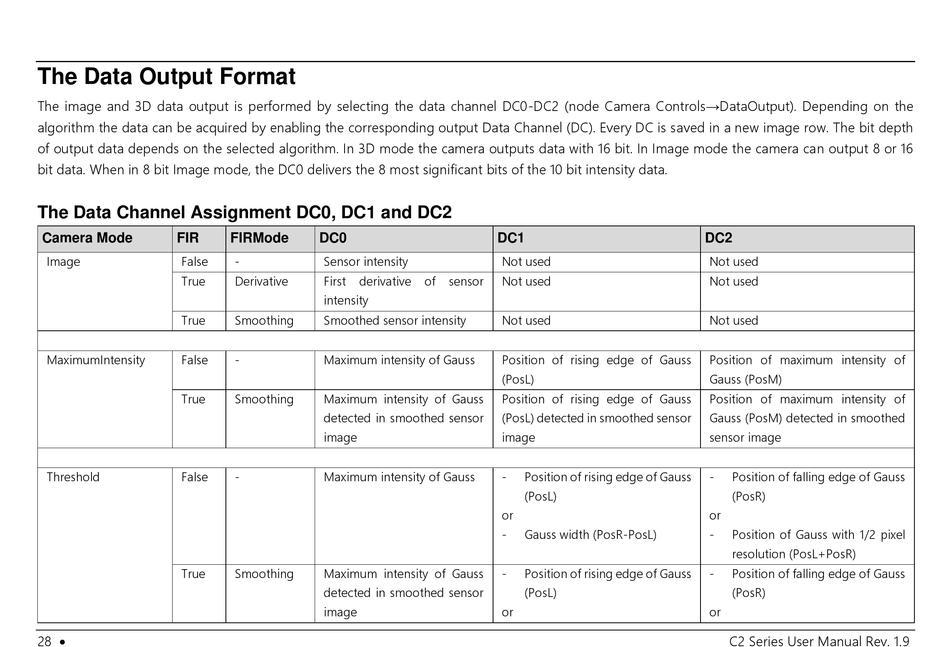

The Data Output Format

The image and 3D data output is performed by selecting the data channel DC0-DC2 (node Camera Controls→DataOutput). Depending on the
algorithm the data can be acquired by enabling the corresponding output Data Channel (DC). Every DC is saved in a new image row. The bit depth
of output data depends on the selected algorithm. In 3D mode the camera outputs data with 16 bit. In Image mode the camera can output 8 or 16
bit data. When in 8 bit Image mode, the DC0 delivers the 8 most significant bits of the 10 bit intensity data.

The Data Channel Assignment DC0, DC1 and DC2

Camera Mode FIR
Image False
True
True
MaximumIntensity False
True
Threshold False
True
28 
FIRMode DC0
- Sensor intensity
Derivative First derivative
intensity
Smoothing Smoothed sensor intensity
- Maximum intensity of Gauss
Smoothing Maximum intensity of Gauss
detected in smoothed sensor
- Maximum intensity of Gauss
Smoothing Maximum intensity of Gauss
detected in smoothed sensor
DC1
Not used
of sensor Not used
Not used
Position of rising edge of Gauss
(PosL)
Position of rising edge of Gauss
(PosL) detected in smoothed sensor
- Position of rising edge of Gauss
(PosL)
or
- Gauss width (PosR-PosL)
- Position of rising edge of Gauss
(PosL)
or
DC2
Not used
Not used
Not used
Position of maximum intensity of
Gauss (PosM)
Position of maximum intensity of
Gauss (PosM) detected in smoothed
sensor image
- Position of falling edge of Gauss
(PosR)
or
- Position of Gauss with 1/2 pixel
resolution (PosL+PosR)
- Position of falling edge of Gauss
(PosR)
or
