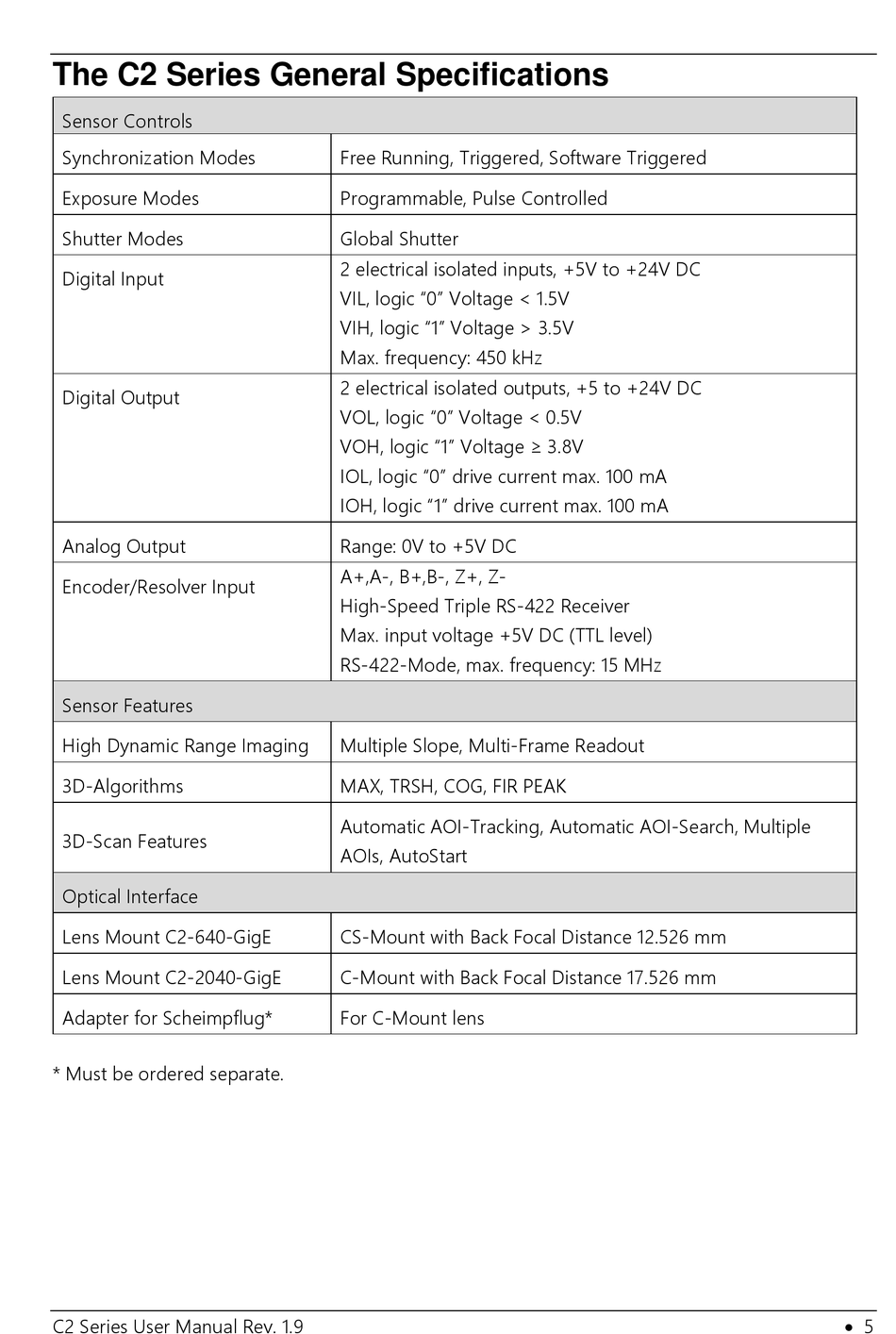

The C2 Series General Specifications

Sensor Controls
Synchronization Modes
Exposure Modes
Shutter Modes
Digital Input
Digital Output
Analog Output
Encoder/Resolver Input
Sensor Features
High Dynamic Range Imaging
3D-Algorithms
3D-Scan Features
Optical Interface
Lens Mount C2-640-GigE
Lens Mount C2-2040-GigE
Adapter for Scheimpflug*
* Must be ordered separate.
C2 Series User Manual Rev. 1.9
Free Running, Triggered, Software Triggered
Programmable, Pulse Controlled
Global Shutter
2 electrical isolated inputs, +5V to +24V DC
VIL, logic "0" Voltage < 1.5V
VIH, logic "1" Voltage > 3.5V
Max. frequency: 450 kHz
2 electrical isolated outputs, +5 to +24V DC
VOL, logic "0" Voltage < 0.5V
VOH, logic "1" Voltage ≥ 3.8V
IOL, logic "0" drive current max. 100 mA
IOH, logic "1" drive current max. 100 mA
Range: 0V to +5V DC
A+,A-, B+,B-, Z+, Z-
High-Speed Triple RS-422 Receiver
Max. input voltage +5V DC (TTL level)
RS-422-Mode, max. frequency: 15 MHz
Multiple Slope, Multi-Frame Readout
MAX, TRSH, COG, FIR PEAK
Automatic AOI-Tracking, Automatic AOI-Search, Multiple
AOIs, AutoStart
CS-Mount with Back Focal Distance 12.526 mm
C-Mount with Back Focal Distance 17.526 mm
For C-Mount lens
