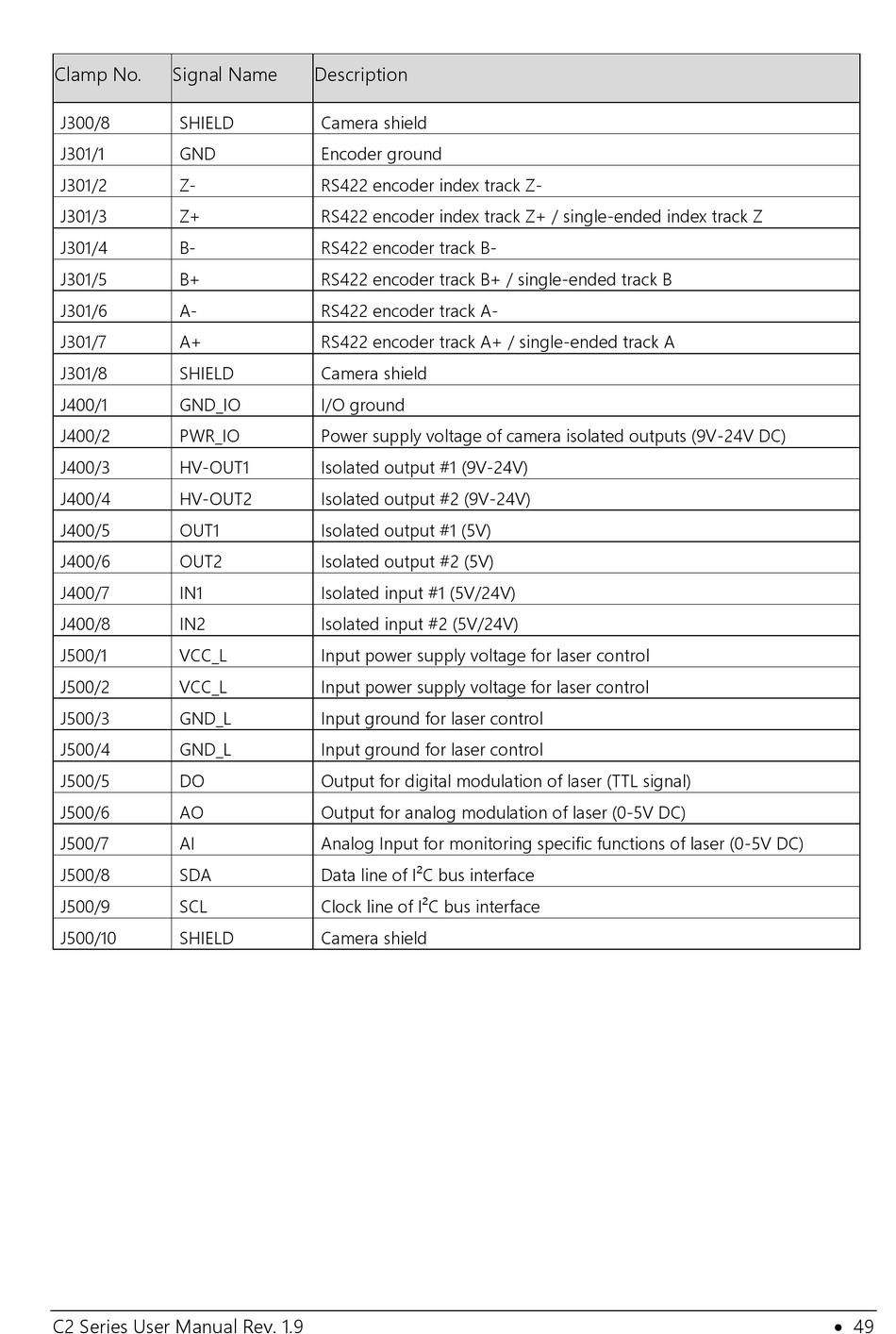

Clamp No. Signal Name
J300/8 SHIELD
J301/1 GND
J301/2 Z-
J301/3 Z+
J301/4 B-
J301/5 B+
J301/6 A-
J301/7 A+
J301/8 SHIELD
J400/1 GND_IO
J400/2 PWR_IO
J400/3 HV-OUT1
J400/4 HV-OUT2
J400/5 OUT1
J400/6 OUT2
J400/7 IN1
J400/8 IN2
J500/1 VCC_L
J500/2 VCC_L
J500/3 GND_L
J500/4 GND_L
J500/5 DO
J500/6 AO
J500/7 AI
J500/8 SDA
J500/9 SCL
J500/10 SHIELD
C2 Series User Manual Rev. 1.9
Description
Camera shield
Encoder ground
RS422 encoder index track Z-
RS422 encoder index track Z+ / single-ended index track Z
RS422 encoder track B-
RS422 encoder track B+ / single-ended track B
RS422 encoder track A-
RS422 encoder track A+ / single-ended track A
Camera shield
I/O ground
Power supply voltage of camera isolated outputs (9V-24V DC)
Isolated output #1 (9V-24V)
Isolated output #2 (9V-24V)
Isolated output #1 (5V)
Isolated output #2 (5V)
Isolated input #1 (5V/24V)
Isolated input #2 (5V/24V)
Input power supply voltage for laser control
Input power supply voltage for laser control
Input ground for laser control
Input ground for laser control
Output for digital modulation of laser (TTL signal)
Output for analog modulation of laser (0-5V DC)
Analog Input for monitoring specific functions of laser (0-5V DC)
Data line of I²C bus interface
Clock line of I²C bus interface
Camera shield
