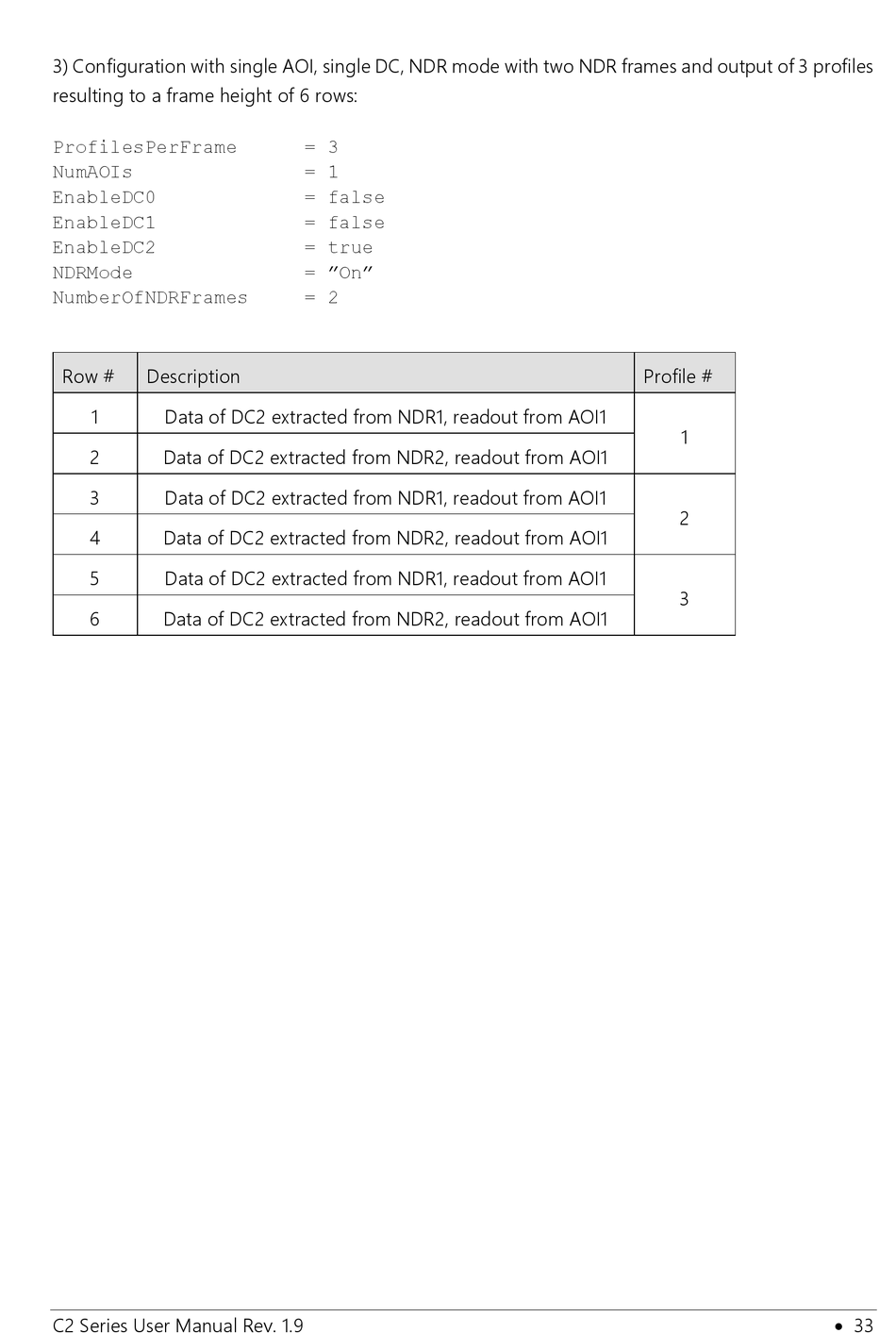

3) Configuration with single AOI, single DC, NDR mode with two NDR frames and output of 3 profiles
resulting to a frame height of 6 rows:
ProfilesPerFrame
NumAOIs
EnableDC0
EnableDC1
EnableDC2
NDRMode
NumberOfNDRFrames
Row #
Description
1
Data of DC2 extracted from NDR1, readout from AOI1
2
Data of DC2 extracted from NDR2, readout from AOI1
3
Data of DC2 extracted from NDR1, readout from AOI1
4
Data of DC2 extracted from NDR2, readout from AOI1
5
Data of DC2 extracted from NDR1, readout from AOI1
6
Data of DC2 extracted from NDR2, readout from AOI1
C2 Series User Manual Rev. 1.9
= 3
= 1
= false
= false
= true
= "On"
= 2
Profile #
1
2
3
33
