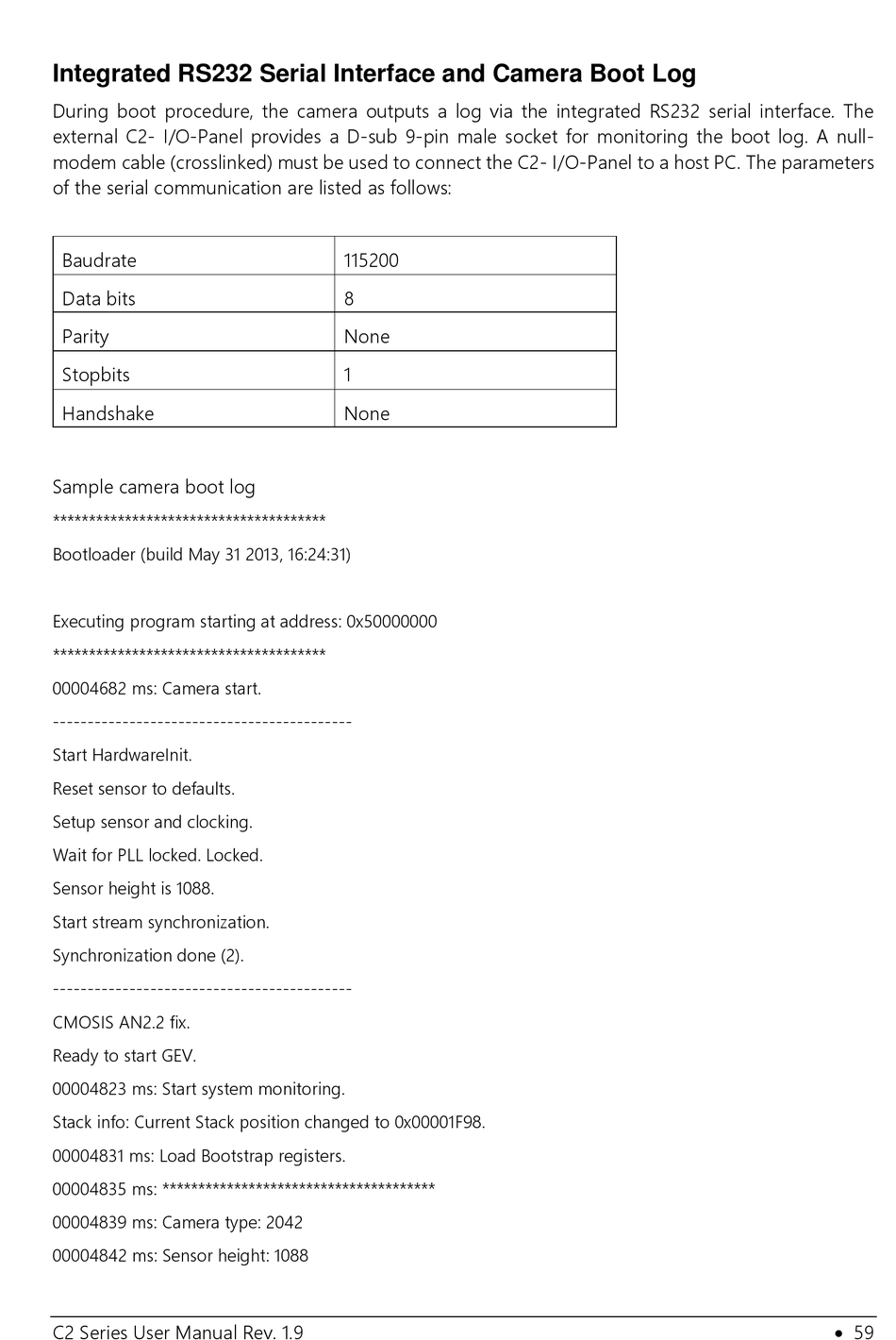

Integrated RS232 Serial Interface and Camera Boot Log

During boot procedure, the camera outputs a log via the integrated RS232 serial interface. The
external C2- I/O-Panel provides a D-sub 9-pin male socket for monitoring the boot log. A null-
modem cable (crosslinked) must be used to connect the C2- I/O-Panel to a host PC. The parameters
of the serial communication are listed as follows:
Baudrate
Data bits
Parity
Stopbits
Handshake
Sample camera boot log
**************************************
Bootloader (build May 31 2013, 16:24:31)
Executing program starting at address: 0x50000000
**************************************
00004682 ms: Camera start.
-------------------------------------------
Start HardwareInit.
Reset sensor to defaults.
Setup sensor and clocking.
Wait for PLL locked. Locked.
Sensor height is 1088.
Start stream synchronization.
Synchronization done (2).
-------------------------------------------
CMOSIS AN2.2 fix.
Ready to start GEV.
00004823 ms: Start system monitoring.
Stack info: Current Stack position changed to 0x00001F98.
00004831 ms: Load Bootstrap registers.
00004835 ms: **************************************
00004839 ms: Camera type: 2042
00004842 ms: Sensor height: 1088
C2 Series User Manual Rev. 1.9
115200
8
None
1
None
 59
