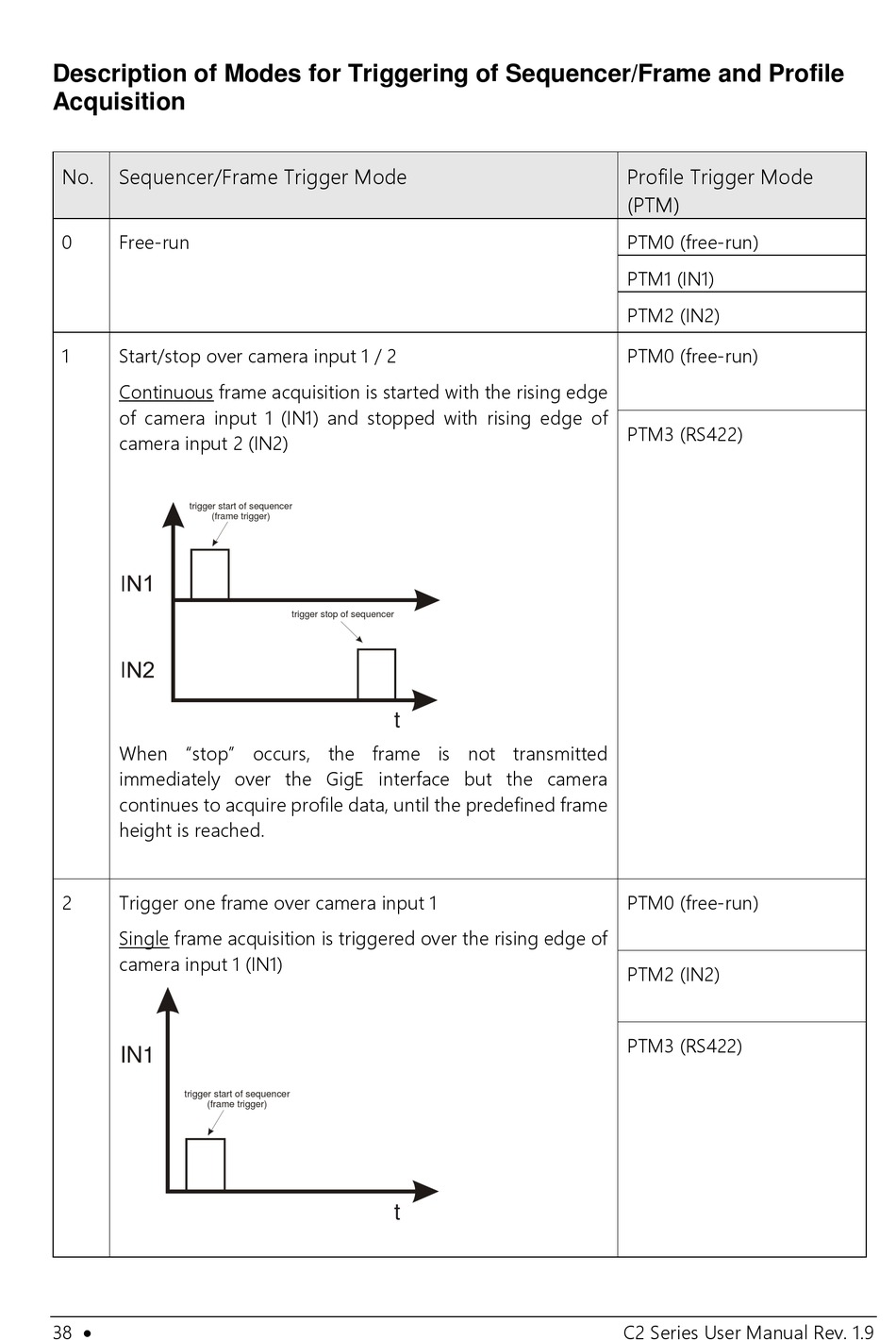

Description of Modes for Triggering of Sequencer/Frame and Profile
Acquisition
No. Sequencer/Frame Trigger Mode
0 Free-run
1 Start/stop over camera input 1 / 2
Continuous frame acquisition is started with the rising edge
of camera input 1 (IN1) and stopped with rising edge of
camera input 2 (IN2)
trigger start of sequencer
(frame trigger)
When "stop" occurs, the frame is not transmitted
immediately over the GigE interface but the camera
continues to acquire profile data, until the predefined frame
height is reached.
2 Trigger one frame over camera input 1
Single frame acquisition is triggered over the rising edge of
camera input 1 (IN1)
IN1
trigger start of sequencer
(frame trigger)
38 
trigger stop of sequencer
t
t
Profile Trigger Mode
(PTM)
PTM0 (free-run)
PTM1 (IN1)
PTM2 (IN2)
PTM0 (free-run)
PTM3 (RS422)
PTM0 (free-run)
PTM2 (IN2)
PTM3 (RS422)
