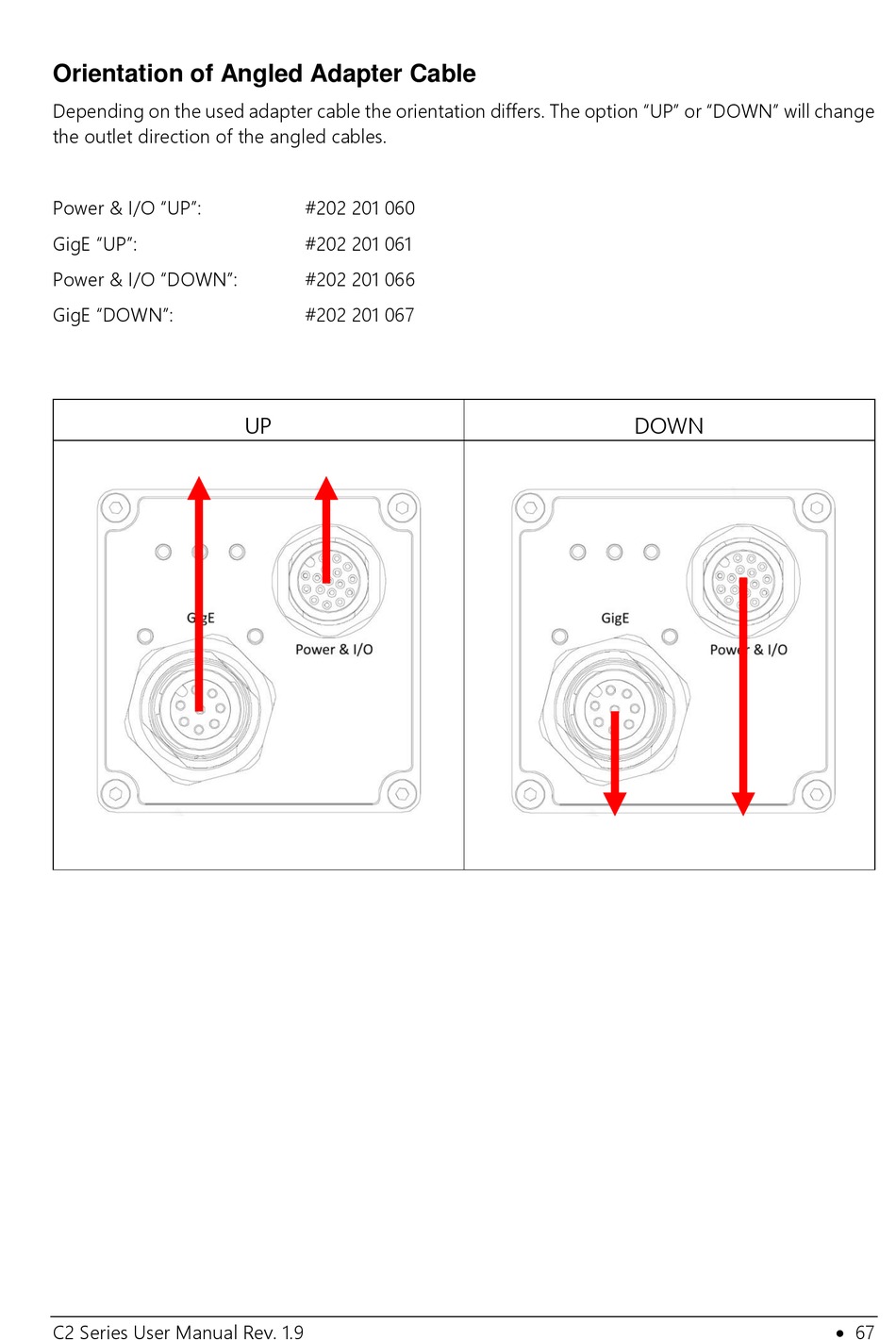

Orientation of Angled Adapter Cable
Depending on the used adapter cable the orientation differs. The option "UP" or "DOWN" will change
the outlet direction of the angled cables.
Power & I/O "UP":
GigE "UP":
Power & I/O "DOWN":
GigE "DOWN":
C2 Series User Manual Rev. 1.9
#202 201 060
#202 201 061
#202 201 066
#202 201 067
UP
DOWN
