For example, when in Start/Stop mode with instant frame transmission, the camera stops the frame
acquisition as soon as the stop trigger occurs and transfers the complete contents of internal image
buffer. Using the ChunkImageInfo data block, it is possible to detect how many image rows and
ChunkAcqInfo blocks are valid in the payload buffer.
The tag of ChunkData has big endian byte order. The data of ChunkData has little endian byte order.
An endian converter for ChunkData is not supported.

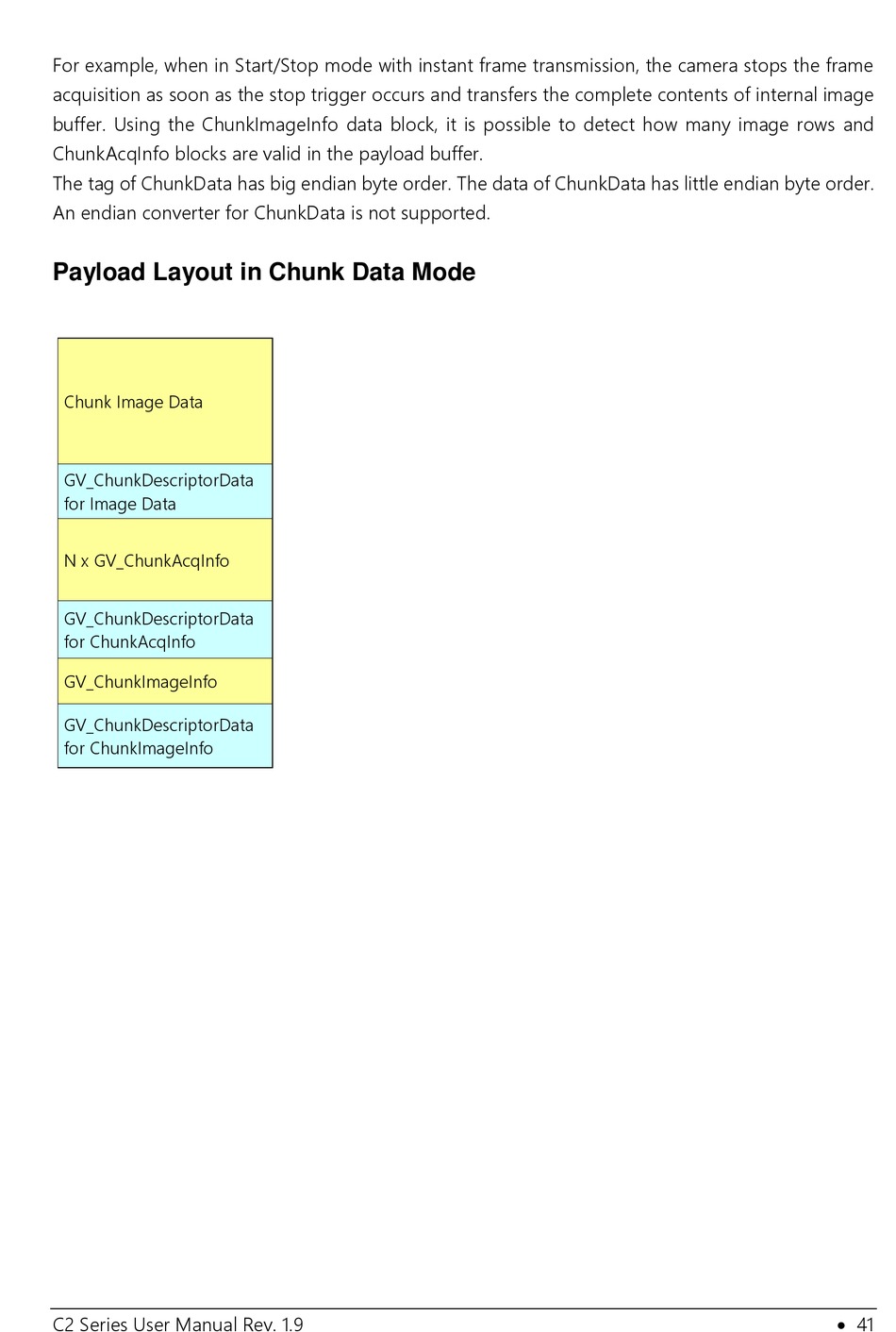

Payload Layout in Chunk Data Mode

Chunk Image Data
GV_ChunkDescriptorData
for Image Data
N x GV_ChunkAcqInfo
GV_ChunkDescriptorData
for ChunkAcqInfo
GV_ChunkImageInfo
GV_ChunkDescriptorData
for ChunkImageInfo
