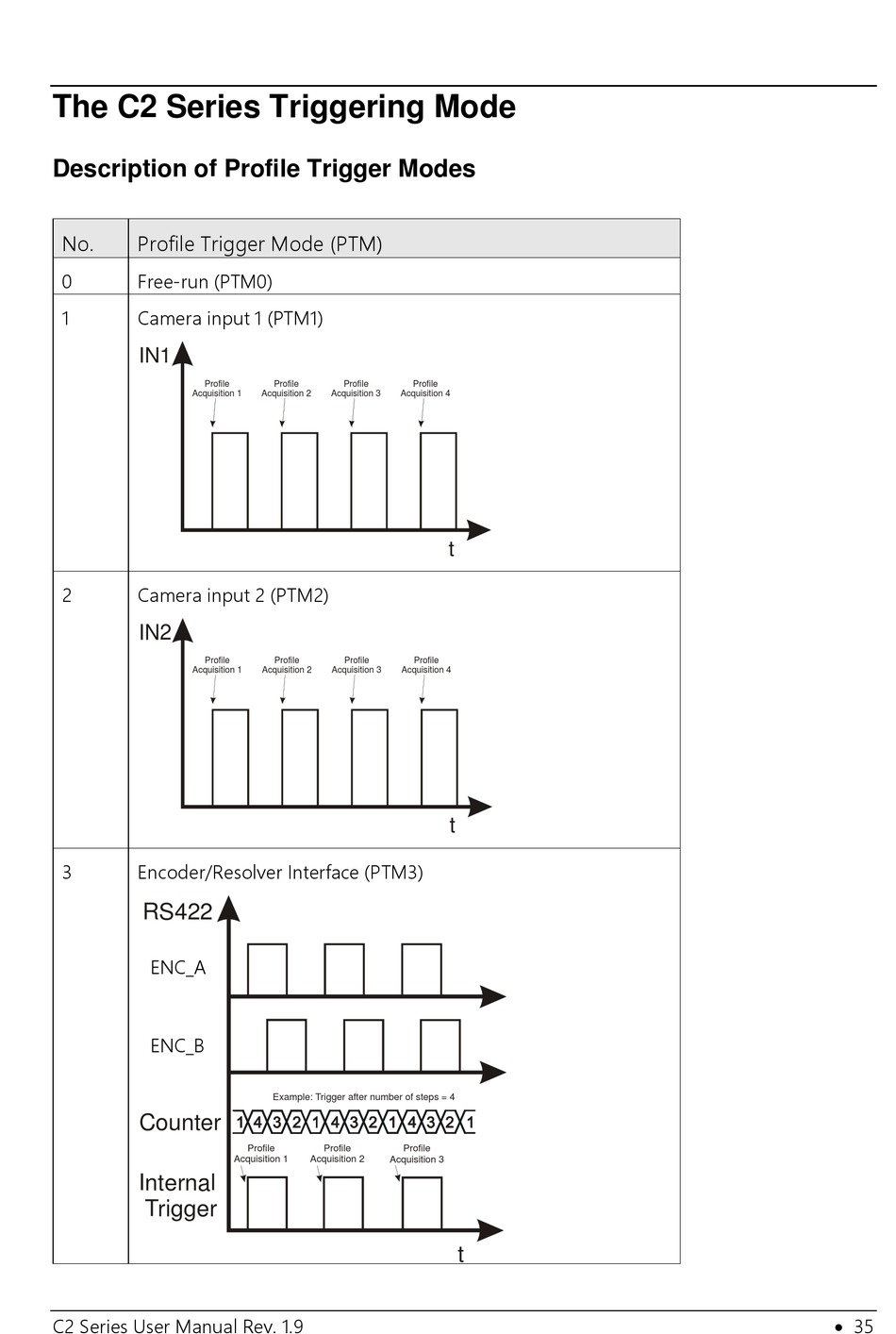

The C2 Series Triggering Mode

Description of Profile Trigger Modes

No. Profile Trigger Mode (PTM)
0 Free-run (PTM0)
1 Camera input 1 (PTM1)
IN1
Profile
Acquisition 1
2 Camera input 2 (PTM2)
IN2
Profile
Acquisition 1
3 Encoder/Resolver Interface (PTM3)
RS422
ENC_A
A
ENC_B
B
Counter
Internal
Trigger
C2 Series User Manual Rev. 1.9
Profile Profile
Acquisition 2 Acquisition 3 Acquisition 4
Profile Profile
Acquisition 2 Acquisition 3 Acquisition 4
Example: Trigger after number of steps = 4
Profile Profile
Acquisition 1 Acquisition 2
Acquisition 3
Profile
t
Profile
t
Profile
t
 35
