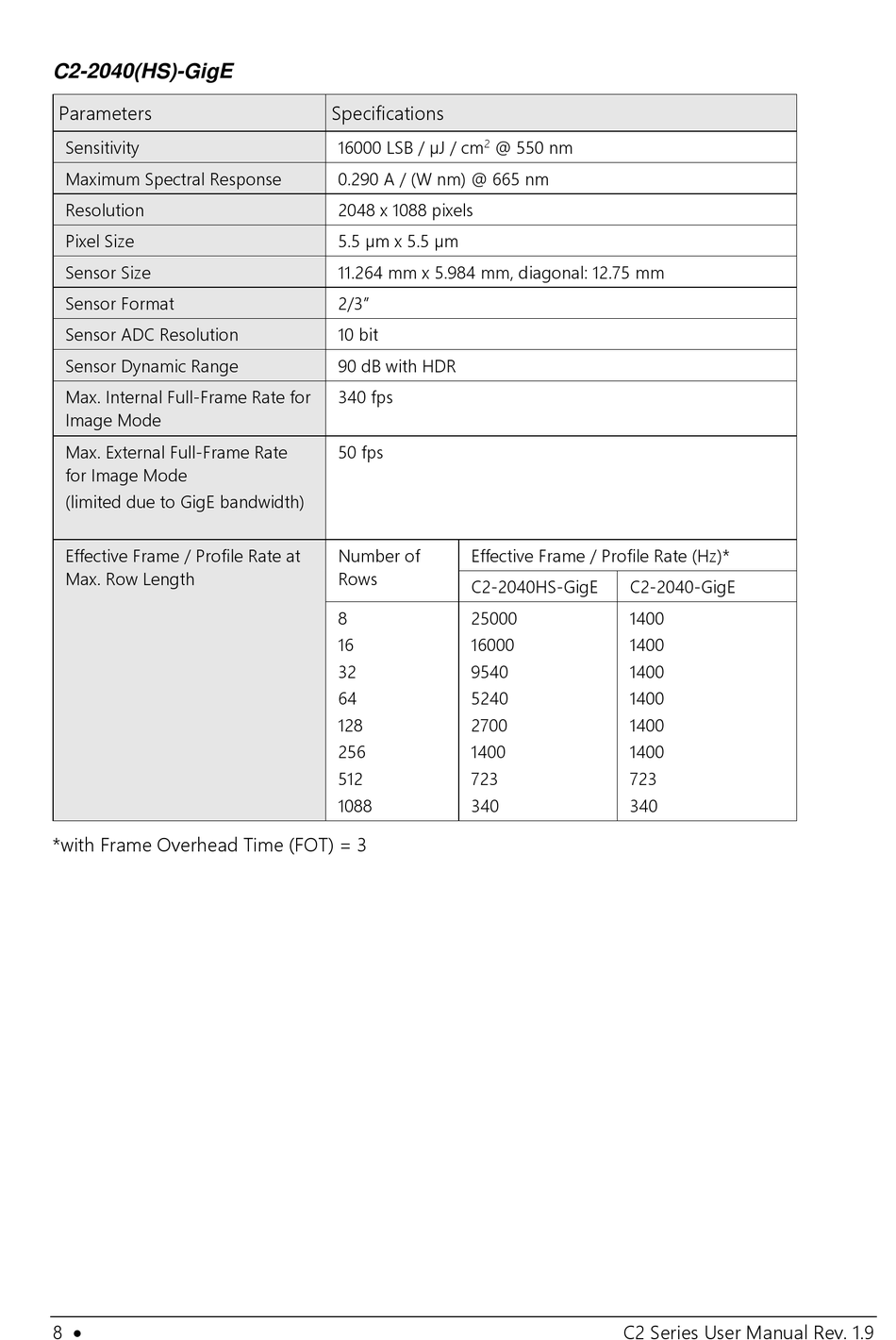

C2-2040(HS)-GigE

Parameters
Sensitivity
Maximum Spectral Response
Resolution
Pixel Size
Sensor Size
Sensor Format
Sensor ADC Resolution
Sensor Dynamic Range
Max. Internal Full-Frame Rate for
Image Mode
Max. External Full-Frame Rate
for Image Mode
(limited due to GigE bandwidth)
Effective Frame / Profile Rate at
Max. Row Length
*with Frame Overhead Time (FOT) = 3
8 
Specifications
16000 LSB / µJ / cm 2 @ 550 nm
0.290 A / (W nm) @ 665 nm
2048 x 1088 pixels
5.5 µm x 5.5 µm
11.264 mm x 5.984 mm, diagonal: 12.75 mm
2/3"
10 bit
90 dB with HDR
340 fps
50 fps
Number of Effective Frame / Profile Rate (Hz)*
Rows
C2-2040HS-GigE
8 25000
16 16000
32 9540
64 5240
128 2700
256 1400
512 723
1088 340
C2-2040-GigE
1400
1400
1400
1400
1400
1400
723
340
