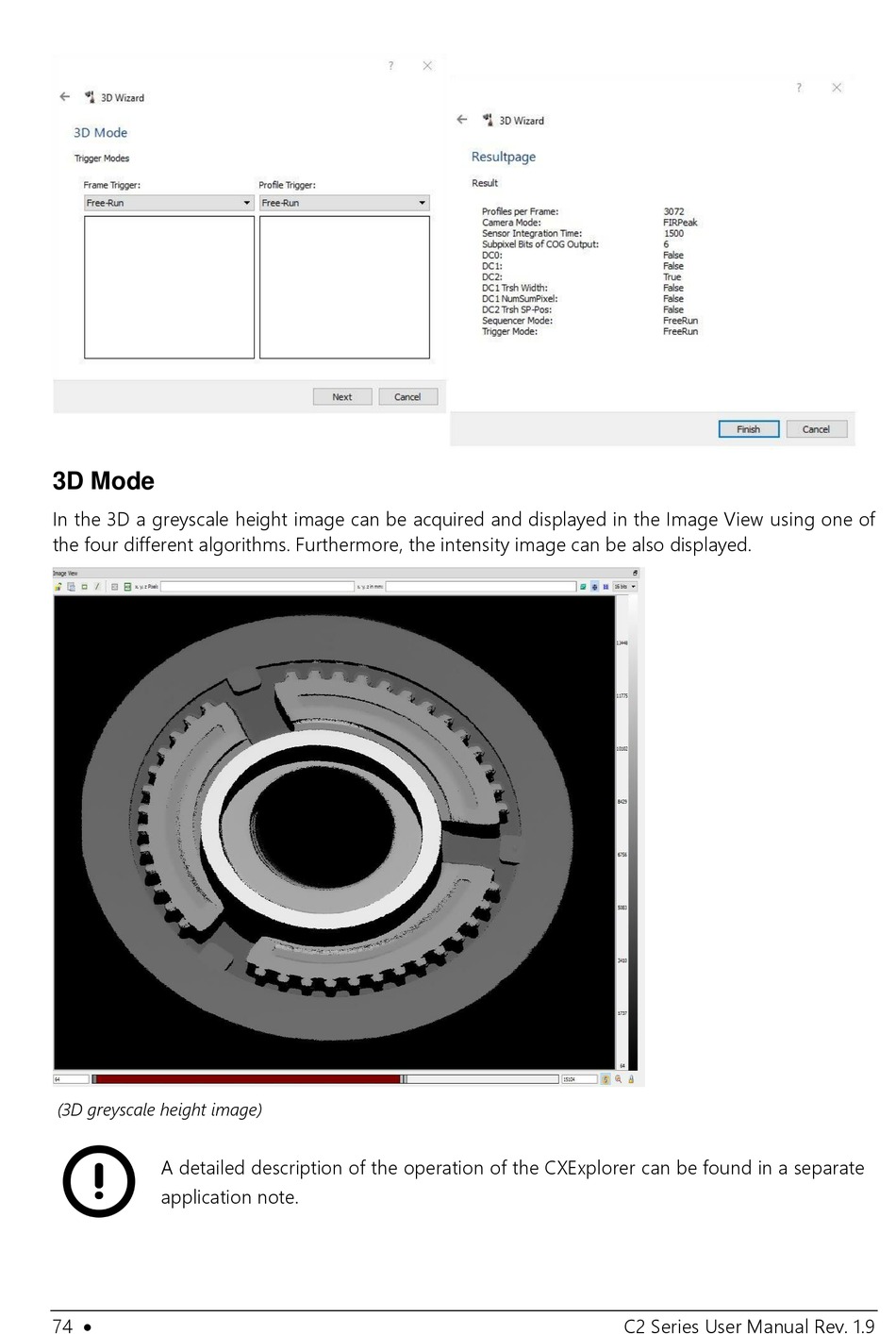

3D Mode

In the 3D a greyscale height image can be acquired and displayed in the Image View using one of
the four different algorithms. Furthermore, the intensity image can be also displayed.
(3D greyscale height image)
A detailed description of the operation of the CXExplorer can be found in a separate
application note.
