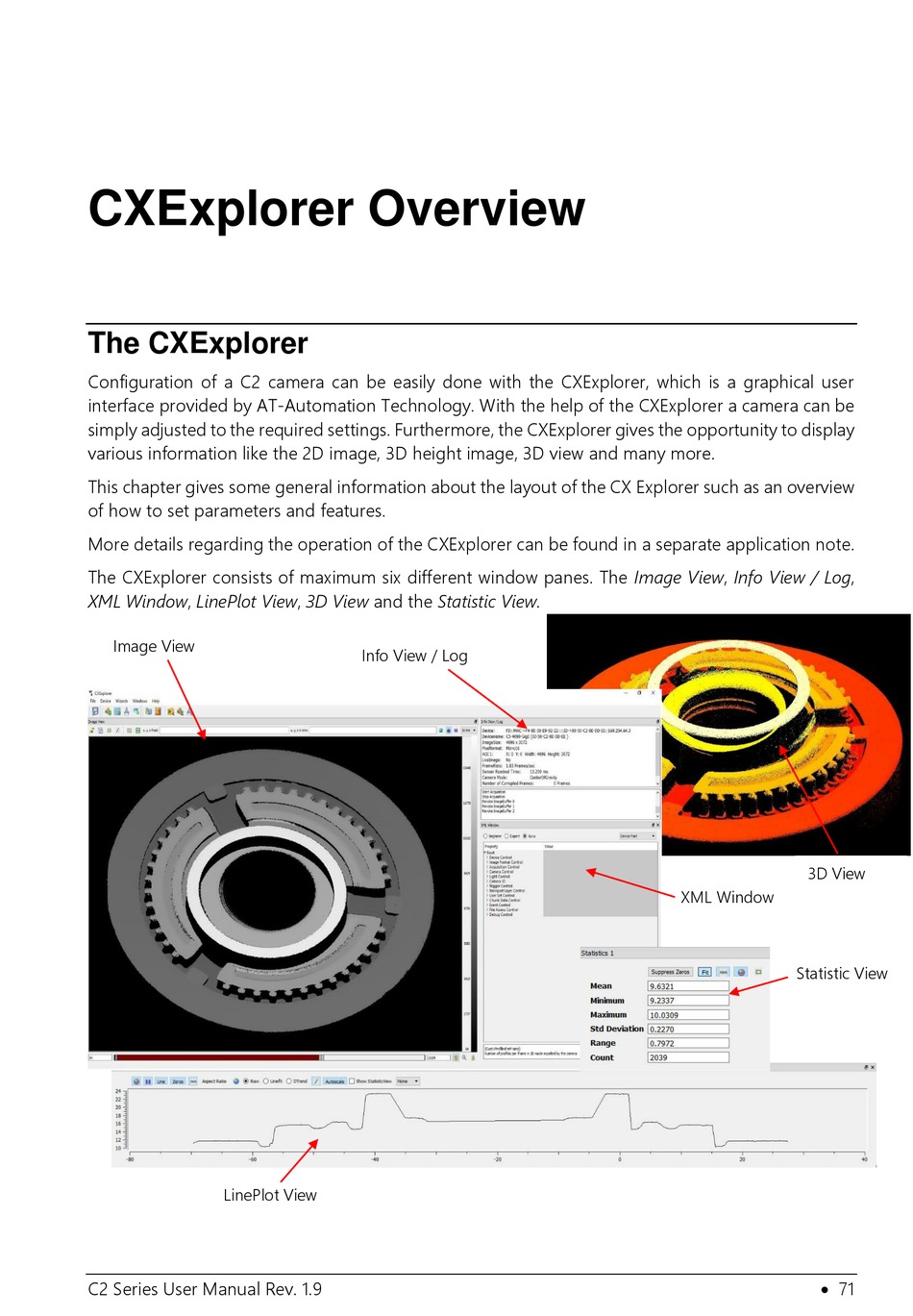

CXExplorer Overview

The CXExplorer

Configuration of a C2 camera can be easily done with the CXExplorer, which is a graphical user
interface provided by AT-Automation Technology. With the help of the CXExplorer a camera can be
simply adjusted to the required settings. Furthermore, the CXExplorer gives the opportunity to display
various information like the 2D image, 3D height image, 3D view and many more.
This chapter gives some general information about the layout of the CX Explorer such as an overview
of how to set parameters and features.
More details regarding the operation of the CXExplorer can be found in a separate application note.
The CXExplorer consists of maximum six different window panes. The Image View, Info View / Log,
XML Window, LinePlot View, 3D View and the Statistic View.
Image View
Info View / Log
3D View
XML Window
Statistic View
LinePlot View
