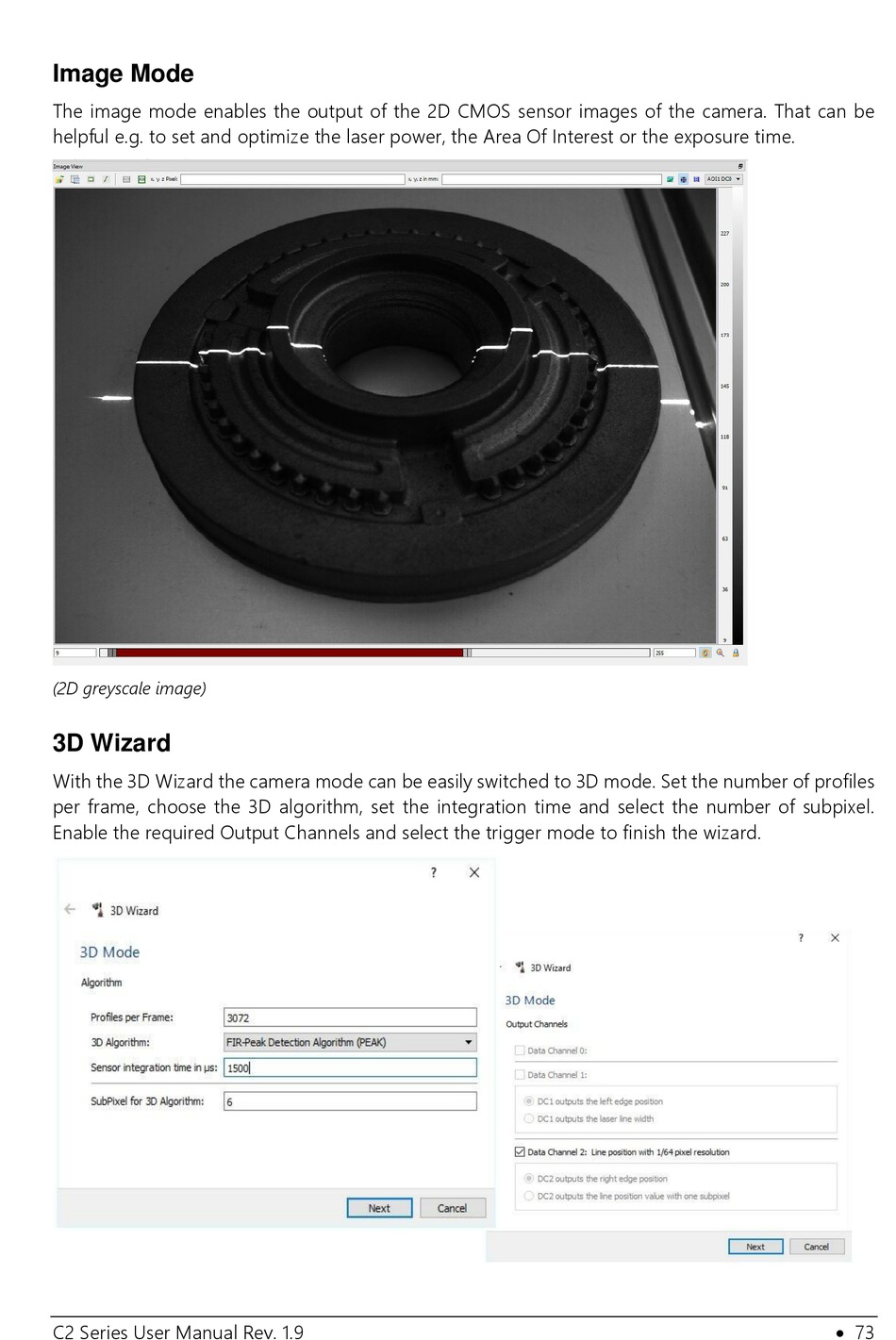

Image Mode

The image mode enables the output of the 2D CMOS sensor images of the camera. That can be
helpful e.g. to set and optimize the laser power, the Area Of Interest or the exposure time.
(2D greyscale image)

3D Wizard

With the 3D Wizard the camera mode can be easily switched to 3D mode. Set the number of profiles
per frame, choose the 3D algorithm, set the integration time and select the number of subpixel.
Enable the required Output Channels and select the trigger mode to finish the wizard.
