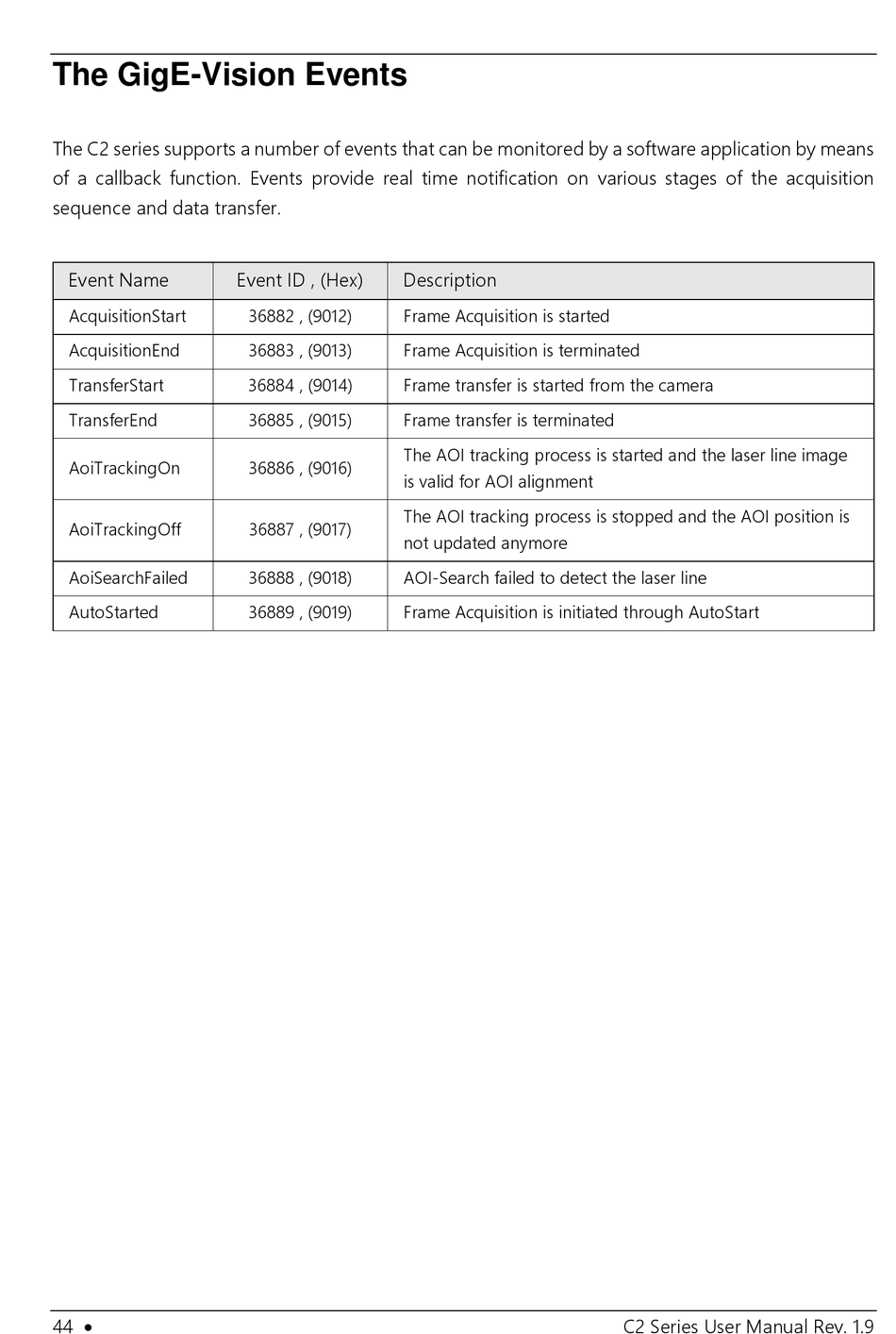

The GigE-Vision Events

The C2 series supports a number of events that can be monitored by a software application by means
of a callback function. Events provide real time notification on various stages of the acquisition
sequence and data transfer.
Event Name
AcquisitionStart
AcquisitionEnd
TransferStart
TransferEnd
AoiTrackingOn
AoiTrackingOff
AoiSearchFailed
AutoStarted
44 
Event ID , (Hex) Description
36882 , (9012) Frame Acquisition is started
36883 , (9013) Frame Acquisition is terminated
36884 , (9014) Frame transfer is started from the camera
36885 , (9015) Frame transfer is terminated
The AOI tracking process is started and the laser line image
36886 , (9016)
is valid for AOI alignment
The AOI tracking process is stopped and the AOI position is
36887 , (9017)
not updated anymore
36888 , (9018) AOI-Search failed to detect the laser line
36889 , (9019) Frame Acquisition is initiated through AutoStart
