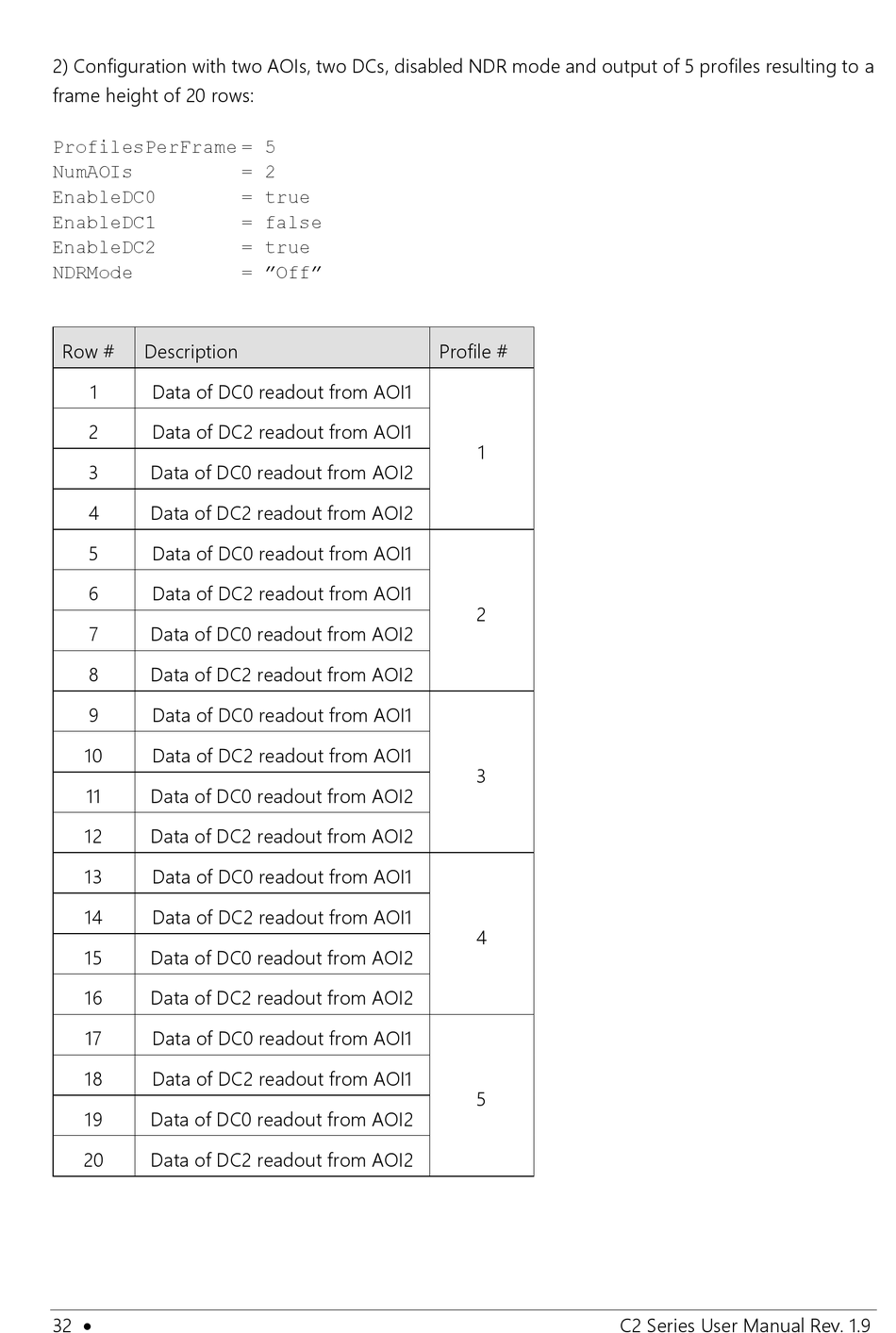

2) Configuration with two AOIs, two DCs, disabled NDR mode and output of 5 profiles resulting to a
frame height of 20 rows:
ProfilesPerFrame = 5
NumAOIs
EnableDC0
EnableDC1
EnableDC2
NDRMode
Row # Description
1 Data of DC0 readout from AOI1
2 Data of DC2 readout from AOI1
3 Data of DC0 readout from AOI2
4 Data of DC2 readout from AOI2
5 Data of DC0 readout from AOI1
6 Data of DC2 readout from AOI1
7 Data of DC0 readout from AOI2
8 Data of DC2 readout from AOI2
9 Data of DC0 readout from AOI1
10 Data of DC2 readout from AOI1
11 Data of DC0 readout from AOI2
12 Data of DC2 readout from AOI2
13 Data of DC0 readout from AOI1
14 Data of DC2 readout from AOI1
15 Data of DC0 readout from AOI2
16 Data of DC2 readout from AOI2
17 Data of DC0 readout from AOI1
18 Data of DC2 readout from AOI1
19 Data of DC0 readout from AOI2
20 Data of DC2 readout from AOI2
32 
= 2
= true
= false
= true
= "Off"
Profile #
1
2
3
4
5
