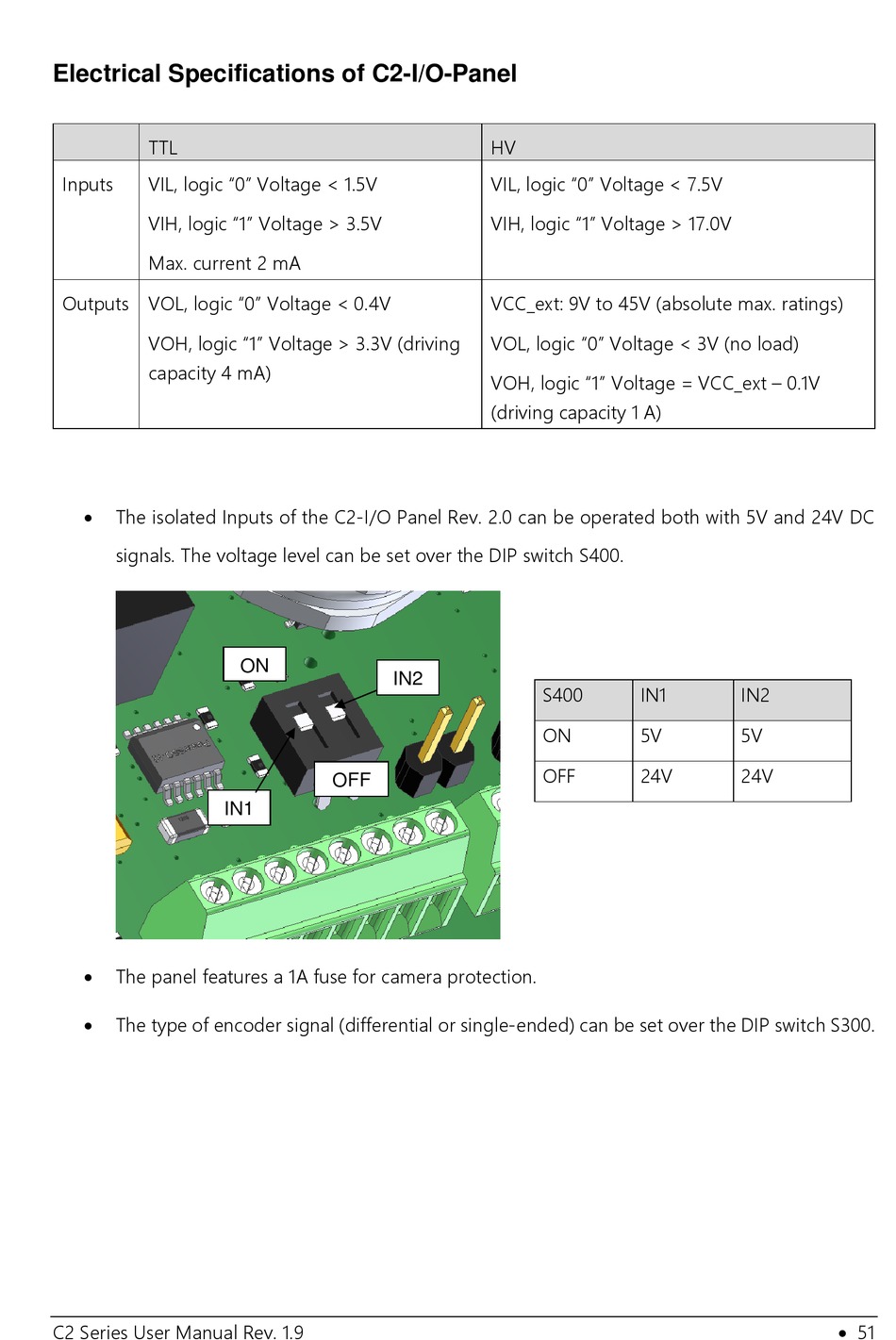

Electrical Specifications of C2-I/O-Panel

TTL
Inputs VIL, logic "0" Voltage < 1.5V
VIH, logic "1" Voltage > 3.5V
Max. current 2 mA
Outputs VOL, logic "0" Voltage < 0.4V
VOH, logic "1" Voltage > 3.3V (driving
capacity 4 mA)
The isolated Inputs of the C2-I/O Panel Rev. 2.0 can be operated both with 5V and 24V DC

signals. The voltage level can be set over the DIP switch S400.
The panel features a 1A fuse for camera protection.

The type of encoder signal (differential or single-ended) can be set over the DIP switch S300.

C2 Series User Manual Rev. 1.9
ON
IN2
OFF
IN1
HV
VIL, logic "0" Voltage < 7.5V
VIH, logic "1" Voltage > 17.0V
VCC_ext: 9V to 45V (absolute max. ratings)
VOL, logic "0" Voltage < 3V (no load)
VOH, logic "1" Voltage = VCC_ext – 0.1V
(driving capacity 1 A)
S400 IN1
ON 5V
OFF 24V
IN2
5V
24V
