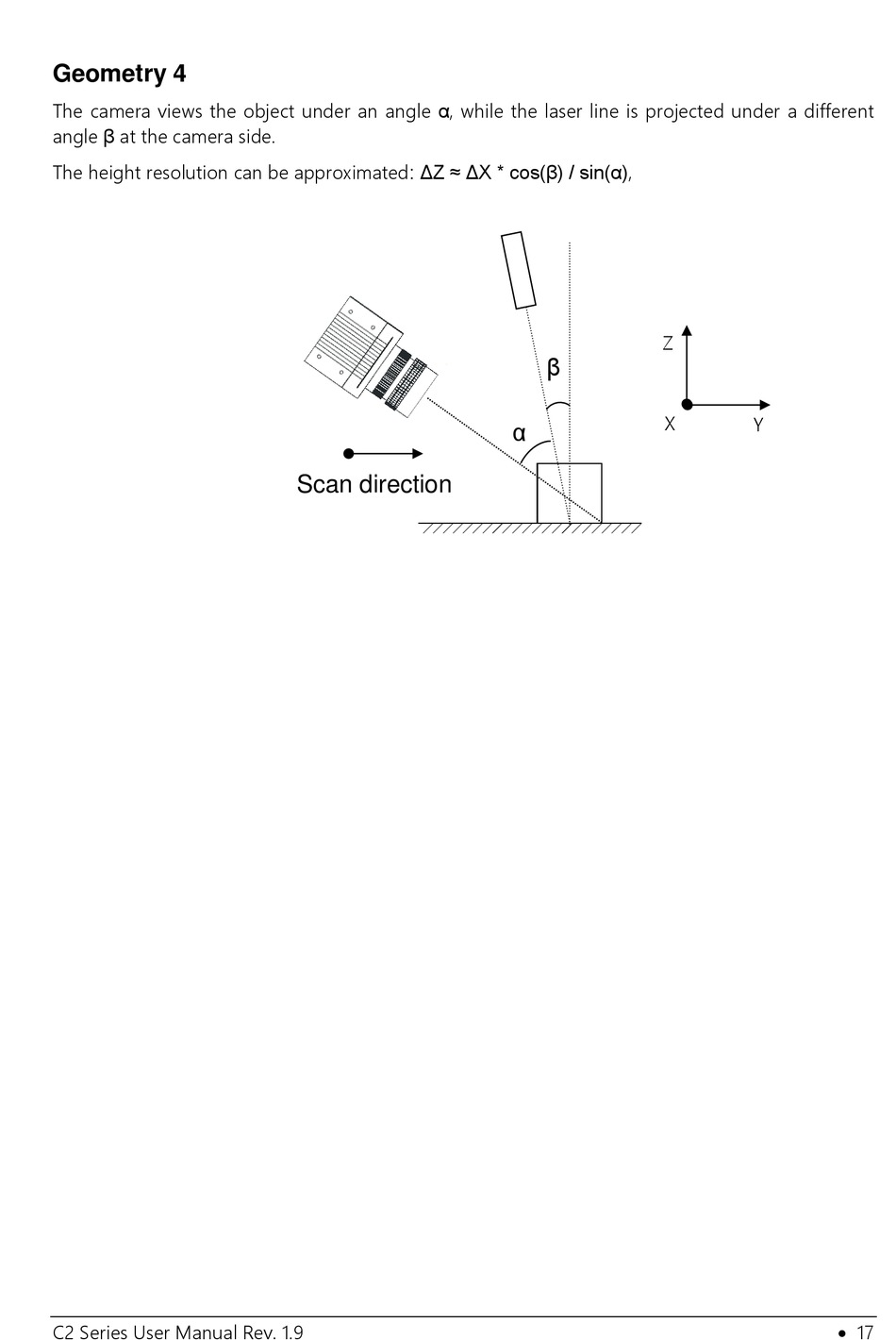

Geometry 4

The camera views the object under an angle α, while the laser line is projected under a different
angle β at the camera side.
The height resolution can be approximated: ΔZ ≈ ΔX * cos(β) / sin(α),
Z
β
X
Y
α
Scan direction
C2 Series User Manual Rev. 1.9  17
