4. Disassembling the valve
4.1 Fix the valve on the disassembly table !
4.2 Identify the valve using the rating plate:
A rating plate is fi tted on every control valve for identifi cation. In principle there are
two diff erent rating plates, their information content is however identical.
• Rating plate "Type IT" for pneumatic linear actuators with internal air conduction.
• Rating plate "Type PB" for pneumatic linear actuators with external air conduction.

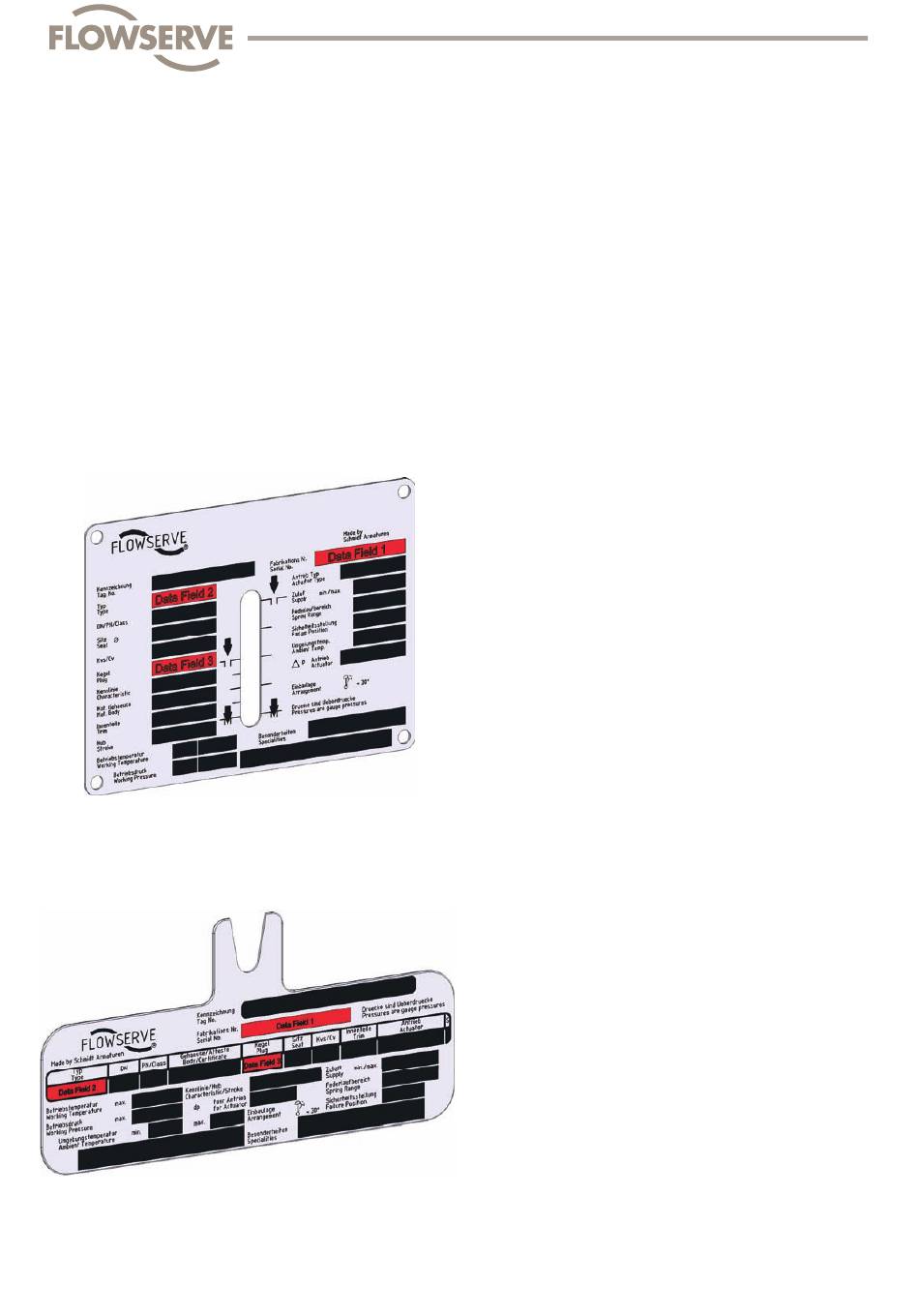

Rating plate "Type IT"
Rating plate "Type PB"
4
Data Field 1
The series number is in this fi eld. It is made up
e.g. as follows:
06078001001
06
06 = Calendar year 006
2 = Order ( 1 = Quotation )
078
= consecutive series number
001
= Item within the series number
001
= ascending quantity within the item
The series number and the "part" required must
always be quoted when ordering Spare Parts.
Alternatively you can order using the part no. in
the Spare Parts List at your own risk.
Telephone: 0043 4242 41181 - 0
e-mail: schmidt@fl owserve.com
Data Field 2 and 3
These fi elds clearly identify the:
• Body Type
• Trim Type
• Bonnet Type
• Packing Type
marked in detail. This helps you to fi nd the steps
described at the end.
Schmidt Armaturen
AI - FlowTop
(Page 5)
(Page 30 - 32)
(Page 34 - 36)
(Page 61 - 62)
