Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 9

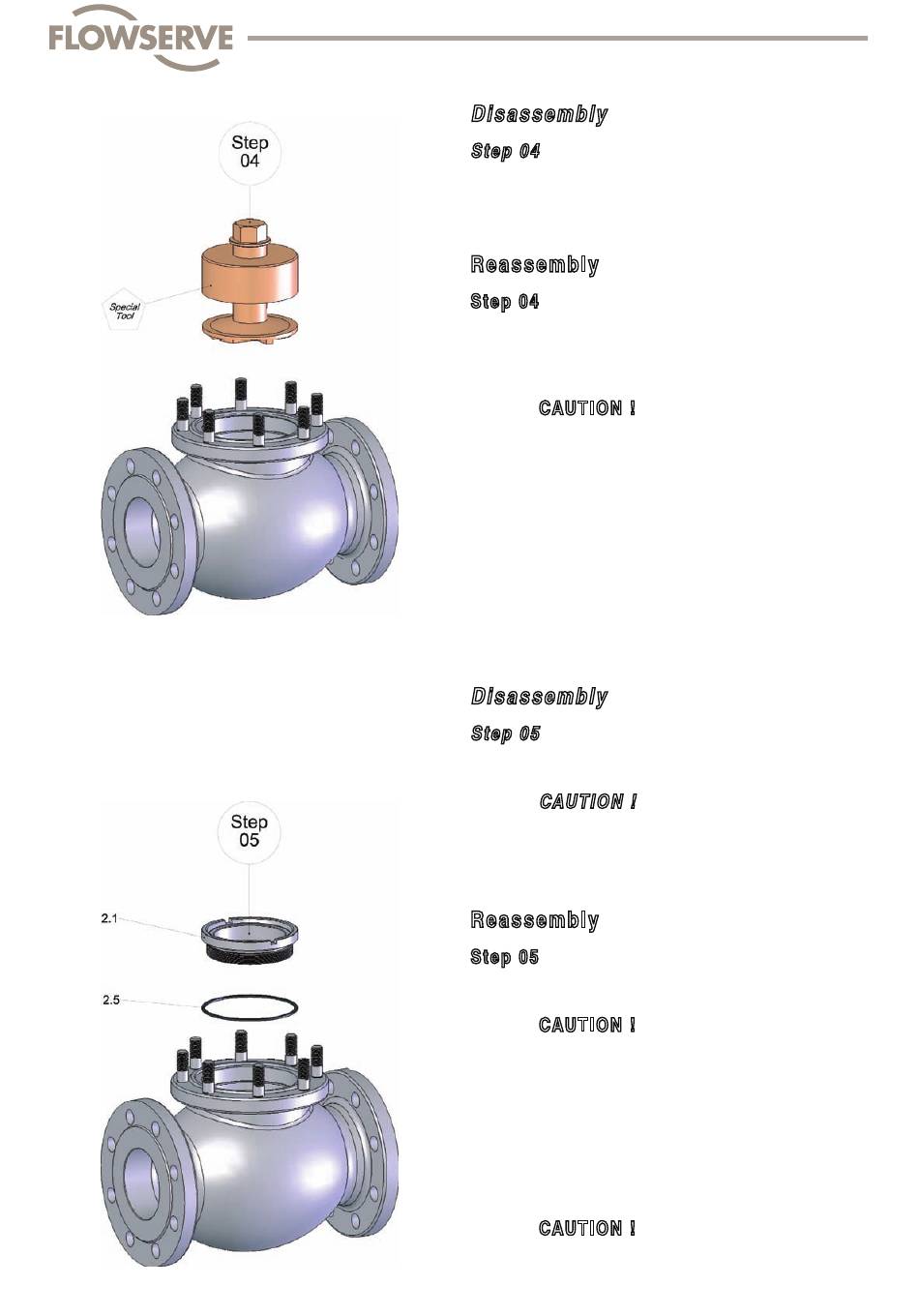

D is asse m bly
S t ep 04
• Insert Special Tool
(change seat - tool)
(Ensure that the pin clicks in place!)
suitable tool
R e asse m bly
S tep 04
• Insert Special Tool
(change seat - tool)
(Ensure that the pin clicks in place!)
torque wrench
CAUT ION !
Tightening moment for the screwed seat (2.1)
as per Table 02 (Page 64).
D is asse m bly
S t ep 05
• Remove screwed seat (2.1) and profi le ring (2.5)
CAUT ION !
Remove profi le ring remains (2.5) in the body.
Do not damage sealing surface !
R e asse m bly
S tep 05
Reassembly takes place in reverse order.
CAUT ION !
Clean parts
Check screwed seat, thread in the body and
sealing surface for damage.
Use new profi le ring (2.5) !
• Insert profi le ring (2.5) in the body, grease the thread
screwed seat (2.1) and screw in by hand
CAUT ION !
Lubrication as per Table 06 (Page 65)
Schmidt Armaturen
AI - FlowTop
in the body
and remove using a
in the body
and tighten using the
9
