Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 15

D is asse m bly

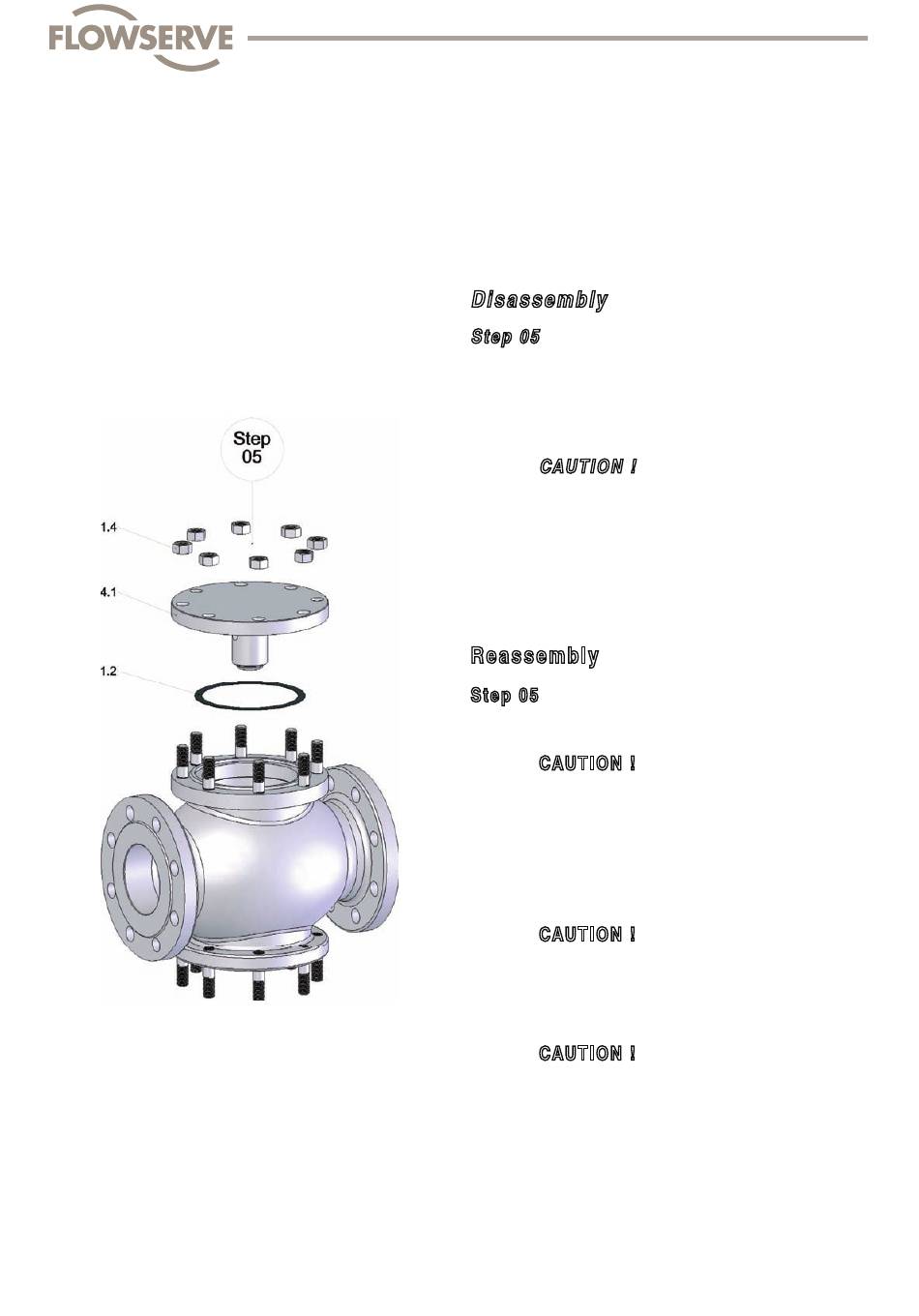

S t ep 05
• Turn body
• Unscrew hexagon nuts (1.4)
• Remove cover (4.1)
• Remove fl at gasket (1.2)
CAUT ION !
Remove remains of fl at gasket (1.2) in the body
and on the cover (4.1).
Do not damage sealing surface !
R e asse m bly
S tep 05
Reassembly takes place in reverse order.
CAUT ION !
Clean parts and check sealing surfaces for damage.
Use new fl at gasket (1.2) !
• Lay fl at gasket (1.2) in the body
• Put cover in place (4.1).
• Grease stud screws
CAUT ION !
Lubrication as per Table 06 (Page 65)
• Screw hexagon nuts in place (1.4) and tighten in a
diagonally opposite sequence using the torque wrench
CAUT ION !
Nut tightening moment (1.4)
as per Table 01 (Page 64)
