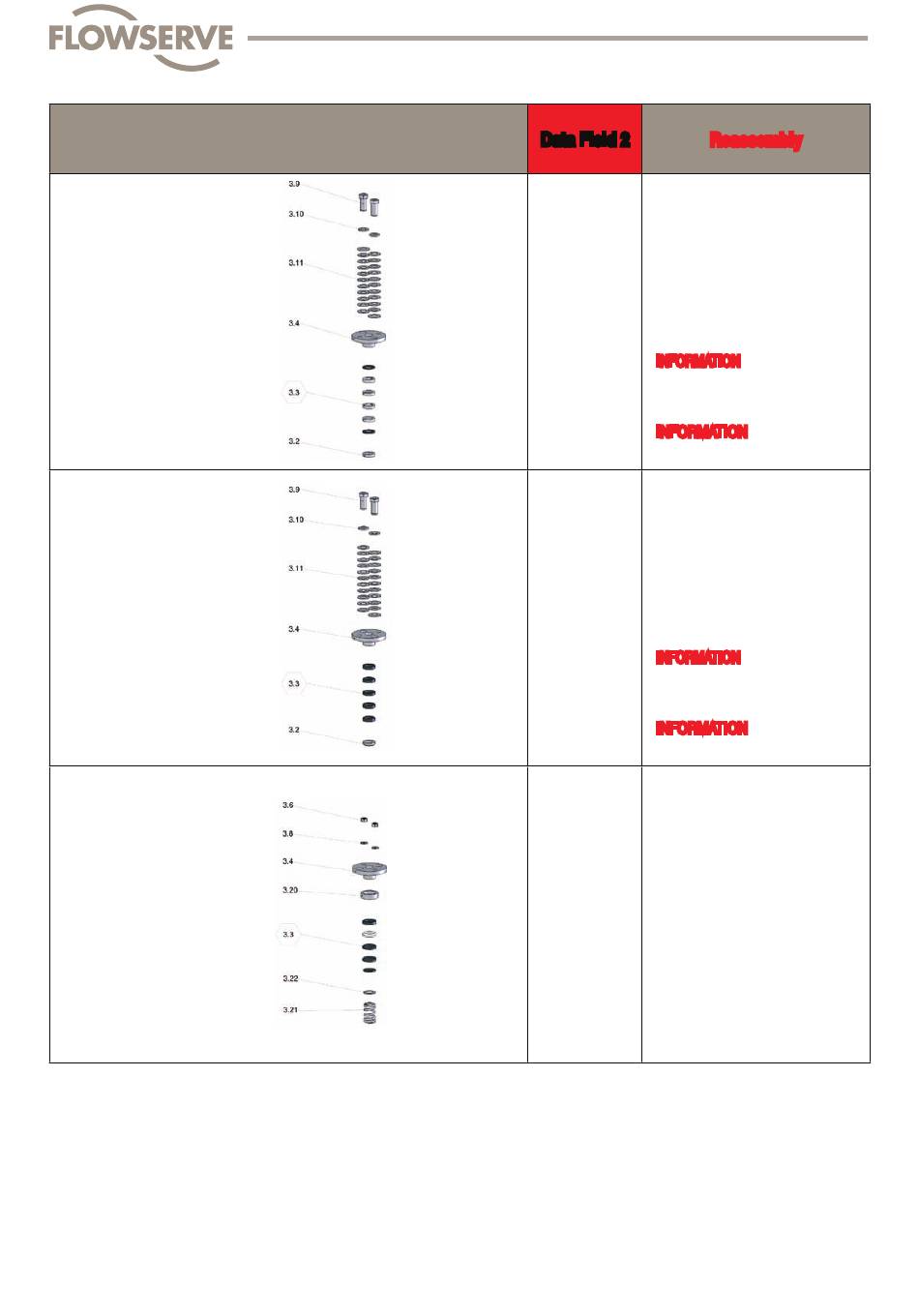

Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 62

Tefl on Packing
"TA-Luft"
Graphite Packing
"TA-Luft"
Tefl on
V-Ring Packing
6
Packing Type Data Field 2 Reassembly
3. Bottom ring
3.3 Packing
3.4 Gland fl ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
V7xx xxxxQ
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
INFORMATION Page 63
3. Bottom ring
3.3 Packing
3.4 Gland fl ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
V7xx xxxxV
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
INFORMATION Page 63
3.1 Compression spring
3. Disc
3.3 Packing
3.0 Space bush
3.4 Gland fl ange
V7xx xxxxS
3.8 Washers
3.6 Hexagon nuts
insert in the sequence shown.
Tighten gland nuts (3.6) to lock.
Schmidt Armaturen
AI - FlowTop
