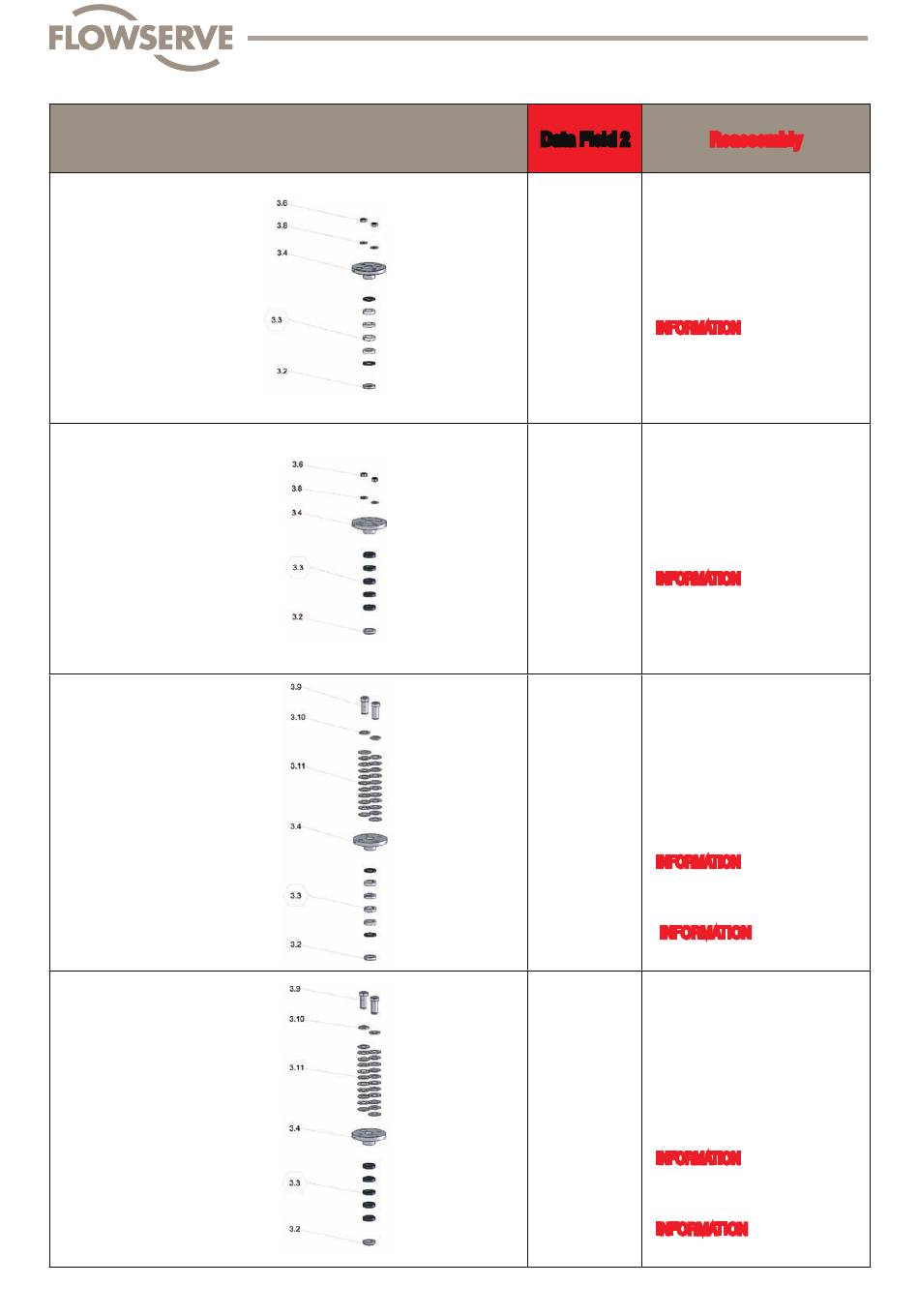

Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 61

Tefl on Packing
Graphite Packing
Tefl on Packing
spring loaded
Graphite Packing
spring loaded
Packing Type Data Field 2 Reassembly
3. Bottom ring
3.3 Packing
3.4 Gland fl ange
3.8 Washers
3.6 Hexagon nuts
V7xx xxxxA
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
Table 05 Page 65
3. Bottom ring
3.3 Packing
3.4 Gland fl ange
3.8 Washers
3.6 Hexagon nuts
V7xx xxxxB
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
Table 05 Page 65
3. Bottom ring
3.3 Packing
3.4 Gland fl ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
V7xx xxxxN
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
INFORMATION Page 63
3. Bottom ring
3.3 Packing
3.4 Gland fl ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
V7xx xxxxO
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for gland
nuts (3.6) as per
INFORMATION Page 63
Schmidt Armaturen
AI - FlowTop
61
