Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 7

Thr ee F l an g e Va lve
SPM - Code : V7xx DxVNA

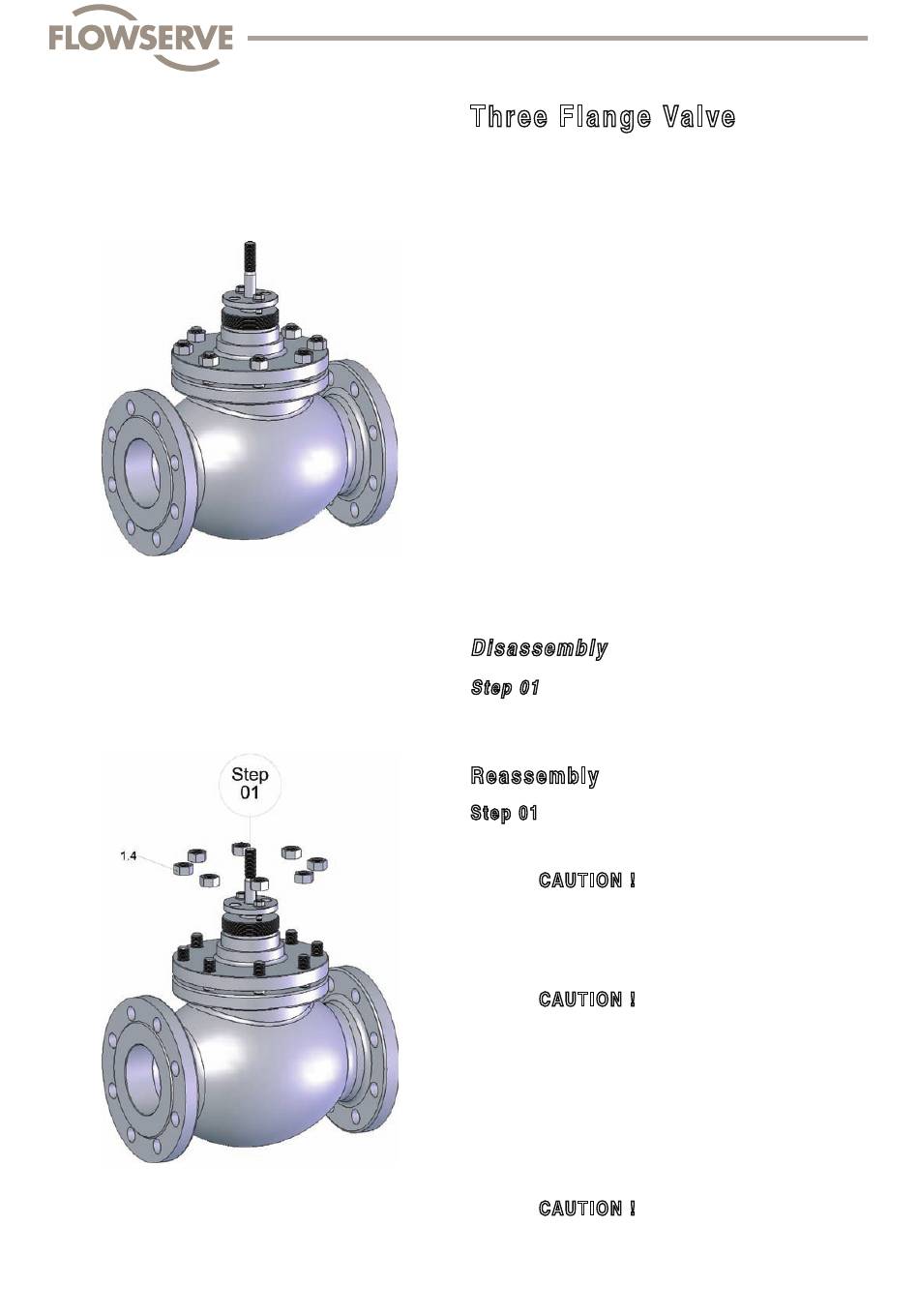

D is asse m bly
S t ep 01
• Unscrew hexagon nuts (1.4)
R e asse m bly
S tep 01
• Grease stud screws
CAUT ION !
Lubrication as per Table 06 (Page 65)
• Screw hexagon nuts in place (1.4) and tighten in a
diagonally opposite sequence using the torque wrench
CAUT ION !
Nut tightening moment (1.4)
as per Table 01 (Page 64)
When tightening the nuts pay attention to the
alignment of the plug ( do not rub or insert the
plug in the open / closed movement )
• Tighten the hexagon nuts of the gland (3.6)
using the torque wrench
CAUT ION !
Tightening moment of the hexagon nuts (3.6)
as per Variant drawing (Page 61 - 63)
Schmidt Armaturen
AI - FlowTop
7
