Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 19

D is assa m bly

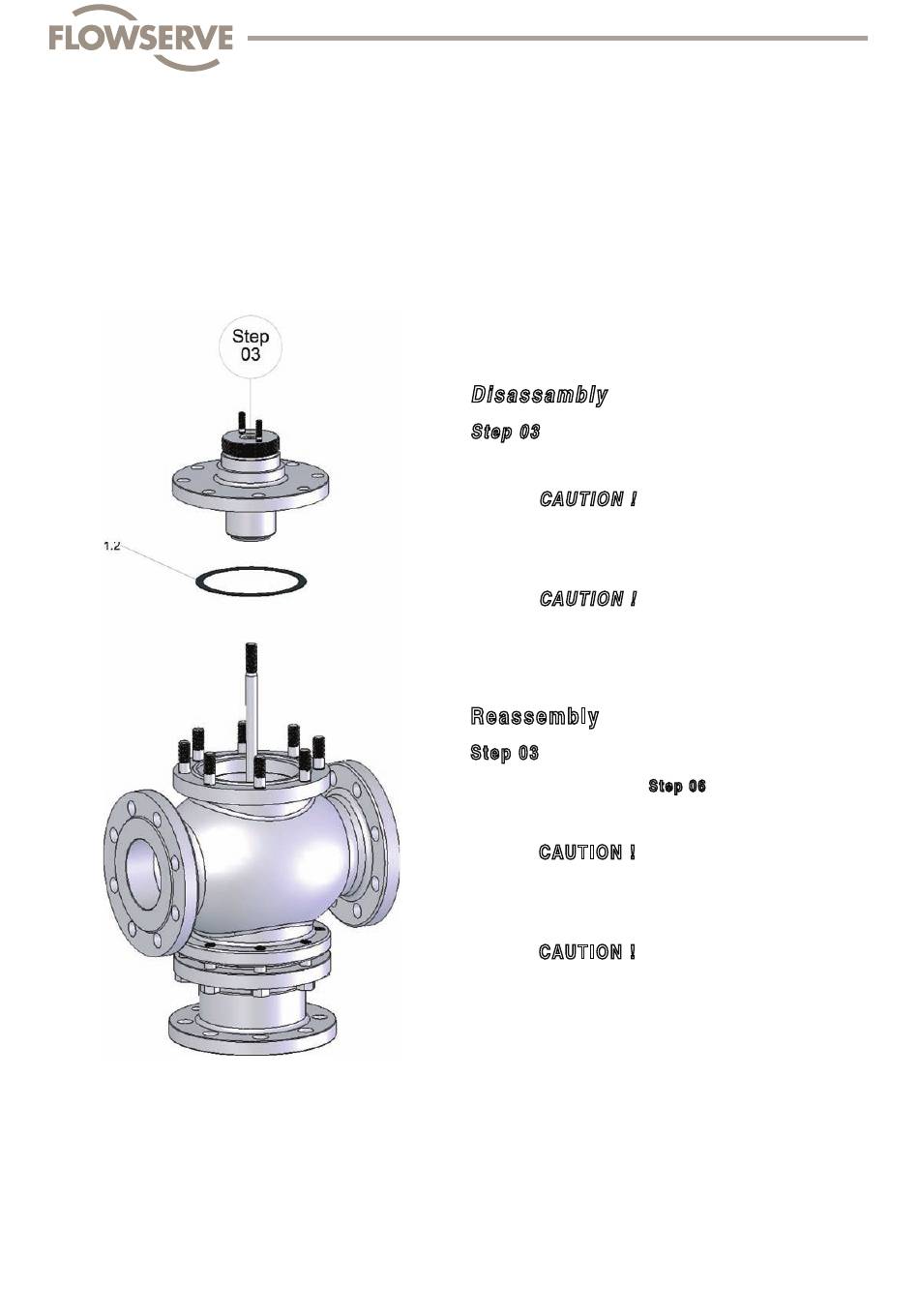

S t ep 03
• Lift bonnet off
CAUT ION !
Do not damage stem surface !
• Remove fl at gasket (1.2)
CAUT ION !
Remove remains of fl at gasket (1.2) in the body
and on the bonnet.
Do not damage sealing surface !
R e asse m bly
S tep 03
After work step "Reassembly"
• Insert fl at gasket (1.2)
CAUT ION !
Use new fl at gasket (1.2) !
• Put cover in place
CAUT ION !
Do not damage stem surface !
Schmidt Armaturen
AI - FlowTop
S tep 06
19
