Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 38

38

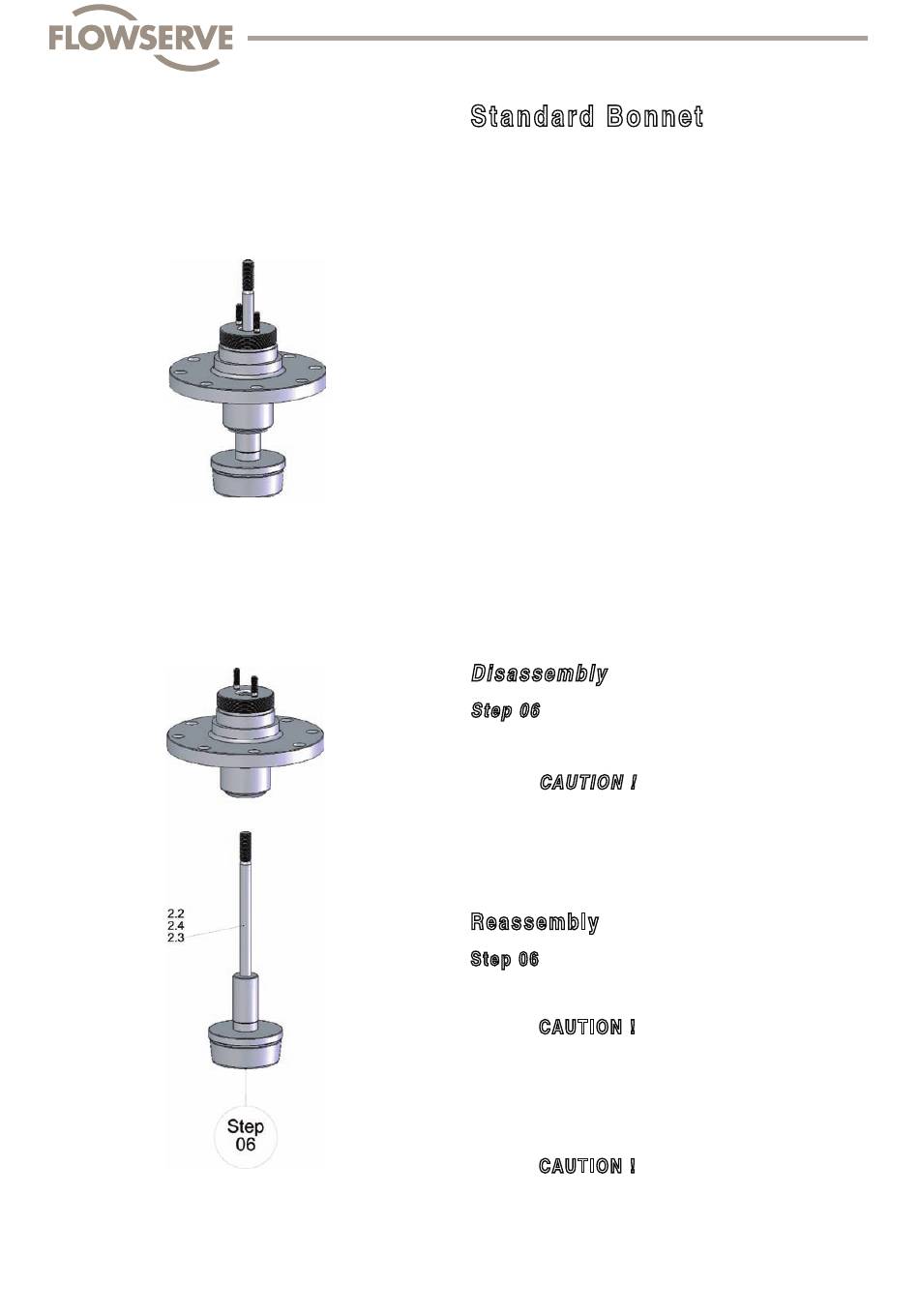

S t a n dard Bon net
SPM - Code : V7xx xxVNx
D is asse m bly
S t ep 06
• Remove plug unit (2.2, 2.3, 2.4) from the bonnet
CAUT ION !
Do not damage high quality stem surface
and plug guide !
R e asse m bly
S tep 06
Reassembly takes place in reverse order.
CAUT ION !
Clean parts and check sealing surfaces
for damage
• Grease plug shaft lightly and insert in the bonnet
CAUT ION !
Lubrication as per Table 06 (Page 65)
Do not grease stem !
