XStream
XStream
XStream
XStream

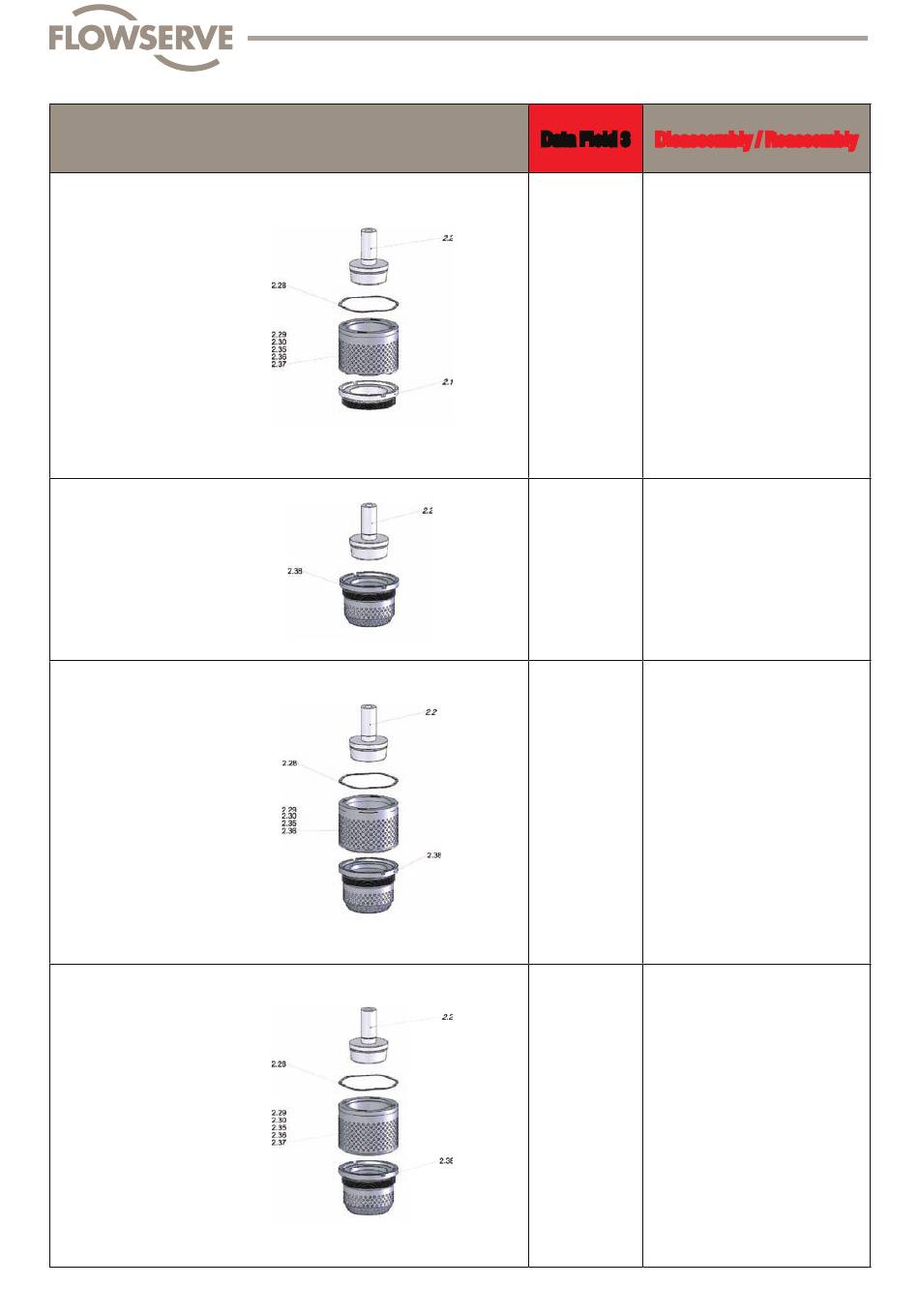

Trim Type
Data Field 3
Disassembly / Reassembly
Disassembly / Reassembly
2.1 Screwed seat
. Plug
as described, additionally
however
PGxx1xx
2.29 Internal ring
PHxx1xx
.30 Space bush
.35 Perforated cage 1
.36 Perforated cage
.37 Perforated cage 3
.8 Pressure spring
insert in the sequence shown !
Disassembly / Reassembly
.38 Perforated seat cage
PIxx1xx
. Plug
as described !
Disassembly / Reassembly
.38 Perforated seat cage
. Plug
as described, additionally
however
PQxx1xx
2.29 Internal ring
.30 Space bush
.35 Perforated cage 1
.36 Perforated cage
.8 Pressure spring
insert in the sequence shown !
Disassembly / Reassembly
.38 Perforated seat cage
. Plug
as described, additionally how-
ever
PWxx1xx
2.29 Internal ring
.30 Space bush
.35 Perforated cage 1
.36 Perforated cage
.37 Perforated cage 3
.8 Pressure spring
insert in the sequence shown !
Schmidt Armaturen
AI - FlowTop
31
