Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 14

14

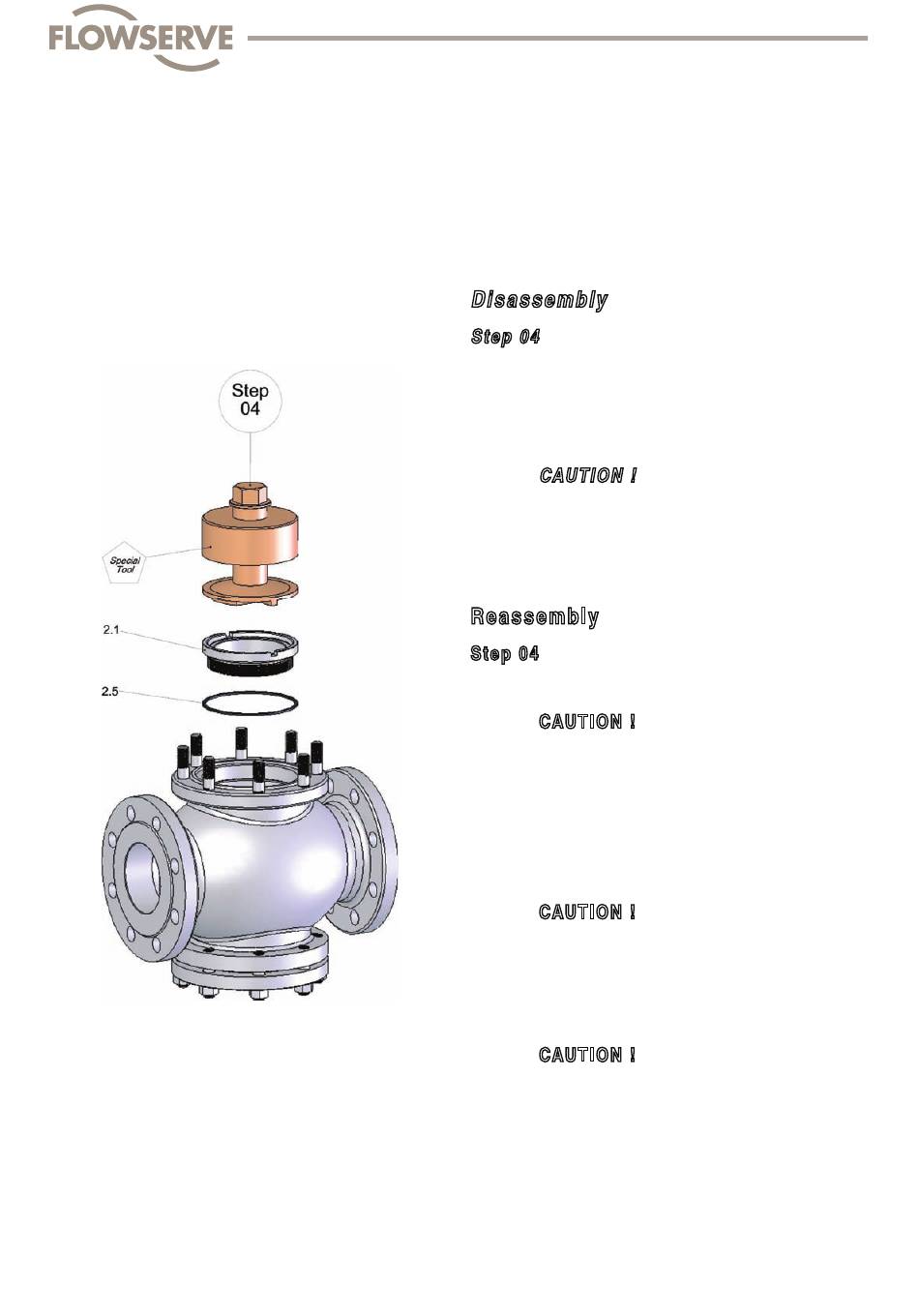

D is asse m bly
S t ep 04
• Insert Special Tool
(change seat - tool)
(Ensure that the pin clicks in place !)
suitable tool
• Remove screwed seat (2.1) and profi le ring (2.5)
CAUT ION !
Remove profi le ring remains (2.5) in the body.
Do not damage sealing surface !
R e asse m bly
S tep 04
Reassembly takes place in reverse order.
CAU T ION !
Clean parts and screwed seat, check thread in the
body and sealing surface for damage
Use new profi le ring (2.5) !
• Insert profi le ring (2.5) in the body, grease the thread
on the screwed seat (2.1) and screw in by hand
CAU T ION !
Lubrication as per Table 06 (Page 65)
• Insert Special Tool
(change seat - tool)
(Ensure that the pin clicks in place !)
torque wrench
CAU T ION !
Tightening moment for the screwed seat (2.1)
as per Table 02 (Page 64)
Schmidt Armaturen
AI - FlowTop
in the body
and remove using a
in the body
and tighten using the
