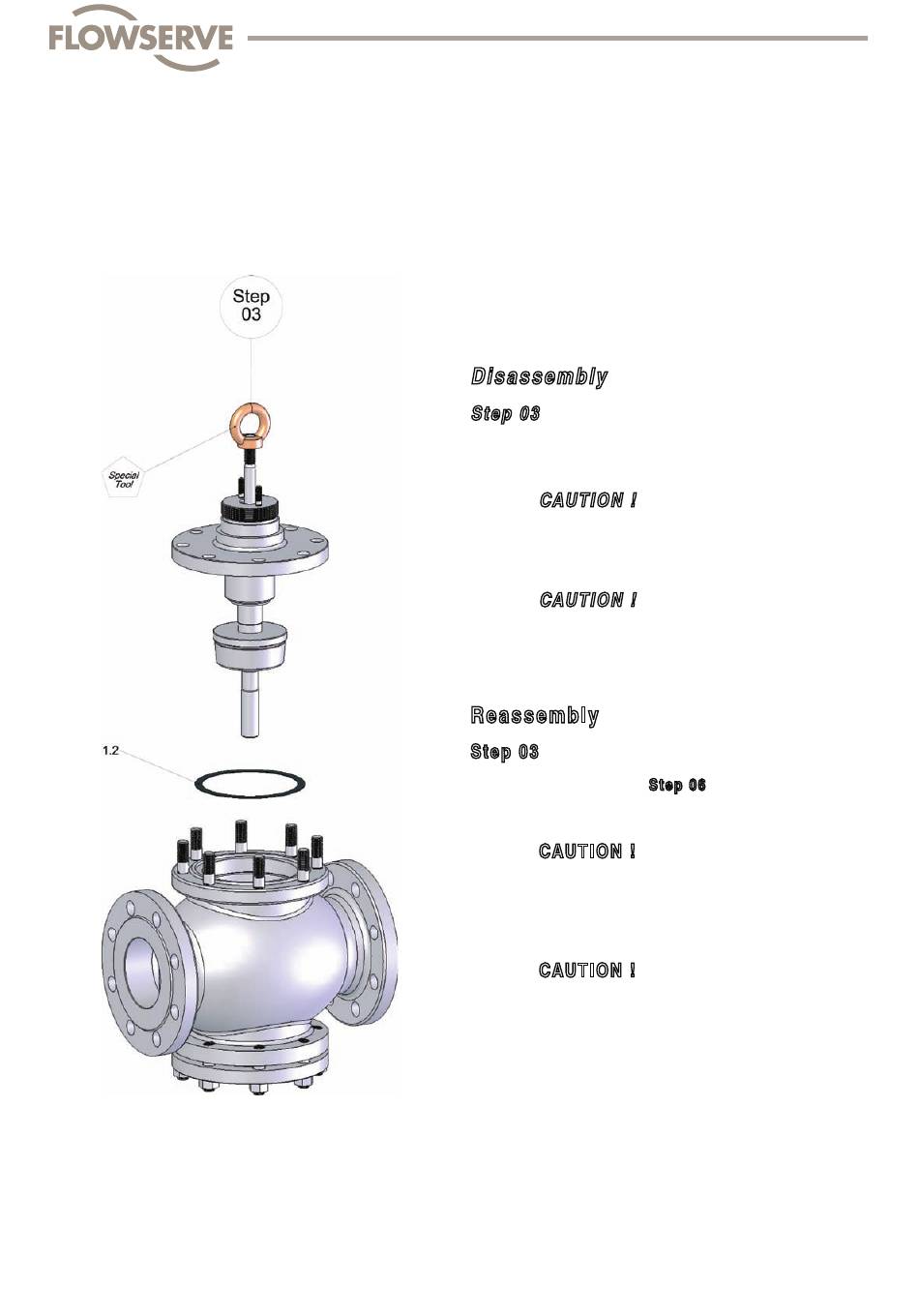

Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 13

D is asse m bly
S t ep 03
• Twist Special Tool
(Ring-nut)
and put in place slowly
CAUT ION !
Ensure it hangs vertically !
• Remove fl at gasket (1.2)
CAUT ION !
Remove remains of fl at gasket (1.2) in the body
and on the bonnet.
Do not damage sealing surface !
R e asse m bly
S tep 03
After work step "Reassembly"
• Insert fl at gasket (1.2)
CAUT ION !
Use new fl at gasket (1.2) !
• Twist Special Tool
(Ring-nut)
and put in place slowly
CAUT ION !
Ensure it hangs vertically !
Schmidt Armaturen
AI - FlowTop
on the stem
S tep 06
on the stem
13
